097C1289

Part Number: 097C1289
097C1289
Manufacturer
Danfoss
Part number
097C1289
Category

Product Information

Extended Description

097C1289 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 440-480V Y/YY -3- 60Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: No, Legacy BOCK ID: 11497
Gross weight
323.322 Kilogram
Net weight
301.522 Kilogram
Volume
428.8 Liter
EAN
5715162620939
Anti-vibration pads
No
Applications
MBP,HBP
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
440-480V Y/YY -3- 60Hz PW
Contain batteries
No
Cylinder
6
Description

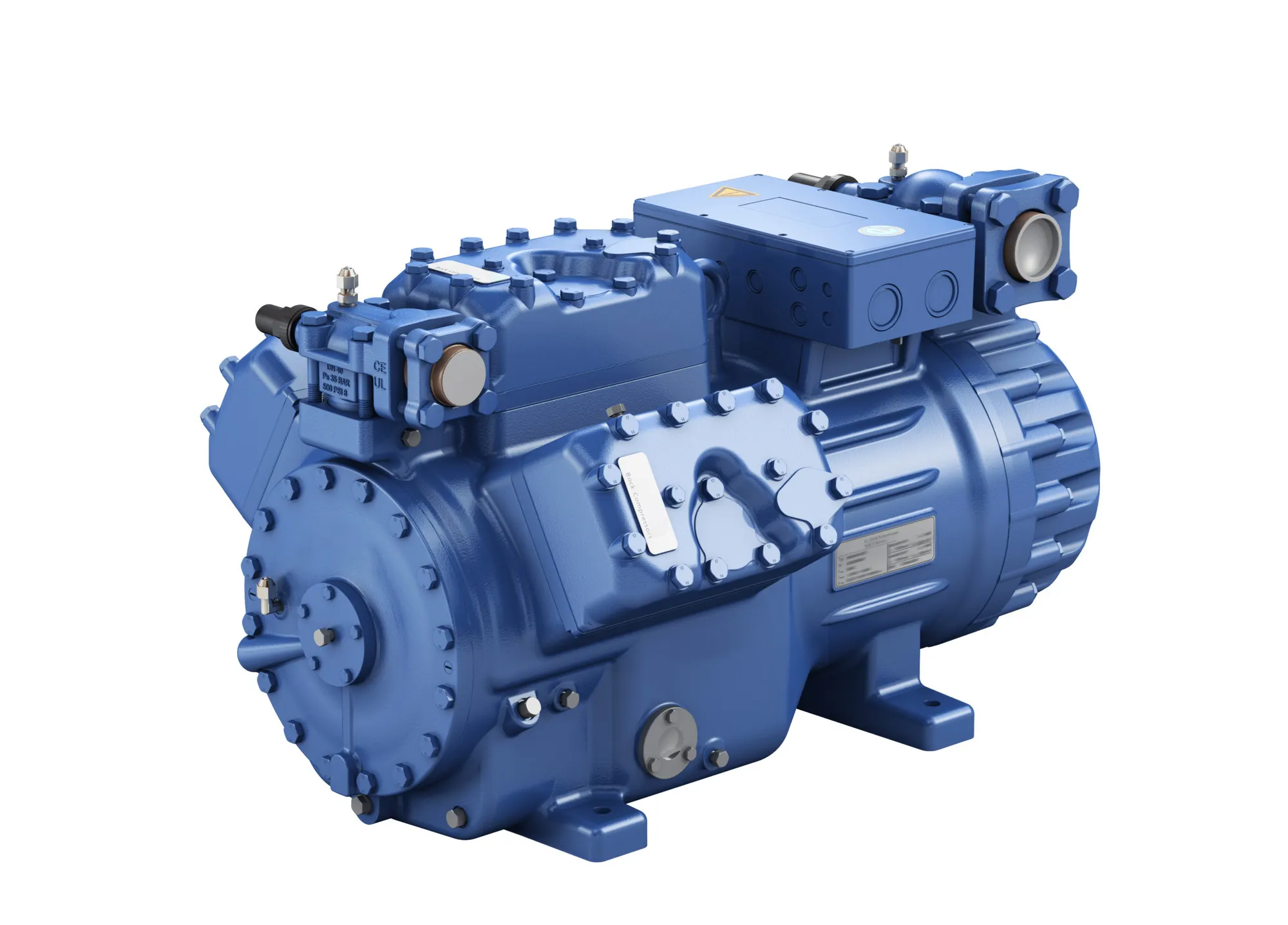

Compressor HGX66e/2070-4 S
Discharge connection size [in]
1 5/8 in
Discharge connection size [mm]
42 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
60
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
11497
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX66e/2070-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil service valve
No
Oil sump heater
220-240V AC
Oil temperature sensor
No
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p (CAS no. 119-47-1)
Refrigerants
R407A,R407F,R448A,R449A,R404A,R134a,R407C,R450A,R452A,R513A
SCIP dossier no.
ae7fa46f-0bd9-4ddc-a150-413a0a3f7f33
SCIP dossier product name
HG(X)66/.... - series
Step protection for CR/SU
No
Suction connection size [in]
2 5/8 in
Suction connection size [mm]
64 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
HGX66e
Type designation
HGX66e/2070-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69 GTML=C2=AE Diagnose INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection Torques for screwed connections Torques for screwed connections Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e Bock oil differential pressure sensor =CE=94P II BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG66e Semi-hermetic compressors, Reciprocating compressor HG, HG66e HG66e.STEP MC- HG66e, 11496 MC- HGX66e, 11496
