097C2139

Part Number: 097C2139
097C2139
Manufacturer
Danfoss
Part number
097C2139
Category

Product Information

Extended Description

097C2139 Danfoss: Refrigerants: R404A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 14416
Gross weight
369.848 Kilogram
Net weight
310.948 Kilogram
Volume
657.816 Liter
EAN
5715162615928
Anti-vibration pads
Yes
Applications
LBP
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6
Description

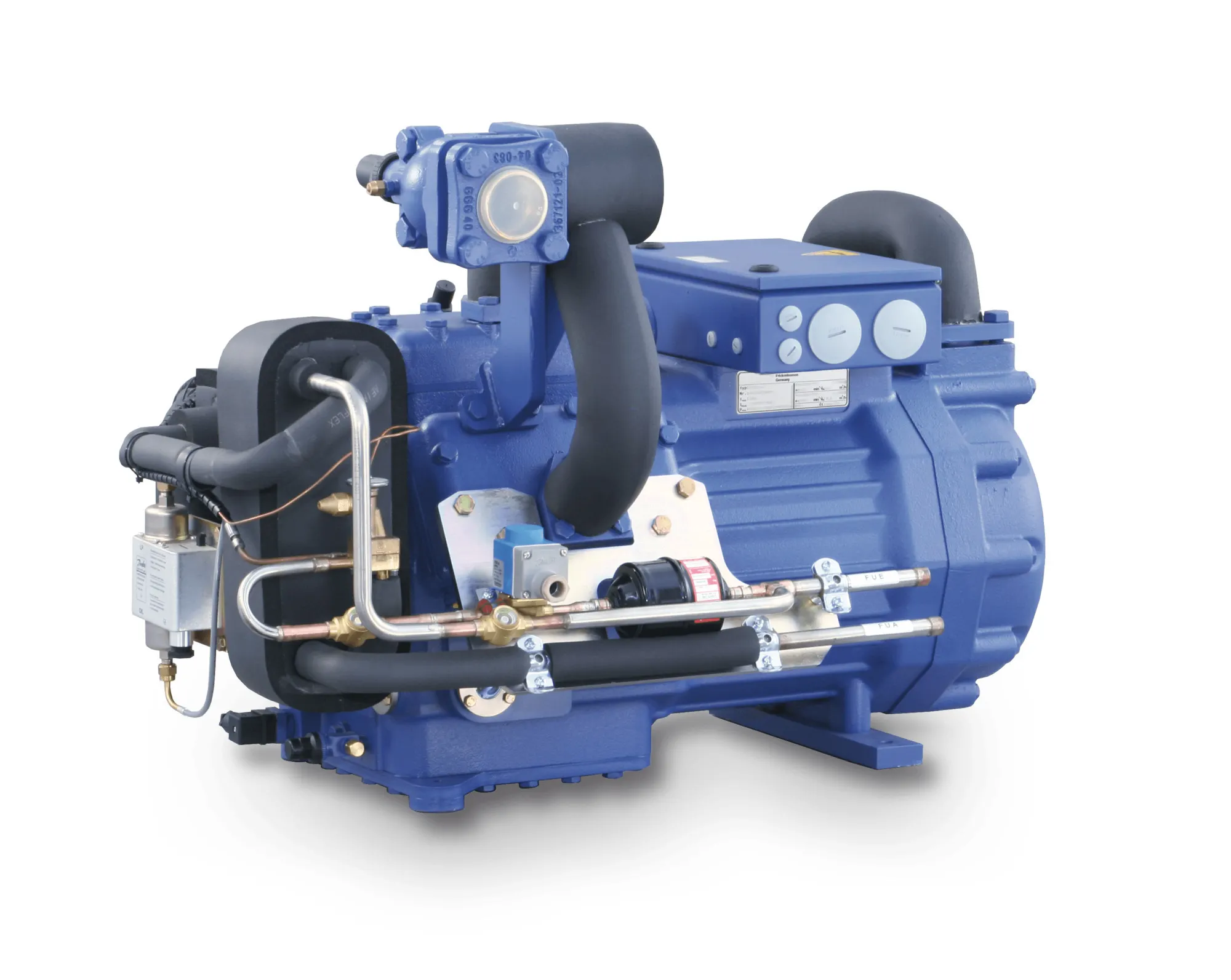

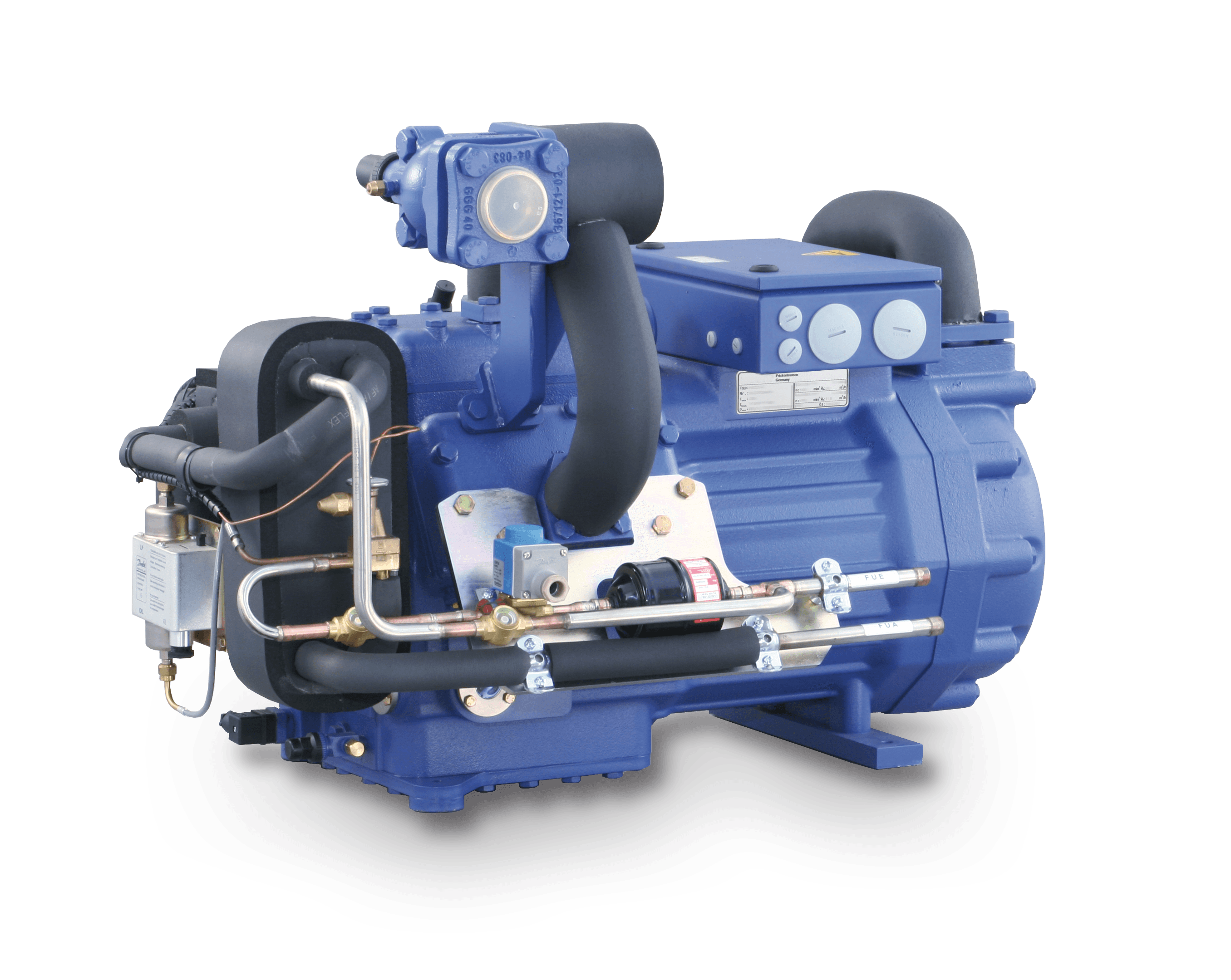

Compressor HGZX7/1860-4 R404A/R507
Discharge connection size [in]
1 3/8 in
Discharge connection size [mm]
35 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HGZ Two-stage Compressors
Frequency Hz
50
In scope of WEEE
No
IP class
IP 65
Legacy BOCK ID
14416
Liquid Subcooler
Mounted
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGZX7/1860-4 R404A/R507
Motor protection
MP10 230V AC
Oil differential pressure sensor
DELTA-P II 220-240V - 1 - 50/60 Hz
Oil pressure safety switch
No
Oil service valve
Yes
Oil sump heater
220-240V AC
Oil temperature sensor
Pt1000
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HGZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants
R404A
SCIP dossier no.
3674593f-79aa-4f32-a903-6f30873656a7
SCIP dossier product name
HG(Z)(X)7/=E2=80=A6. =E2=80=93 series
Suction connection size [in]
2 1/8 in
Suction connection size [mm]
54 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Two-stage compressor
Thermal protection thermostat
1
Type
HGZX7
Type designation
HGZX7/1860-4 R404A/R507
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Motor Protection MP 10 Electronic trigger device for semi-hermetic compressors Maximum permissible inclination for Bock compressors O-ring selection Torques for screwed connections Torques for screwed connections Bock oil differential pressure sensor =CE=94P II Bock oil pressure safety switch Information valve plate gasket Installation instructions for thermal protection thermostat (PTC) for HA/HG compressors Installation instructions terminal board for semi-hermetic compressors BOCK compressors HGZ7 MC- HGZ7/2110, 1.0854-14414.0 BL.1-4 MC- HGZ7/2110, 1.0854-14414.0 BL.1-4 MC- HGZ7/2110, 1.0854-14414.0 BL.1-4 14414-3-Danfoss HGZ7.STEP 14414-2-Danfoss 14414-2
