097C2248

Part Number: 097C2248
097C2248
Manufacturer
Danfoss
Part number
097C2248
Category

Product Information

Extended Description

097C2248 Danfoss: Refrigerants: R404A; R407C; R452A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E55, Anti-vibration pads: No, Legacy BOCK ID: 14555
Gross weight
56.259 Kilogram
Net weight
46.859 Kilogram
Volume
152.46 Liter
EAN
5715162644300
Anti-vibration pads
No
Applications
MBP,HBP
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
2
Description

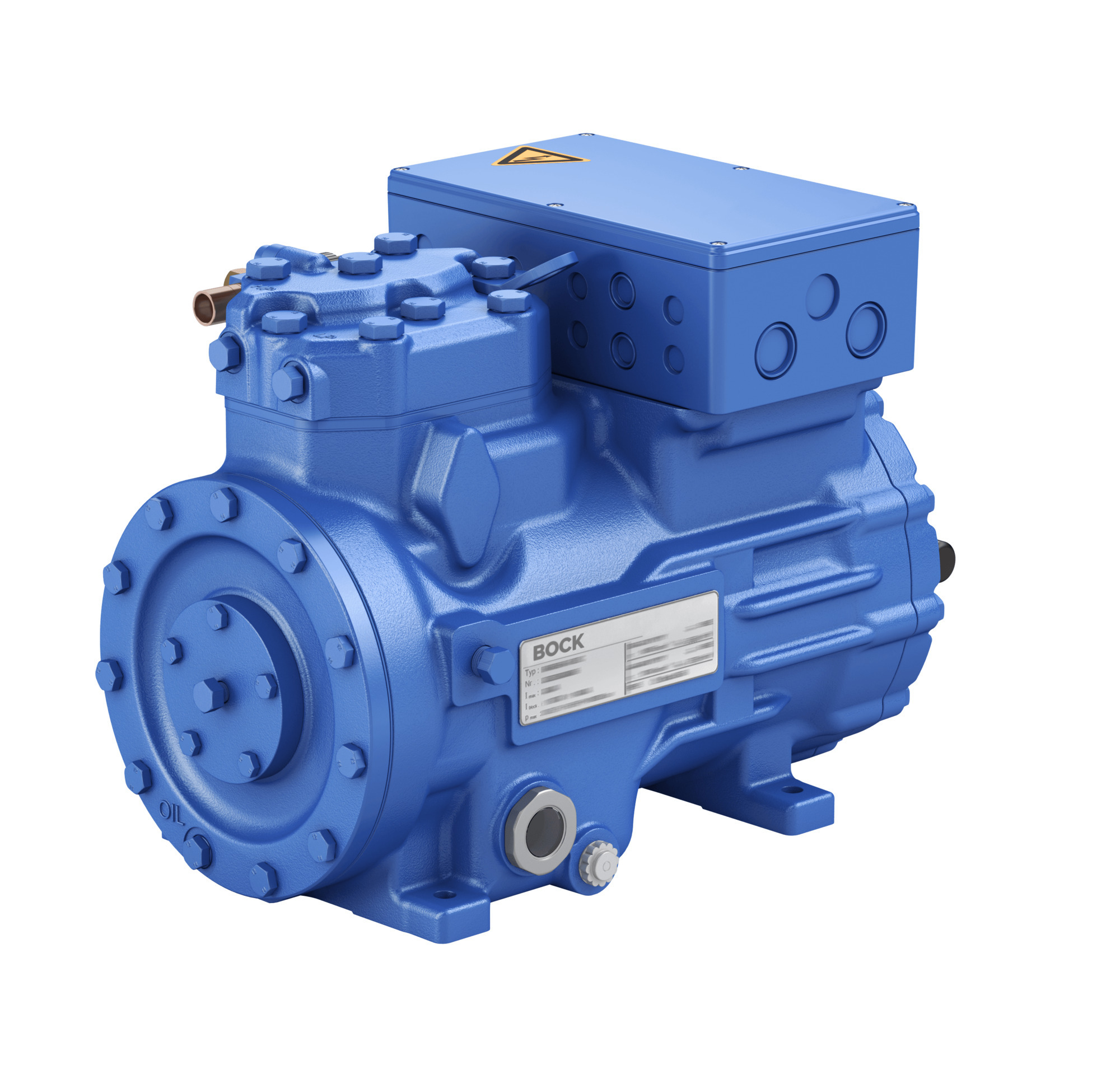

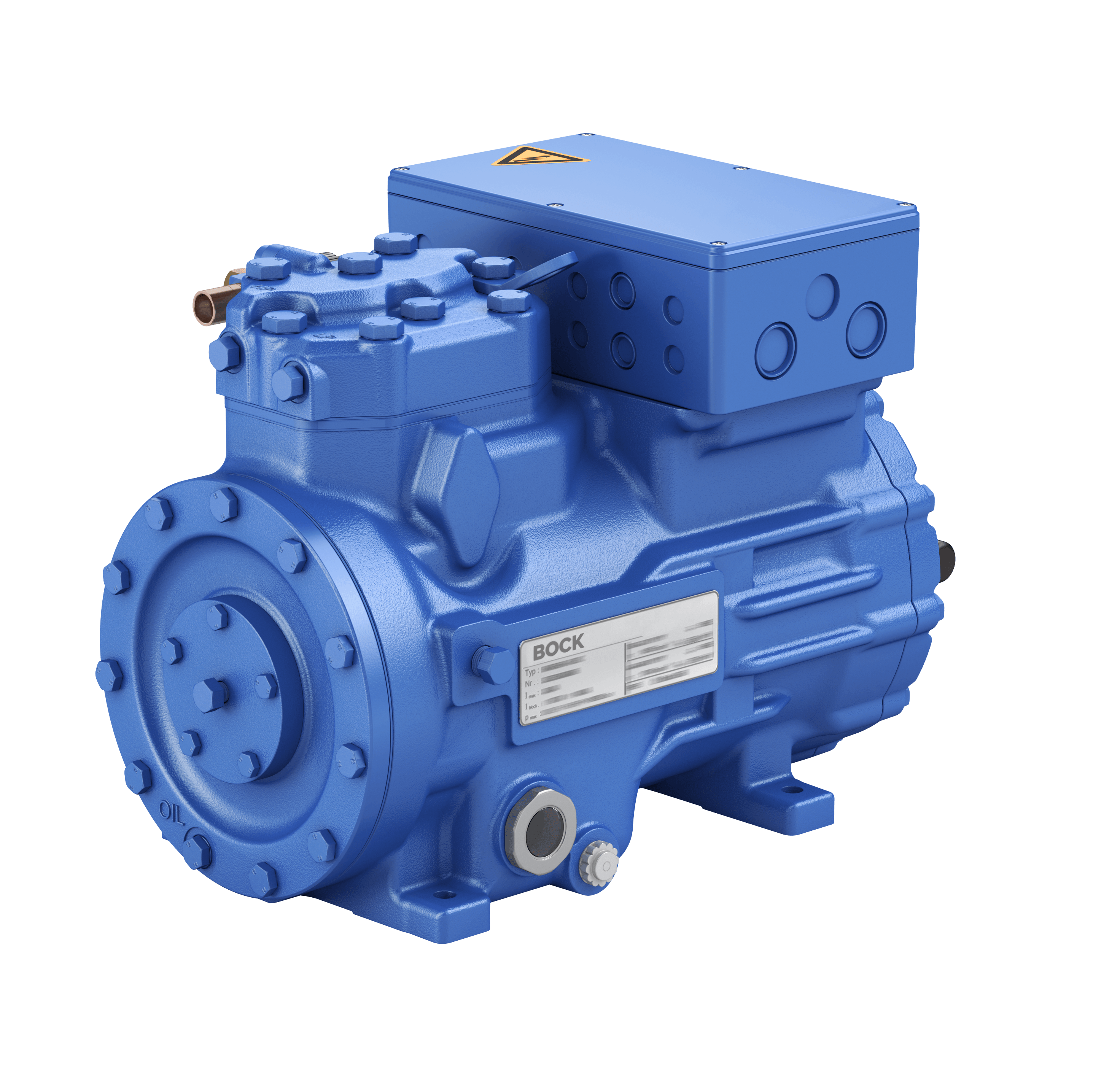

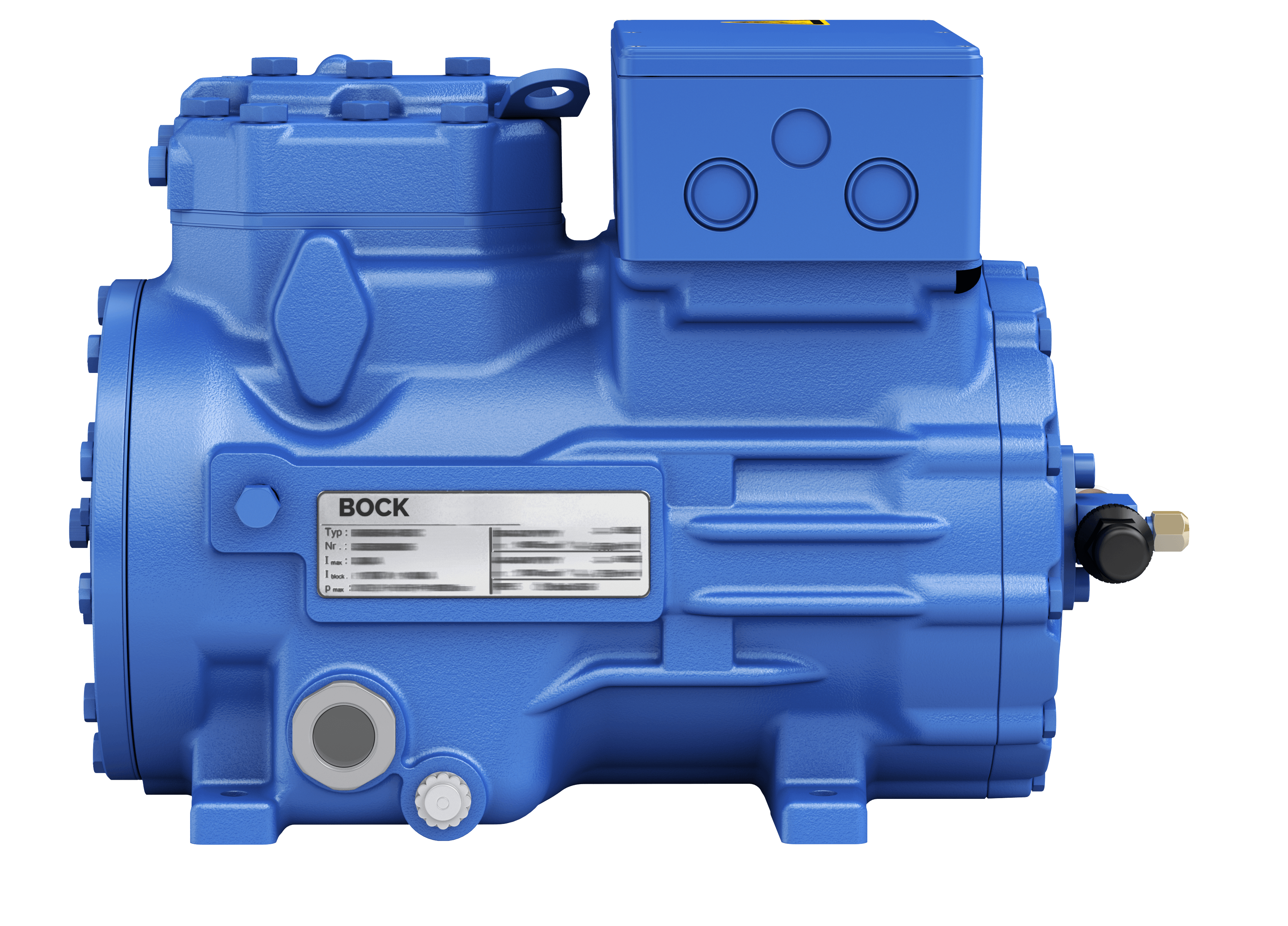

Compressor HGX12P/110-4 S
Discharge connection size [in]
1/2 in
Discharge connection size [mm]
12 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
14555
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX12P/110-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
No
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
SCIP dossier no.
bb70efe1-a42e-4e79-b905-4e324c30d6d0
SCIP dossier product name
HG(X)12/=E2=80=A6. - series
Suction connection size [in]
5/8 in
Suction connection size [mm]
16 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX12P
Type designation
HGX12P/110-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69 G=C2=AE Bock Maximum permissible inclination for Bock compressors O-ring selection Sound pressure level and sound power level in dB for HGX12P until HGX88e and HAX44e with R404A Torques for screwed connections Torques for screwed connections Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e Bock oil pressure safety switch Information oil sump heater BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HGX12P MC- HG12P, 14547 MC- HG12P, 14547 MC- HG12P, 14547 Semi-hermetic compressors, Reciprocating compressor HG, HGX12P HG12P.STEP MC- HG12P, 14547 MC- HG12P, 14547 MC- HG12P, 1.0850-14547.0 BL.1-4
