097C2431

Part Number: 097C2431
097C2431
Manufacturer
Danfoss
Part number
097C2431
Category

Product Information

Extended Description

097C2431 Danfoss: Refrigerants: R1270; R290, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub G68, Anti-vibration pads: No, Legacy BOCK ID: 14765
Gross weight
529.462 Kilogram
Net weight
470.562 Kilogram
Volume
657.816 Liter
EAN
5715162648544
Anti-vibration pads
No
Applications
MBP
Approval standard
No
Brand
BOCK
Capacity regulator
2x 230V AC,50/60Hz
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
8
Description

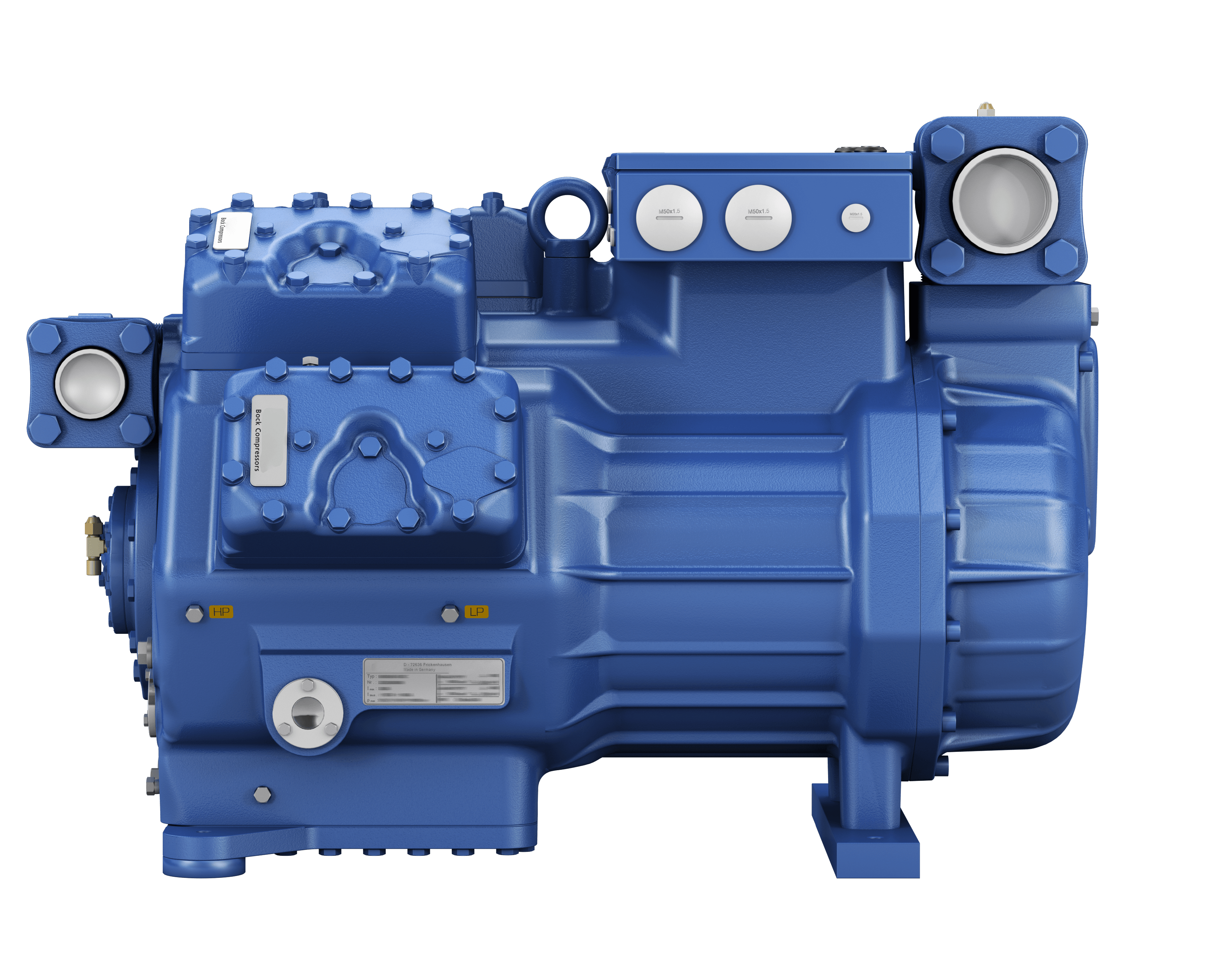

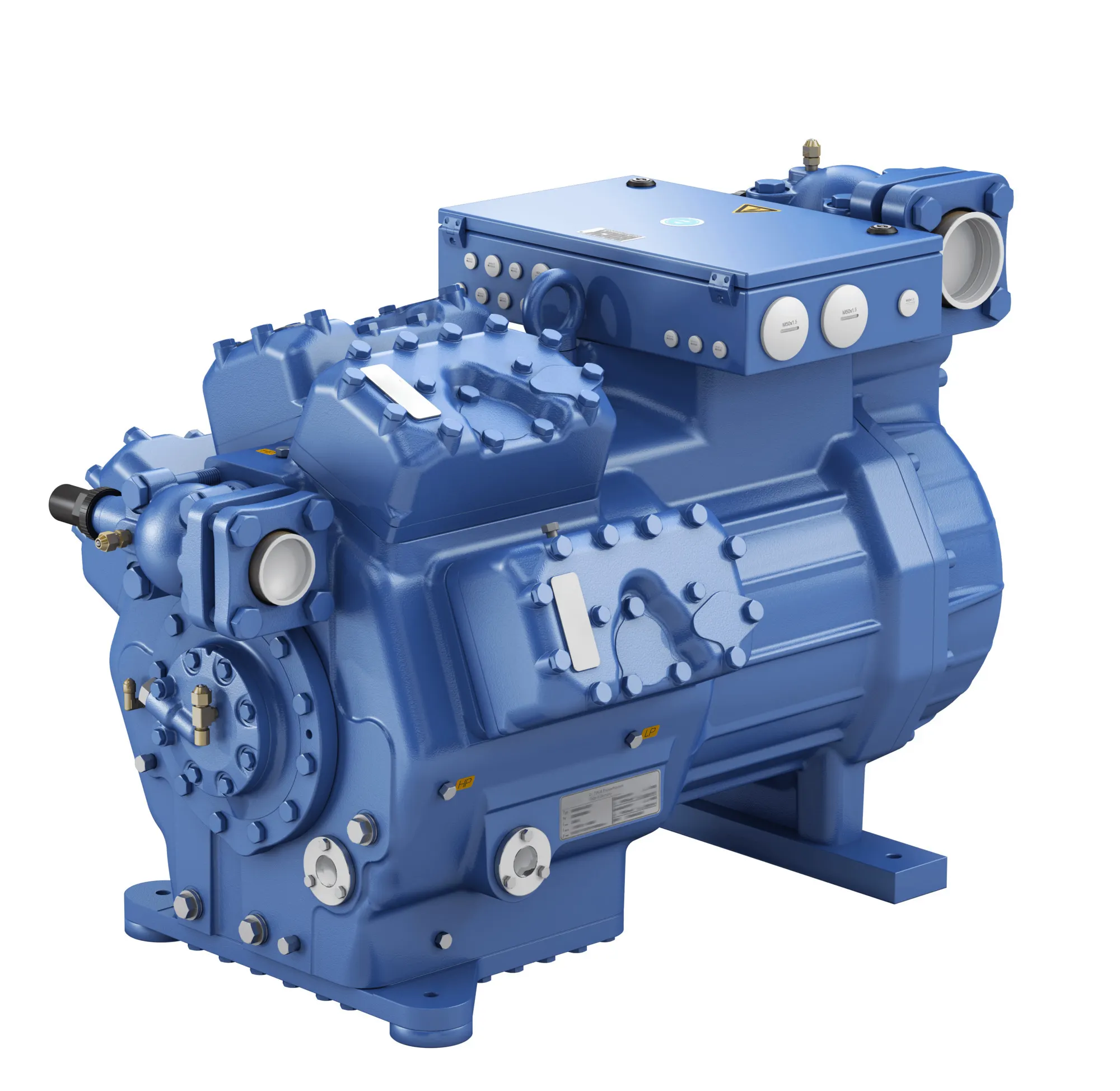

Compressor HG88e/2735-4 S HC
Discharge connection size [in]
2 1/8 in
Discharge connection size [mm]
54 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HC Compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
Intermediate flange/adapter
No
IP class
IP 65
Legacy BOCK ID
14765
Max pressure (PS) - high side
32 bar
Max pressure (PS) - low side
19 bar
Model number
HG88e/2735-4 S HC
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Mounting position capacity regulator
Serial position
Oil differential pressure sensor
DELTA-P II 220-240V - 1 - 50/60 Hz
Oil pressure safety switch
No
Oil service valve
Yes
Oil sump heater
220-240V AC
Oil temperature sensor
No
Oil type
BOCKlub G68
Phase
3
Position motor cover
Standard
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R290,R1270
Sound power @ 50Hz [db(A)]
89 dBA
Sound power @ 60Hz [db(A)]
89 dBA
Step protection for CR/SU
No
Suction connection size [in]
3 1/8 in
Suction connection size [mm]
76 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
4
Type
HG88e
Type designation
HG88e/2735-4 S HC
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Anti-vibration pads INT69 GTML=C2=AE Diagnose INT69 G=C2=AE Bock Maximum permissible inclination for Bock compressors O-ring selection One-third octave and Octave bands in dB for HG34e, HG44e, HG56e, HG66e and HG88e with R404A Torques for screwed connections Torques for screwed connections Assembly instruction for bearings semi-hermetic compressors Assembly instructions for set mexxFlow valve plate BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG88e MC- HG88e/2400-4 HC, 1.0850-14295.0 BL.1-4 Semi-hermetic compressors, Reciprocating compressor HG, HG88e HG88e.STEP MC- HG88e, 14295
