097C3210

Part Number: 097C3210
097C3210
Manufacturer
Danfoss
Part number
097C3210
Category

Product Information

Extended Description

097C3210 Danfoss: Refrigerants: R1270; R290, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub G68, Anti-vibration pads: No, Legacy BOCK ID: 16070
Gross weight
107.924 Kilogram
Net weight
98.524 Kilogram
Volume
152.46 Liter
EAN
5715162647608
Anti-vibration pads
No
Applications
MBP
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
4
Description

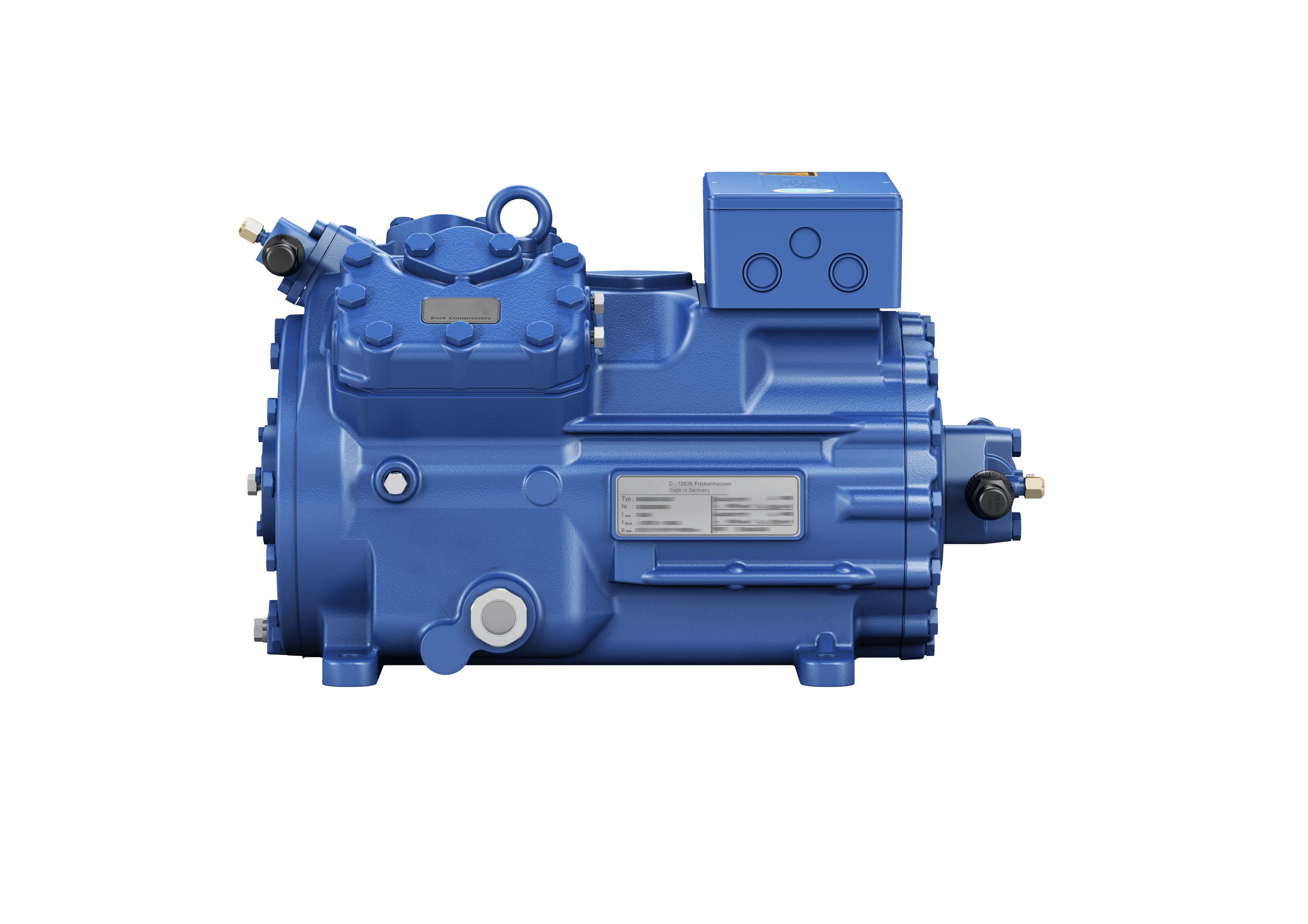

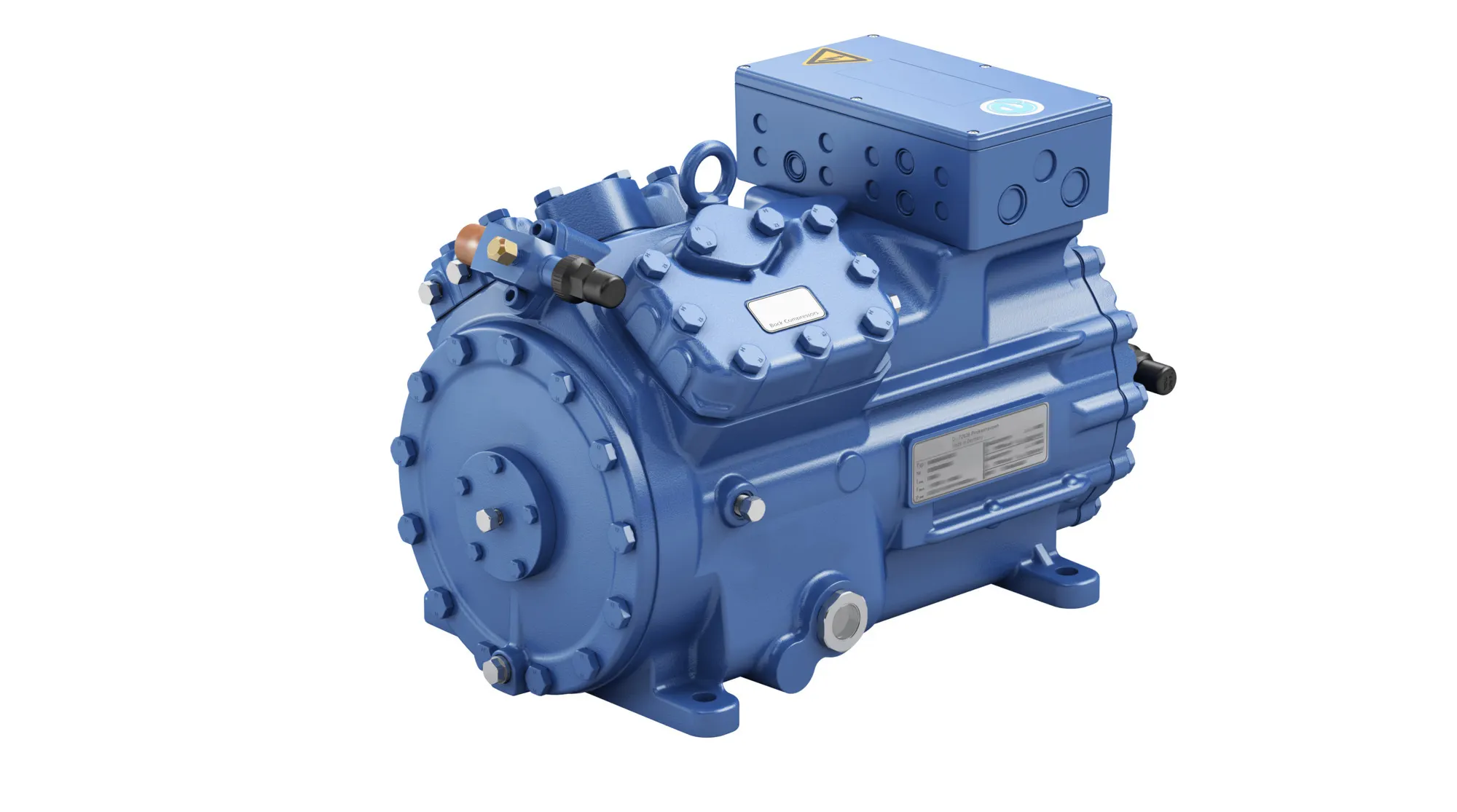

Compressor HG34e/215-4 S HC
Discharge connection size [in]
7/8 in
Discharge connection size [mm]
22 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HC Compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16070
Max pressure (PS) - high side
32 bar
Max pressure (PS) - low side
19 bar
Model number
HG34e/215-4 S HC
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
110-240V AC
Oil type
BOCKlub G68
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants
R1270,R290
SCIP dossier no.
60e852d2-90d1-42cc-828d-974bed584935
SCIP dossier product name
HG/HA(X)34/=E2=80=A6. - series
Sound power @ 50Hz [db(A)]
69 dBA
Sound power @ 60Hz [db(A)]
69 dBA
Step protection for CR/SU
No
Suction connection size [in]
1 1/8 in
Suction connection size [mm]
28 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
HG34e
Type designation
HG34e/215-4 S HC
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Anti-vibration pads INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection One-third octave and Octave bands in dB for HG34e, HG44e, HG56e, HG66e and HG88e with R404A Torques for screwed connections Torques for screwed connections Assembly instruction adaptor plate Assembly instruction orifice for liquid injection BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG34e Semi-hermetic compressors, Reciprocating compressor HG, HG34e
