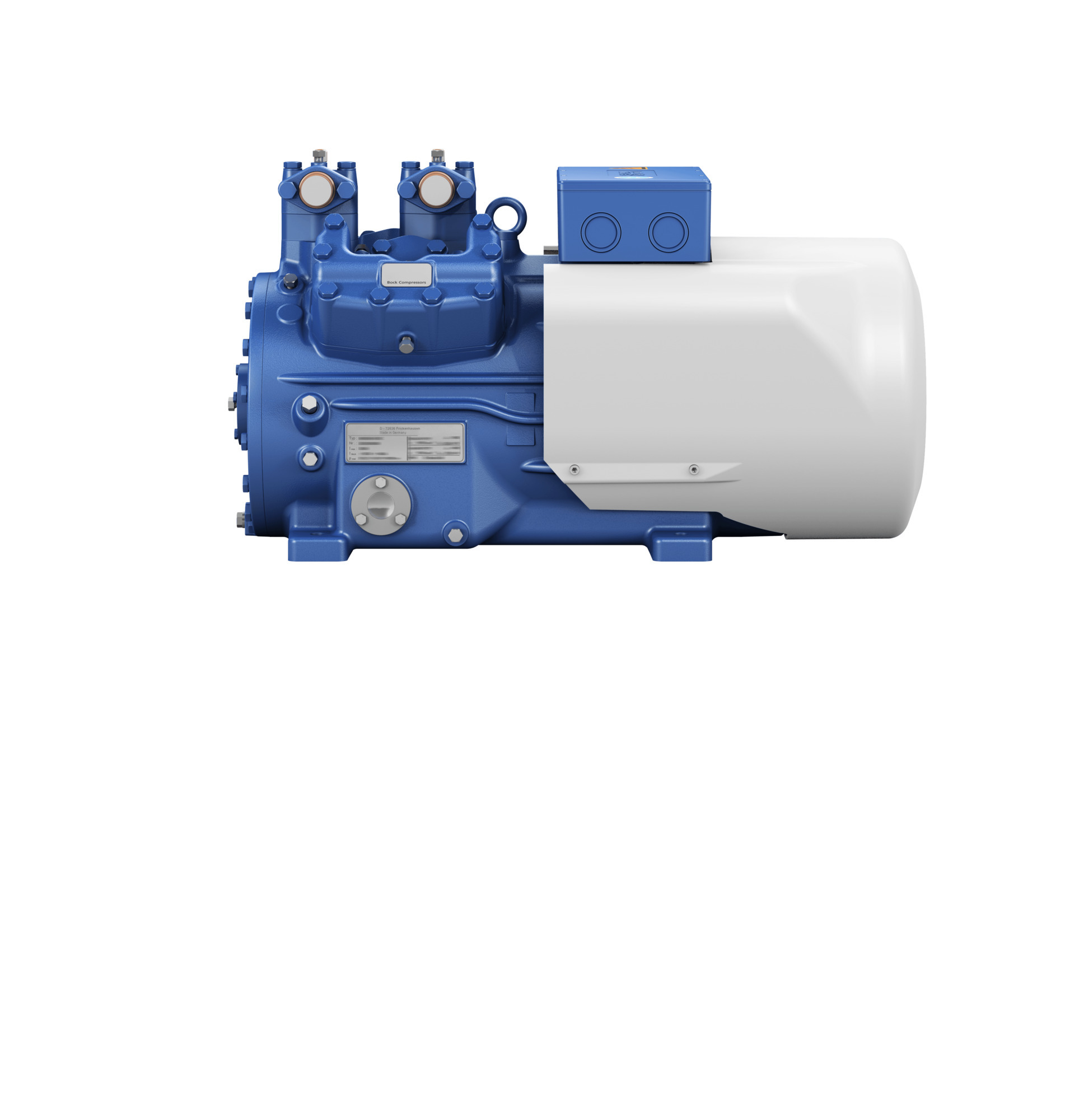

097C3901

Part Number: 097C3901
097C3901
Manufacturer
Danfoss
Part number
097C3901
Category

Product Information

Extended Description

097C3901 Danfoss: Refrigerants: R404A; R407A; R407F; R448A; R449A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: SEZ22, Anti-vibration pads: Yes, Legacy BOCK ID: 16182
Gross weight
190.181 Kilogram
Net weight
173.281 Kilogram
Volume
271.656 Liter
EAN
5715162654743
Anti-vibration pads
Yes
Applications
LBP
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
4
Description
Compressor HAX44e/475-4
Discharge connection size [in]
1 1/8 in
Discharge connection size [mm]
28 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
Intermediate flange/adapter
No
IP class
IP 44
Legacy BOCK ID
16182
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HAX44e/475-4
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil sump heater
220-240V AC
Oil temperature sensor
No
Oil type
SEZ22
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HA
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants
R404A,R407A,R407F,R448A,R449A
SCIP dossier no.
2fb4c6ae-f5a0-44f0-9abf-d0c61b888840
SCIP dossier product name
HG/HA(X)44/=E2=80=A6. - series
Step protection for CR/SU
No
Suction connection size [in]
1 3/8 in
Suction connection size [mm]
35 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic air cooled
Thermal protection thermostat
No
Type
HAX44e
Type designation
HAX44e/475-4
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69 GTML=C2=AE Diagnose INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection Sound pressure level and sound power level in dB for HGX12P until HGX88e and HAX44e with R404A Torques for screwed connections Torques for screwed connections Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e BOCK compressors Semi-hermetic compressors, Reciprocating compressor HA, HA44e Semi-hermetic compressors, Reciprocating compressor HA, HA44e HA44e.STEP MC- HA44e, 16180 MC- HA44e/475-4, 1.0850-16180.0 BL.1-4
