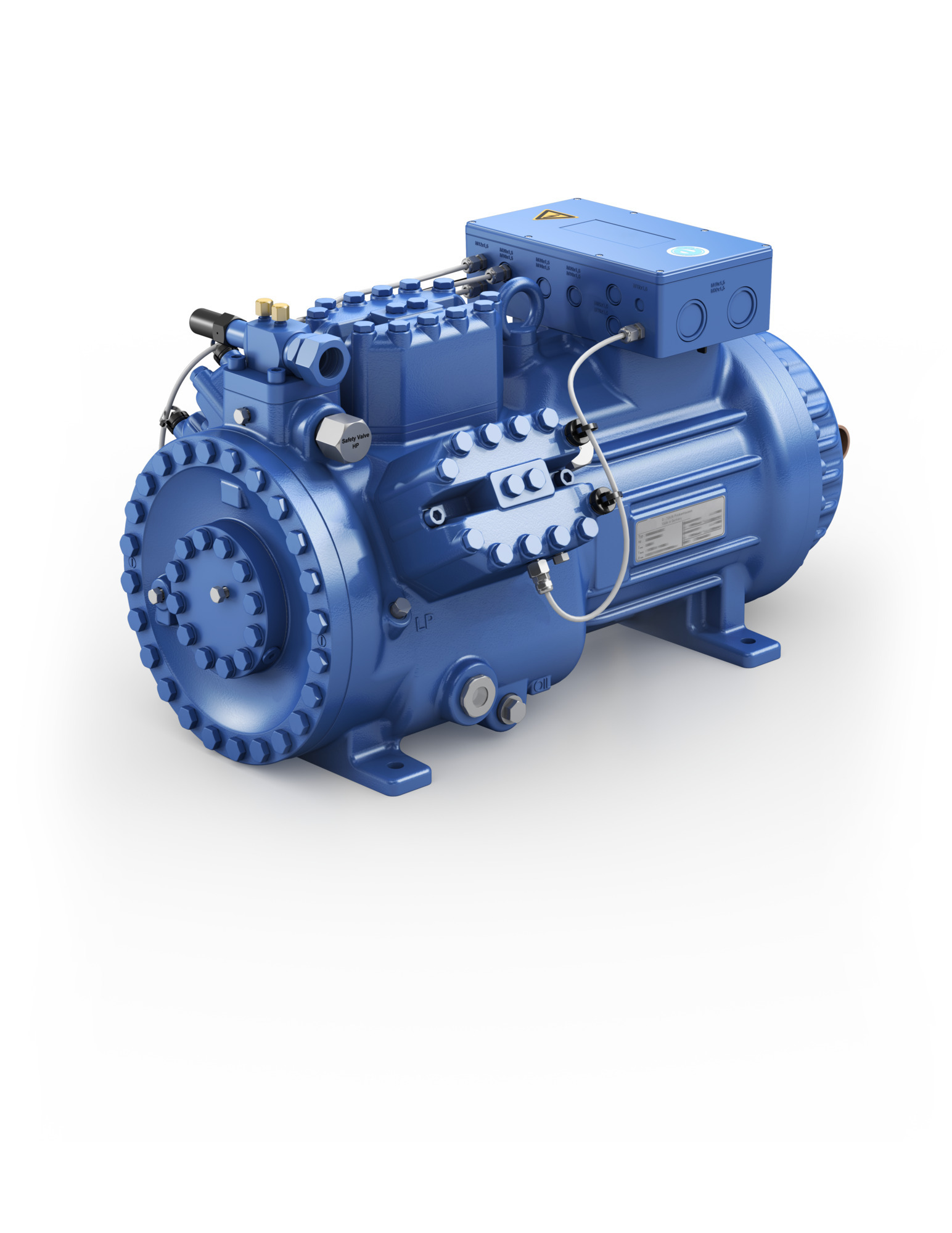

097C4121

Part Number: 097C4121
097C4121
Manufacturer
Danfoss
Part number
097C4121
Category

Product Information

Extended Description

097C4121 Danfoss: Refrigerants: R744, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E85, Anti-vibration pads: Yes, Legacy BOCK ID: 16220
Gross weight
264.15 Kilogram
Net weight
242.35 Kilogram
Volume
428.8 Liter
EAN
5715162624500
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6

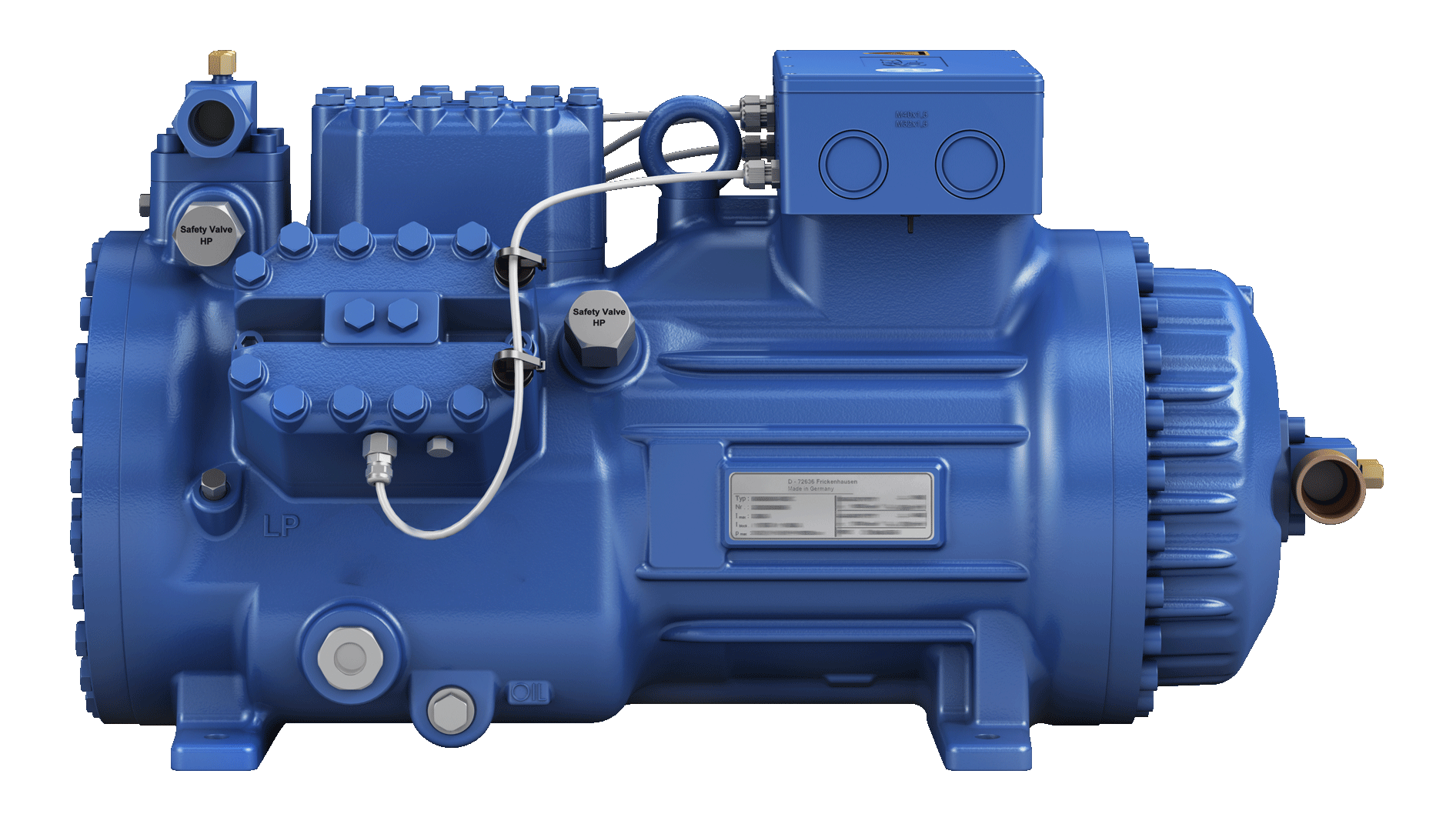

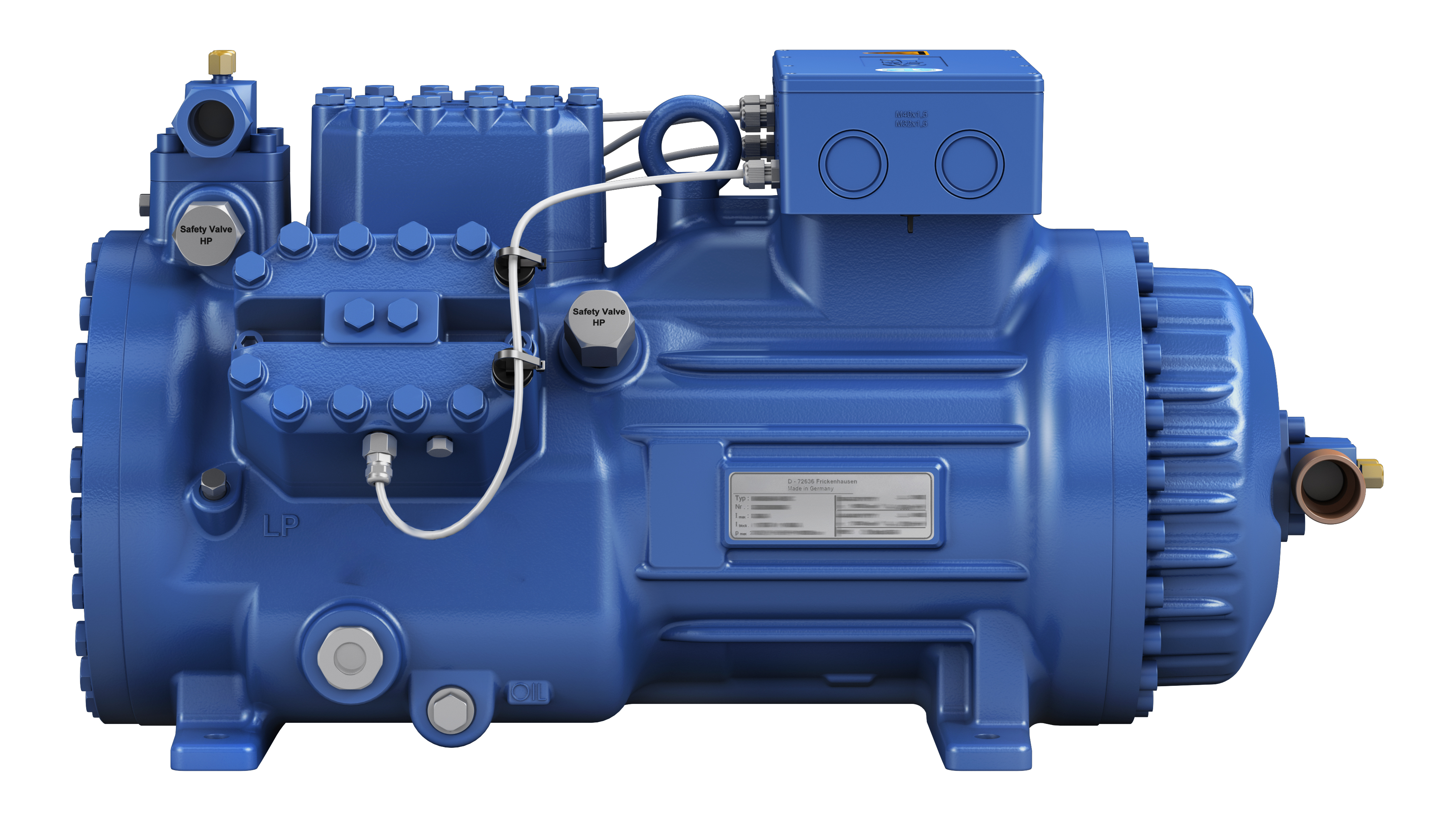

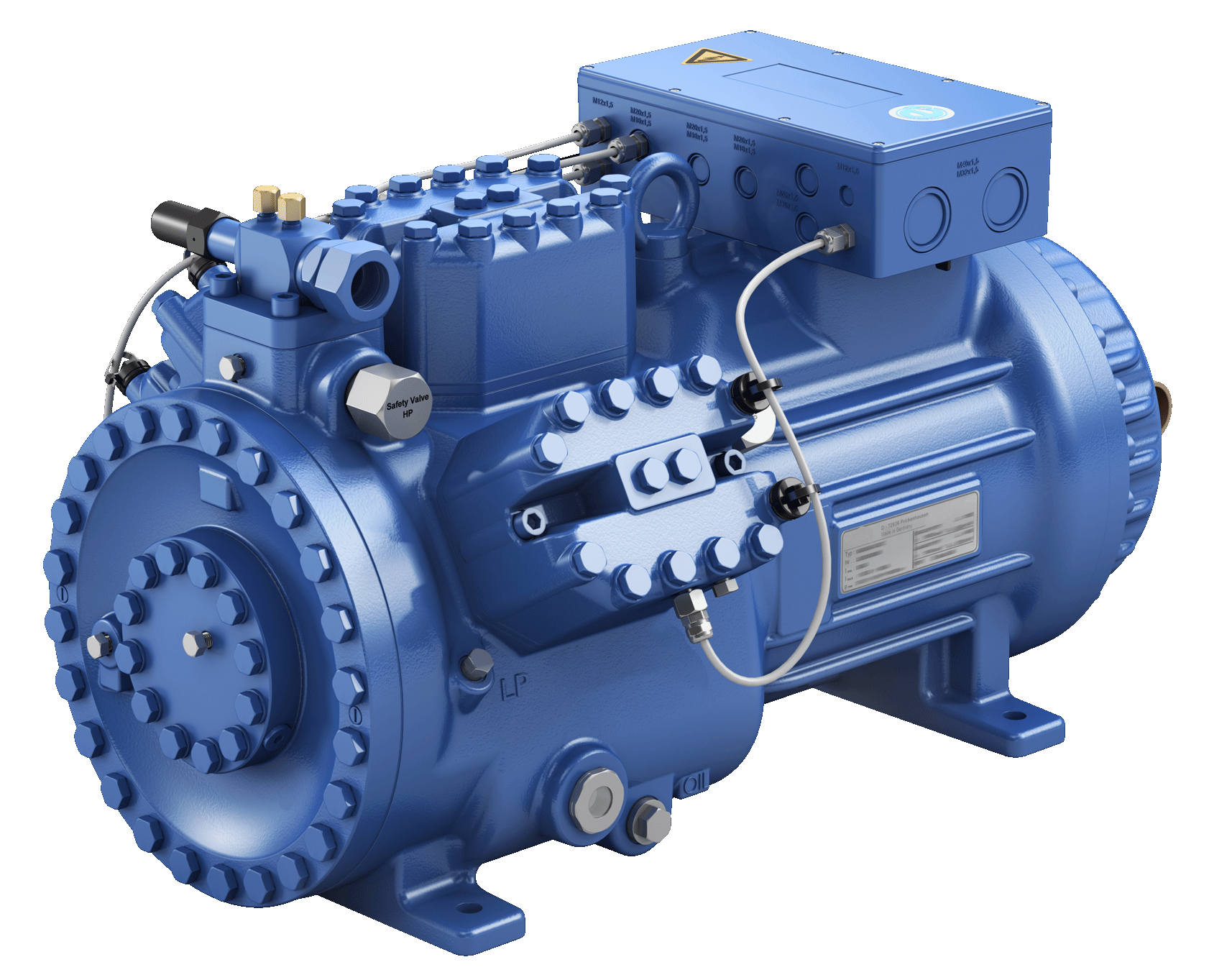

Description
Compressor HGX46/345-4 S CO2 T
Discharge connection size [in]
1 1/8 in
Discharge connection size [mm]
28 mm
Discharge connection size type
Non-standard
Discharge connection type
Soldering/welding
Family
HG CO2 T Compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
Intermediate flange/adapter
No
IP class
IP 66
Legacy BOCK ID
16220
Max pressure (PS) - high side
150 bar
Max pressure (PS) - low side
100 bar
Model number
HGX46/345-4 S CO2 T
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
DELTA-P II 220-240V - 1 - 50/60 Hz
Oil level regulator
No
Oil sump heater
220-240V AC (V2A)
Oil temperature sensor
No
Oil type
BOCKlub E85
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R744
SCIP dossier no.
346dec0b-2773-4e6b-b2de-974a2a1df49e
SCIP dossier product name
HG(X)46/=E2=80=A6. CO2 T
Screw-in valve
No
Sound power @ 50Hz [db(A)]
86 dBA
Sound power @ 60Hz [db(A)]
86 dBA
Suction connection size [in]
1 3/8 in
Suction connection size [mm]
35 mm
Suction connection size type
Non-standard
Suction connection type
Soldering/welding
Technology
Semi-hermetic CO2 transcritical
Thermal protection thermostat
3
Type
HGX46
Type designation
HGX46/345-4 S CO2 T
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
