097C4635

Part Number: 097C4635
097C4635
Manufacturer
Danfoss
Part number
097C4635
Category

Product Information

Extended Description

097C4635 Danfoss: Refrigerants: R744, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E85, Anti-vibration pads: Yes, Legacy BOCK ID: 16327
Gross weight
125.572 Kilogram
Net weight
113.672 Kilogram
Volume
237.223 Liter
EAN
5715162641293
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
4
Description

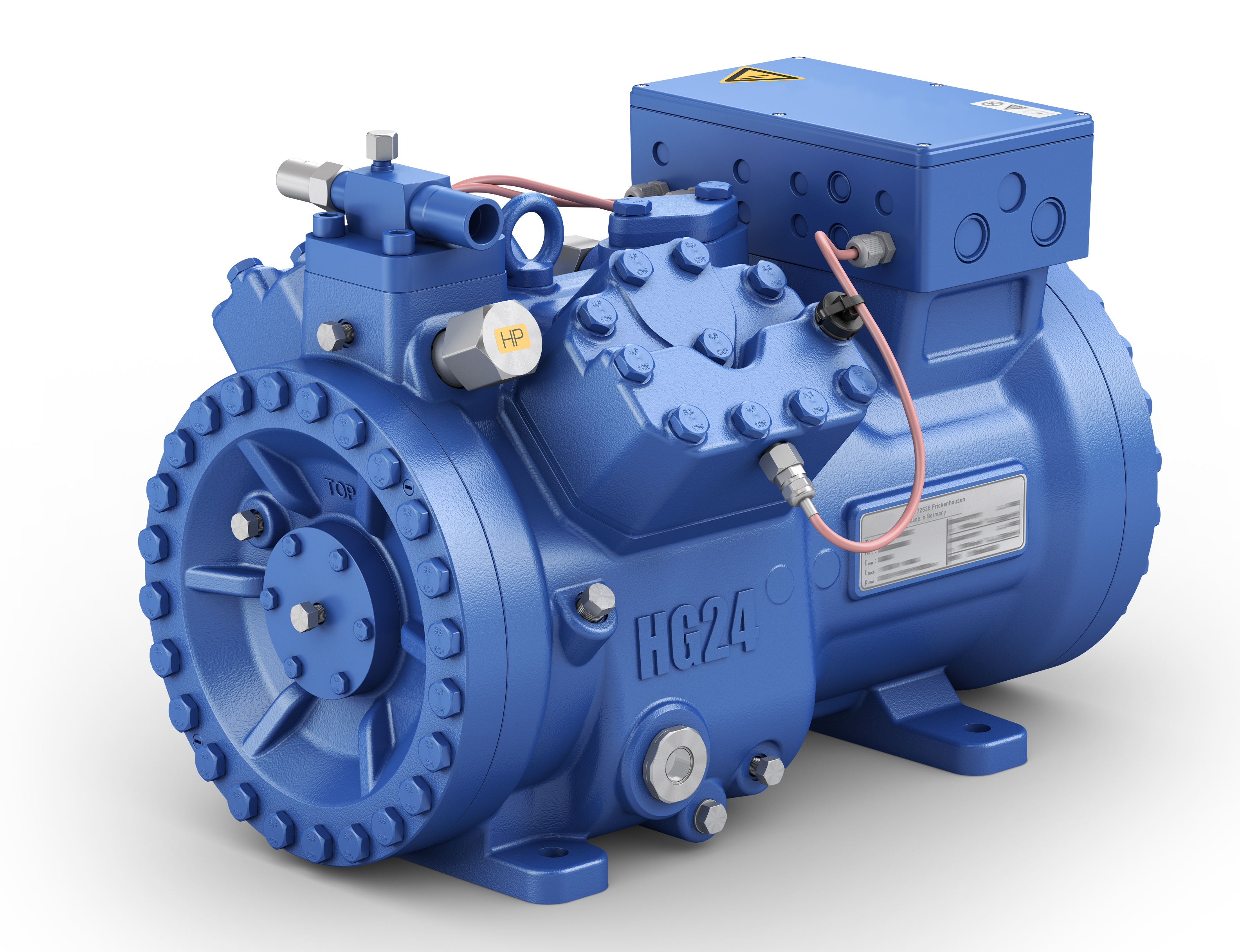

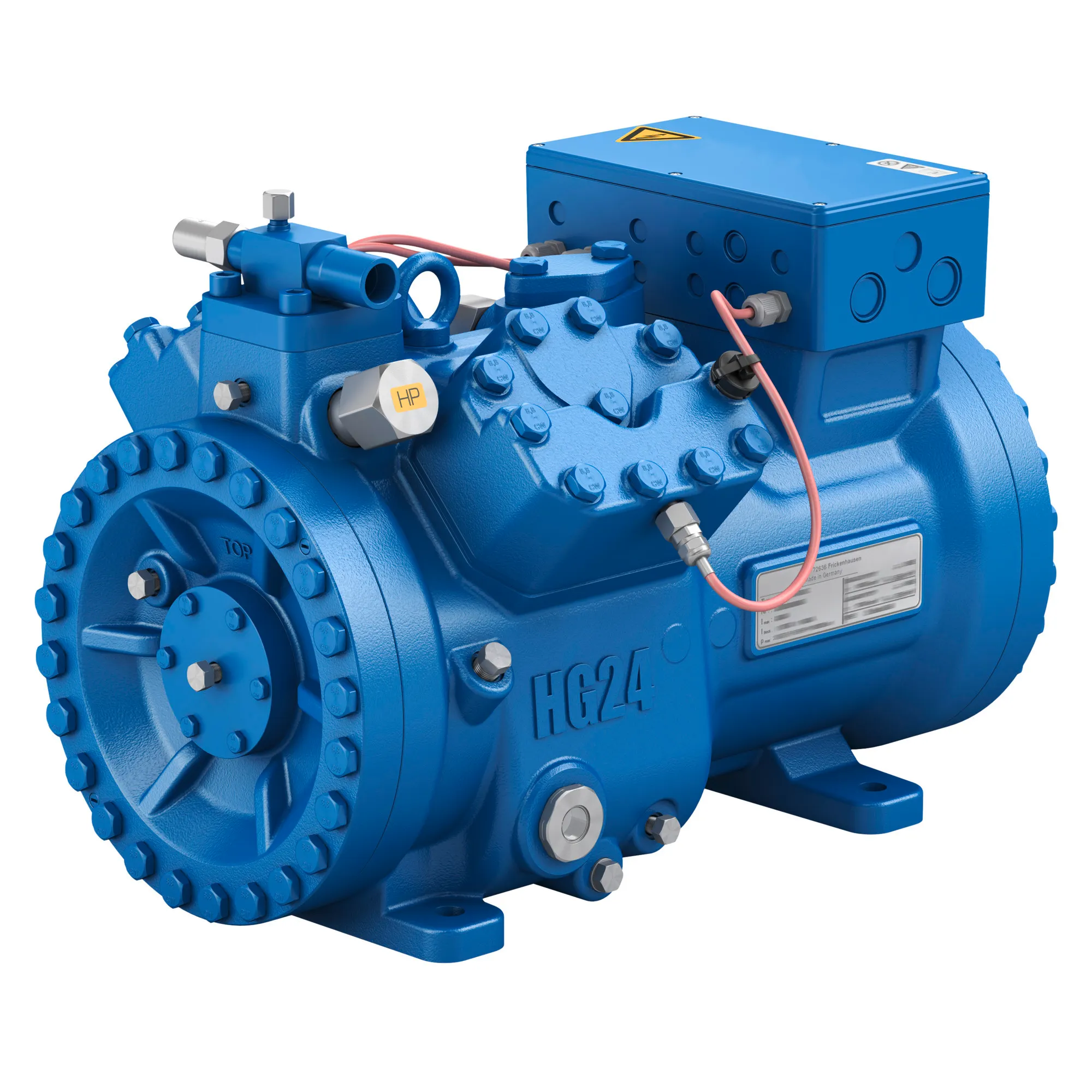

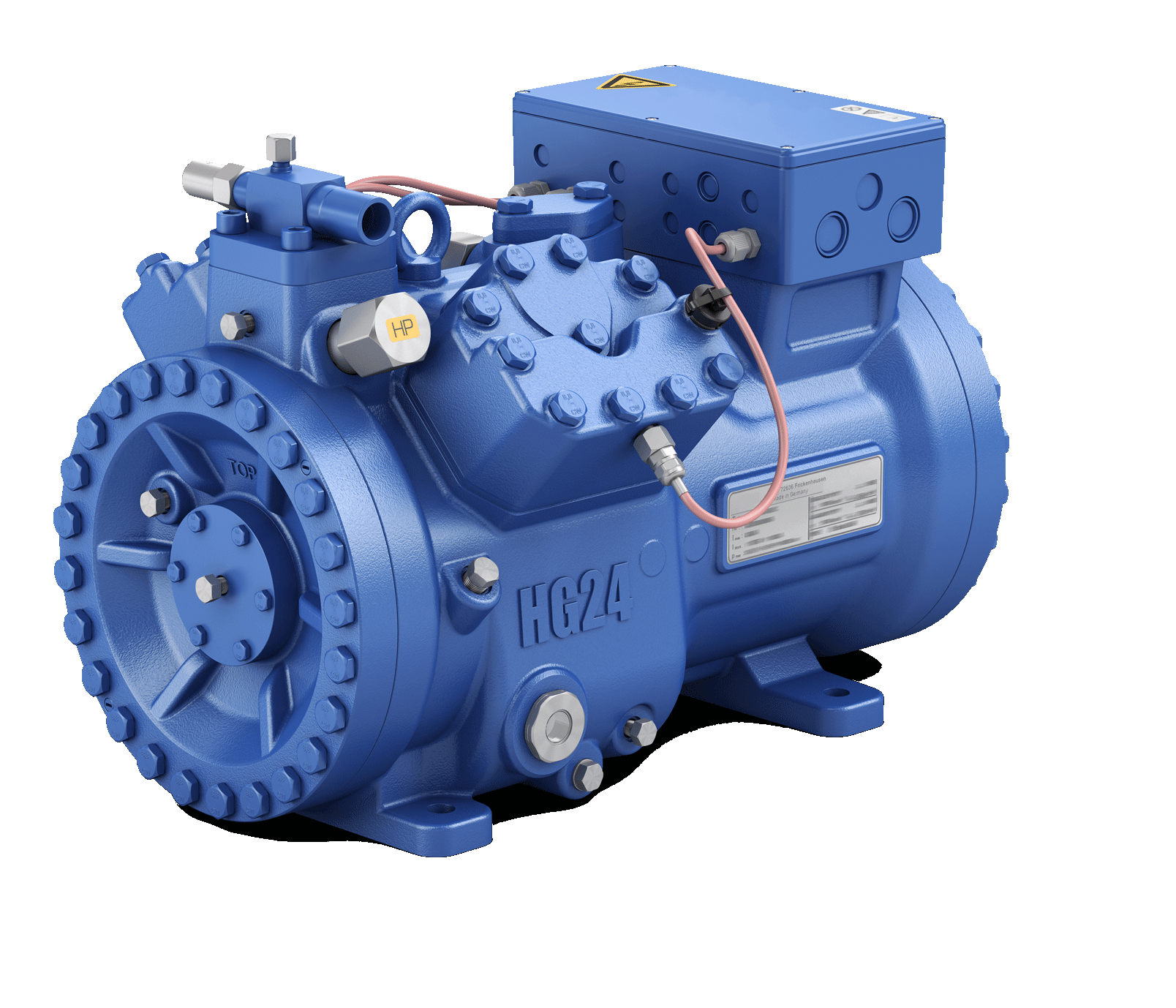

Compressor HGX24/90-4 S CO2 T
Discharge connection size [in]
3/4 in
Discharge connection size [mm]
19 mm
Discharge connection size type
Non-standard
Discharge connection type
Soldering/welding
Family
HG CO2 T Compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
Intermediate flange/adapter
No
IP class
IP 66
Legacy BOCK ID
16327
Max pressure (PS) - high side
150 bar
Max pressure (PS) - low side
100 bar
Model number
HGX24/90-4 S CO2 T
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil sump heater
220-240V AC (V2A)
Oil temperature sensor
No
Oil type
BOCKlub E85
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R744
SCIP dossier no.
aa816602-85c1-4b3d-a64b-18d375259a9f
SCIP dossier product name
HG(X)24/=E2=80=A6. CO2 T/LT
Screw-in valve
No
Sound power @ 50Hz [db(A)]
74 dBA
Sound power @ 60Hz [db(A)]
74 dBA
Suction connection size [in]
7/8 in
Suction connection size [mm]
22 mm
Suction connection size type
Non-standard
Suction connection type
Soldering/welding
Technology
Semi-hermetic CO2 transcritical
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX24
Type designation
HGX24/90-4 S CO2 T
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
