097C4740

Part Number: 097C4740
097C4740
Manufacturer
Danfoss
Part number
097C4740
Category

Product Information

Extended Description

097C4740 Danfoss: Refrigerants: R404A; R407C; R452A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 380-420V Y -3- 50Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 17011
Gross weight
60.671 Kilogram
Net weight
51.271 Kilogram
Volume
152.46 Liter
EAN
5715162654163
Anti-vibration pads
Yes
Applications
MBP,HBP
Approval standard
No
Brand
BOCK
Colour
Blue - standard (conductive coating)
Compressor power supply [V]
380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
2
Description

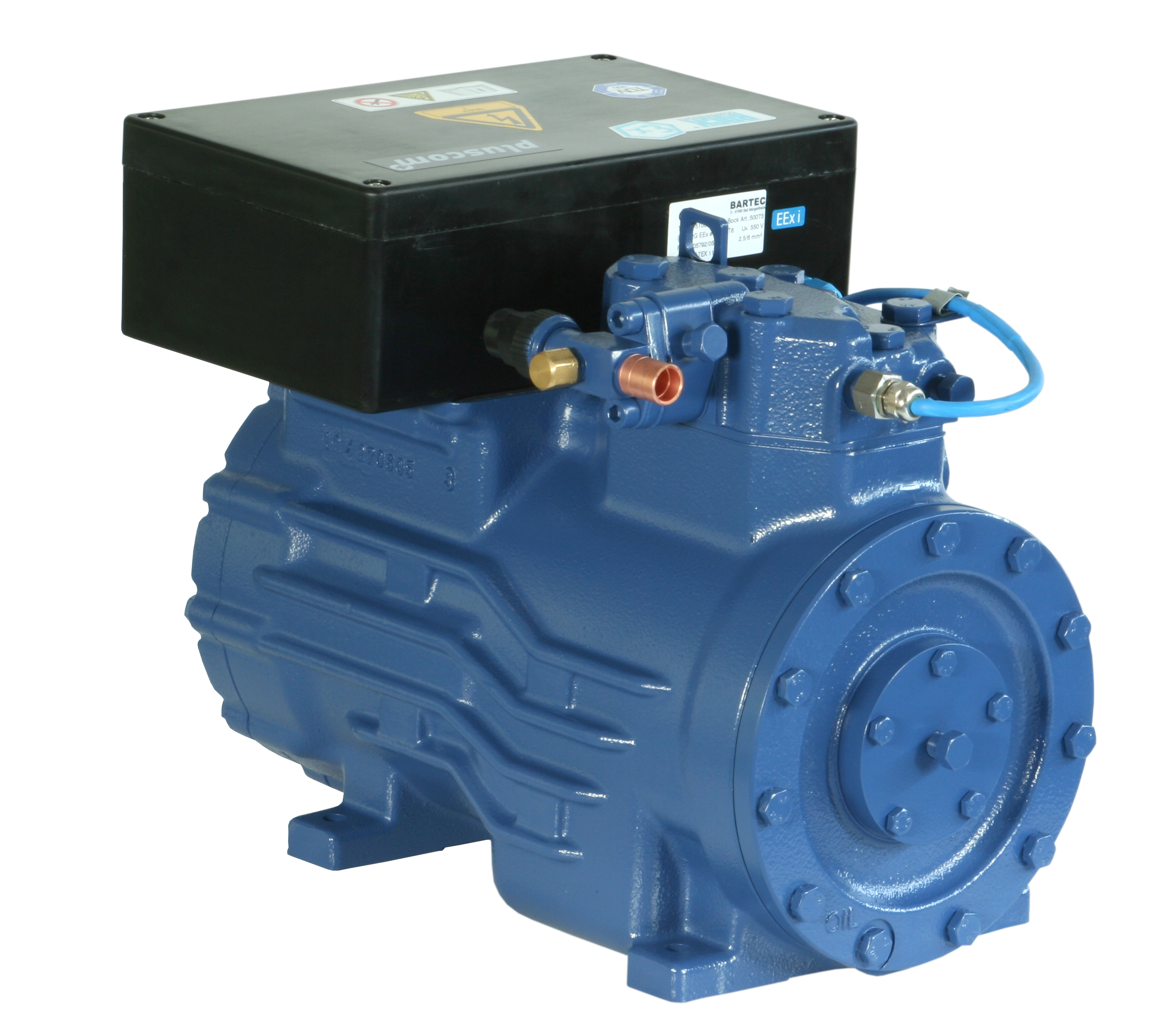

Compressor EX-HGX12P/75-4 S
Discharge connection size [in]
1/2 in
Discharge connection size [mm]
12 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG ATEX Compressors
Frequency Hz
50
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
17011
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
EX-HGX12P/75-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil sump heater
220-240V AC (enclosed)
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
Suction connection size [in]
5/8 in
Suction connection size [mm]
16 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic ATEX
Thermal protection thermostat
1
Type
EX-HGX12P
Type designation
EX-HGX12P/75-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69=C2=AE EX2 trigger unit INT69=C2=AE EX2 trigger unit Maximum permissible inclination for Bock compressors O-ring selection Torques for screwed connections Torques for screwed connections Information valve plate gasket Instructions for assembly of piston rings Operating guide BOCK=C2=AE EX-HG12P ATEX varnish according to the IIC- und IIB-classification Danfoss Bock DOI UK 96566-03-2023 BV EPS 16 ATEX 1 095X Rev. 1 eurofins CML 21UKEX1801X Issue 0 IECEx EPS 16.0042X Issue 01 BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, EX-HGX12P MC- EX-HG12P -1.0850-17007.0 BL.1-4 EX-HG12P.STEP MC- EX-HG12P - 17007
