097C4973

Part Number: 097C4973
097C4973
Manufacturer
Danfoss
Part number
097C4973
Category

Product Information

Extended Description

097C4973 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: No, Legacy BOCK ID: 17734
Gross weight
203.751 Kilogram
Net weight
186.851 Kilogram
Volume
271.656 Liter
EAN
5715162651834
Anti-vibration pads
No
Applications
MBP,HBP
Approval standard
No
Brand
BOCK
Capacity regulator
1x 230V AC,50Hz
Colour
Blue - offshore (insulating coating)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
4
Description

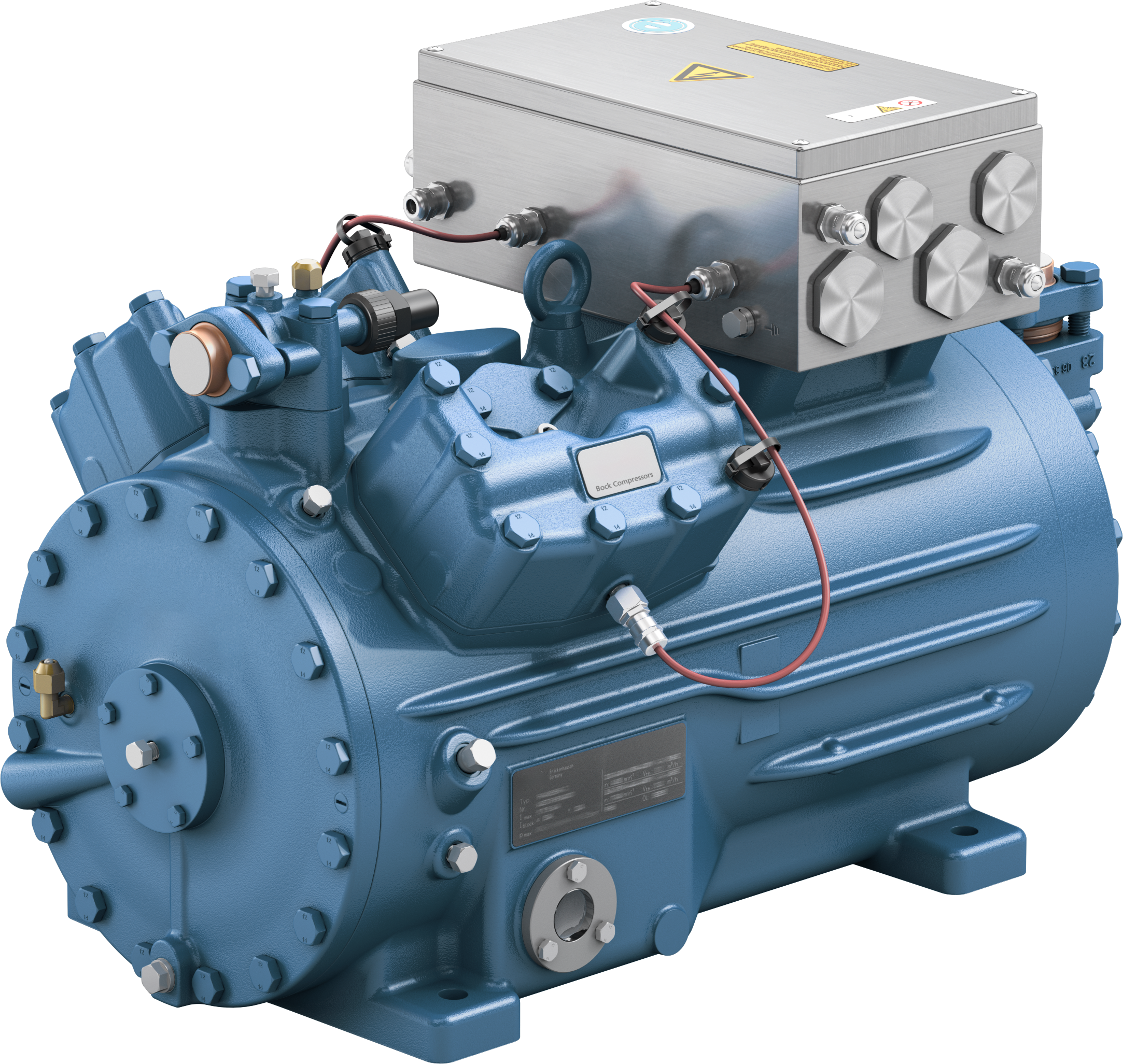

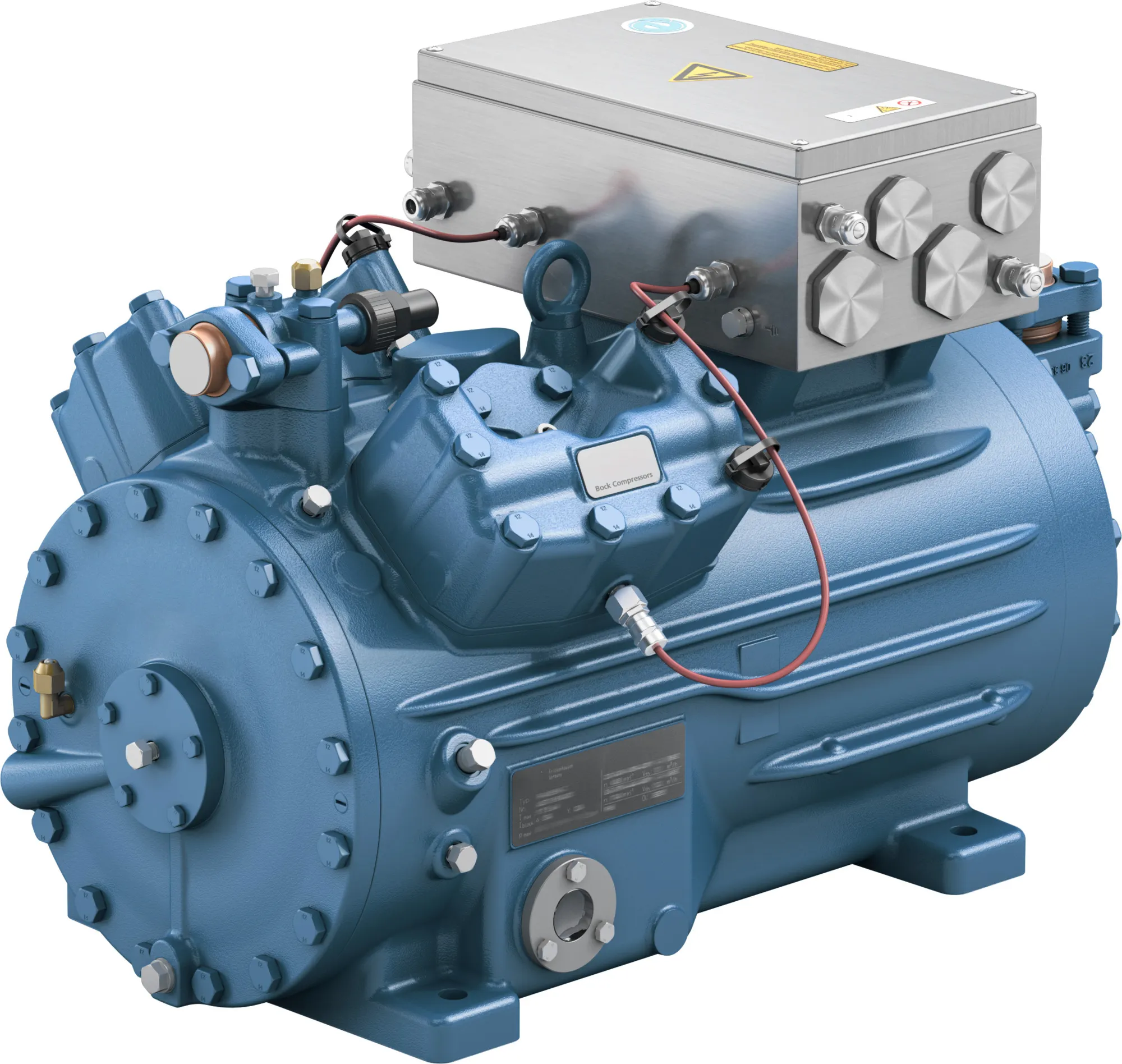

Compressor EX-HGX44e/665-4 S
Discharge connection size [in]
1 1/8 in
Discharge connection size [mm]
28 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG ATEX Compressors
Frequency Hz
50
In scope of WEEE
No
Intermediate flange/adapter
No
IP class
IP 66
Legacy BOCK ID
17734
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
EX-HGX44e/665-4 S
Motor protection
INT69 G 24V DC, IP00
Mounting position capacity regulator
Serial position
Oil differential pressure sensor
No
Oil sump heater
220-240V AC
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
Step protection for CR/SU
No
Suction connection size [in]
1 5/8 in
Suction connection size [mm]
42 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic ATEX
Thermal protection thermostat
2
Type
EX-HGX44e
Type designation
EX-HGX44e/665-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Maximum permissible inclination for Bock compressors O-ring selection Torques for screwed connections BOCK=C2=AE EX-HG44e/EX-HG56e Danfoss Bock DOI 40836-12-2023 Danfoss Bock DOI UK 96566-03-2023 BV EPS 17 ATEX 1 002 X Revision 2 eurofins CML 21UKEX1800X Issue 0 IECEx EPS 17.0001X Issue 2 BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, EX-HG44e MC- EX-HG44e/475-4, 1.0850-17727.0 BL.1-4 EX-HG44e.STEP MC- EX-HG44e, 17727
