097C5090

Part Number: 097C5090
097C5090
Manufacturer
Danfoss
Part number
097C5090
Category

Product Information

Extended Description

097C5090 Danfoss: Refrigerants: R404A; R407C; R134a, Compressor power supply [V]: w/o motor, Oil type: BOCKlub E55, Legacy BOCK ID: 12086
Gross weight
62.593 Kilogram
Net weight
53.193 Kilogram
Volume
180.18 Liter
EAN
5715162788431
Approval standard
No
Brand
BOCK
Capacity regulator
No
Clutch type
No
Colour
Blue (standard)
Compressor power supply [V]
w/o motor
Contain batteries
No
Cylinder
4
Description

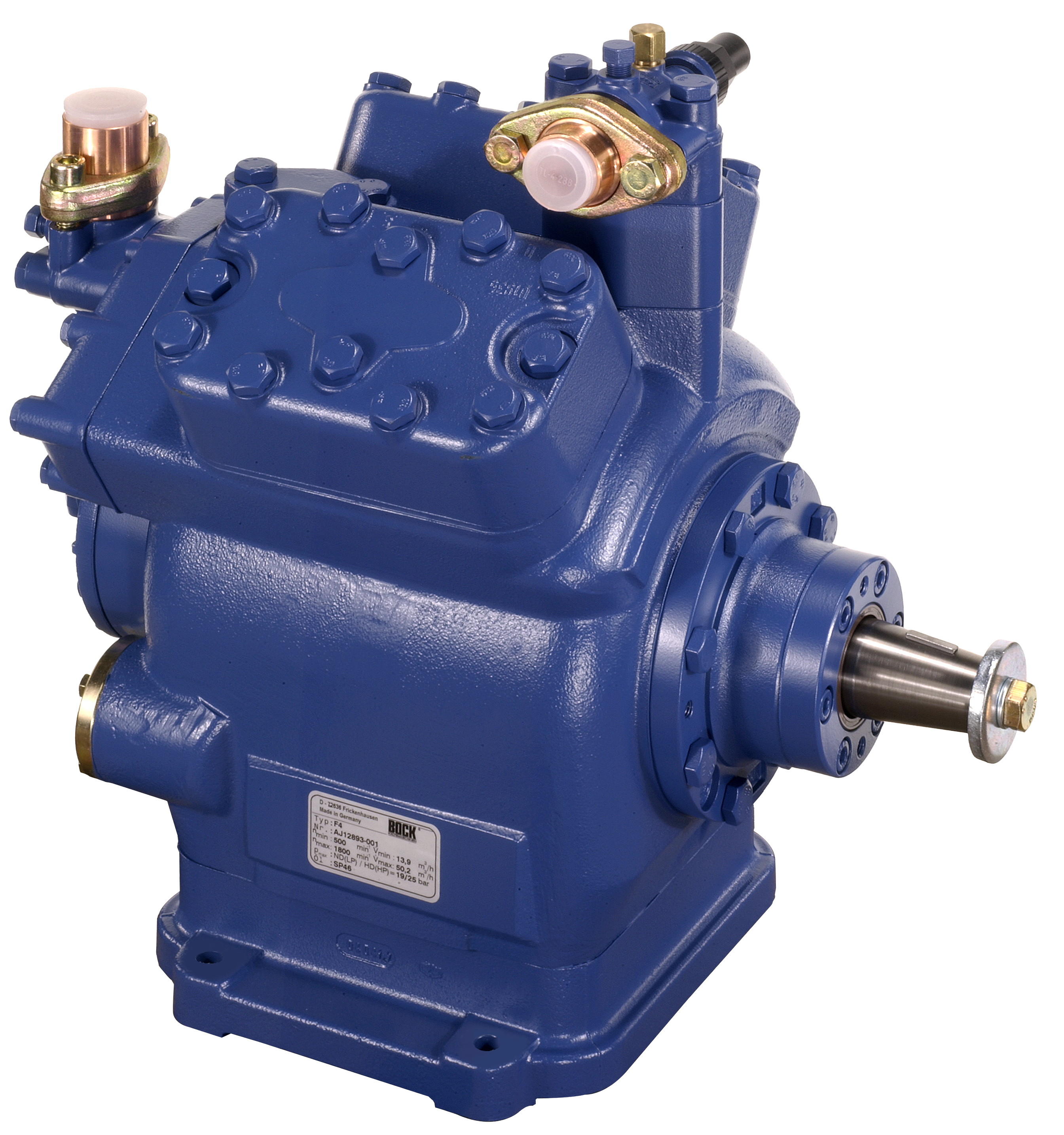

Compressor FX4
Discharge connection size [in]
1 1/8 in
Discharge connection size [mm]
28 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
F Compressors
Flywheel
No
Frequency Hz
w/o motor
In scope of WEEE
No
Legacy BOCK ID
12086
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
FX4
Oil pressure safety switch
No
Oil sump heater
220-240V AC
Oil type
BOCKlub E55
Product group
Open type compressors
Product Name Description
Reciprocating compressor F
Refrigerants
R134a,R404A,R407C
Start Unloader
No
Suction connection size [in]
1 3/8 in
Suction connection size [mm]
35 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Open Type Compressor
Thermal protection thermostat
No
Type
FX4
Type designation
FX4
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Bock shaft couplings for direct drive Maximum permissible inclination for Bock compressors O-ring selection Torques for screwed connections Torques for screwed connections Bock oil pressure safety switch Information valve plate gasket Instructions for assembly of Bock shaft coupling Instructions for assembly of piston rings Operating guide BOCK=C2=AE F/F-NH3 BOCK compressors Open type compressors, Reciprocating compressor F, F4
