097C5325

097C5325
Manufacturer
Danfoss
Part number
097C5325
Category

Product Information

Extended Description

097C5325 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 265-290V D / 440-480V Y -3- 60Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16011
Gross weight
85 Kilogram
Net weight
75.6 Kilogram
Volume
152.46 Liter
EAN
5715162793824
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
265-290V D / 440-480V Y -3- 60Hz
Contain batteries
No
Cylinder
2
Description

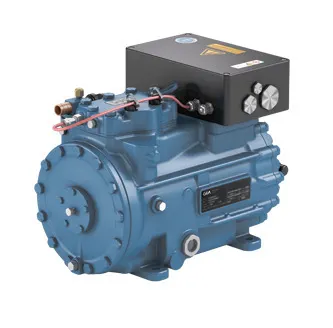

Compressor HGX22e/190-4 S
Discharge connection size [in]
5/8 in
Discharge connection size [mm]
16 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
60
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16011
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX22e/190-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
110-240V AC
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
SCIP dossier no.
7f2d5eef-f276-4b05-869b-e55068f6f644
SCIP dossier product name
HG/HA(X)22/…. - series
Suction connection size [in]
7/8 in
Suction connection size [mm]
22 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX22e
Type designation
HGX22e/190-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69=C2=AE EX2 trigger unit INT69=C2=AE EX2 trigger unit Maximum permissible inclination for Bock compressors O-ring selection Torques for screwed connections Torques for screwed connections Information valve plate gasket Instructions for assembly of piston rings ATEX varnish according to the IIC- und IIB-classification Danfoss Bock DOI 40836-12-2023 Danfoss Bock DOI UK 96566-03-2023 BV EPS 16 ATEX 1 095X Rev. 1 eurofins CML 21UKEX1801X Issue 0 IECEx EPS 16.0042X Issue 01 BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, EX-HG22e MC- EX-HG22e , 17309 MC- EX-HG22e/190-4 S HC1.0850-17309.0 BL.1-4 EX-HG22e.STEP
