097C5367

Part Number: 097C5367
097C5367
Manufacturer
Danfoss
Part number
097C5367
Category

Product Information

Extended Description

097C5367 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 60Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 14946
Gross weight
239.4 Kilogram
Net weight
217.6 Kilogram
Volume
428.8 Liter
EAN
5715162793404
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
1x 110V AC,50Hz
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 60Hz
Contain batteries
No
Cylinder
6
Description

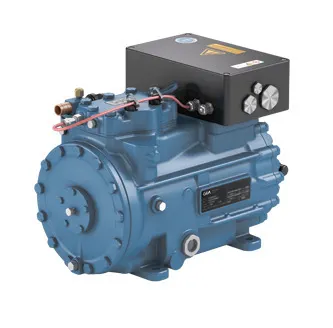

Compressor UL-HGX56e/995 ML 23
Discharge connection size [in]
1 3/8 in
Discharge connection size [mm]
35 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
UL Compressors
Frequency Hz
60
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
14946
Max pressure (PS) - high side
406 psig
Max pressure (PS) - low side
276 psig
Model number
UL-HGX56e/995 ML 23
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Mounting position capacity regulator
Serial position
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil sump heater
110-120V AC
Oil temperature sensor
No
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
Step protection for CR/SU
No
Suction connection size [in]
2 1/8 in
Suction connection size [mm]
54 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
UL-HGX56e
Type designation
UL-HGX56e/995 ML 23
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69=C2=AE EX2 trigger unit INT69=C2=AE EX2 trigger unit Maximum permissible inclination for Bock compressors O-ring selection Torques for screwed connections Torques for screwed connections Information valve plate gasket Instructions for assembly of piston rings ATEX varnish according to the IIC- und IIB-classification Danfoss Bock DOI 40836-12-2023 Danfoss Bock DOI UK 96566-03-2023 BV EPS 16 ATEX 1 095X Rev. 1 eurofins CML 21UKEX1801X Issue 0 IECEx EPS 16.0042X Issue 01 BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, EX-HG22e MC- EX-HG22e , 17309 MC- EX-HG22e/190-4 S HC1.0850-17309.0 BL.1-4 EX-HG22e.STEP
