097C5686

Part Number: 097C5686
097C5686
Manufacturer
Danfoss
Part number
097C5686
Category

Product Information

Extended Description

097C5686 Danfoss: Refrigerants: R1270; R290, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub G68, Anti-vibration pads: Yes, Legacy BOCK ID: 16072
Gross weight
107 Kilogram
Net weight
97.6 Kilogram
Volume
152.46 Liter
EAN
5715162878408
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
4
Description

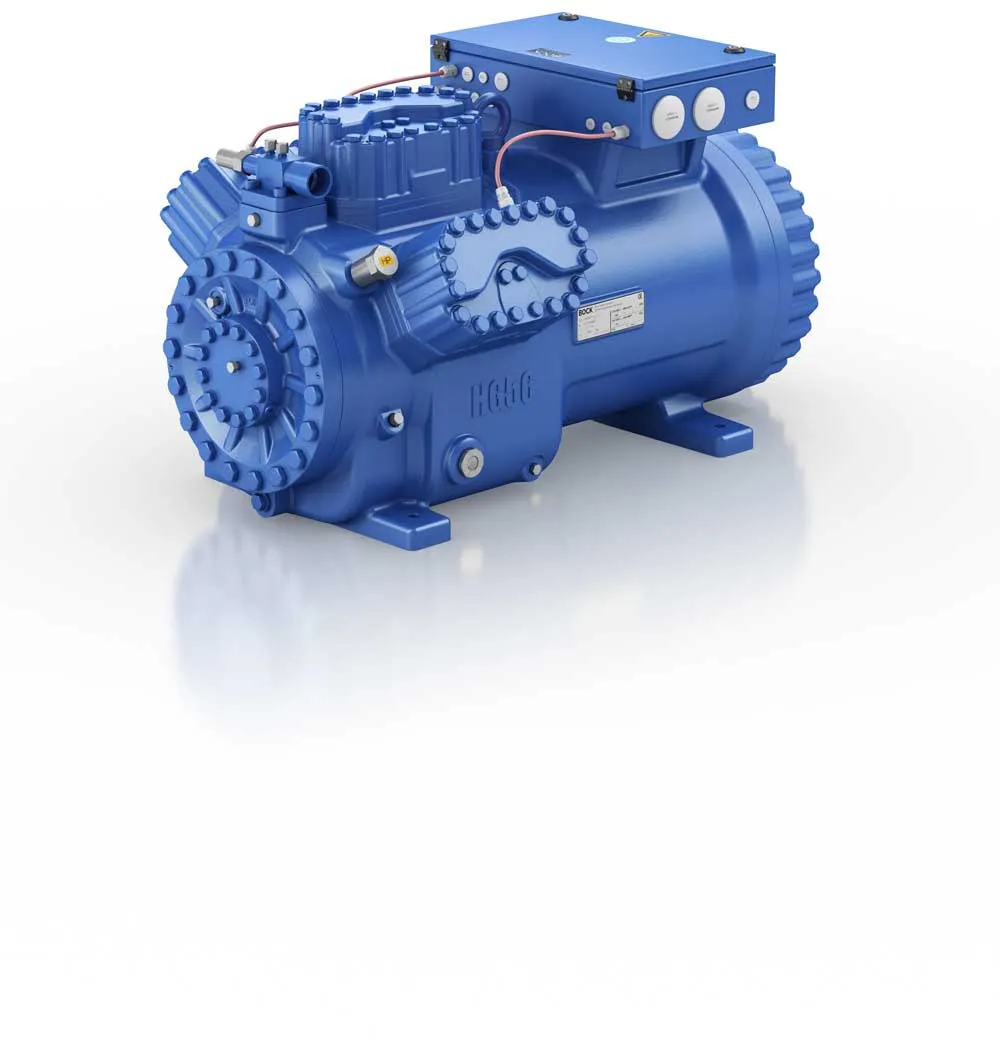

Compressor HG34e/315-4 S HC
Discharge connection size [in]
7/8 in
Discharge connection size [mm]
22 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HC Compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16072
Max pressure (PS) - high side
32 bar
Max pressure (PS) - low side
19 bar
Model number
HG34e/315-4 S HC
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
110-240V AC
Oil type
BOCKlub G68
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants
R1270,R290
SCIP dossier no.
60e852d2-90d1-42cc-828d-974bed584935
SCIP dossier product name
HG/HA(X)34/…. - series
Step protection for CR/SU
No
Suction connection size [in]
1 1/8 in
Suction connection size [mm]
28 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
2
Type
HG34e
Type designation
HG34e/315-4 S HC
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
