097C5694

Part Number: 097C5694
097C5694
Manufacturer
Danfoss
Part number
097C5694
Category

Product Information

Extended Description

097C5694 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 265-290V D / 440-480V Y -3- 60Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16349
Gross weight
110.9 Kilogram
Net weight
101.5 Kilogram
Volume
152.46 Liter
EAN
5715162878514
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
265-290V D / 440-480V Y -3- 60Hz
Contain batteries
No
Cylinder
4
Description

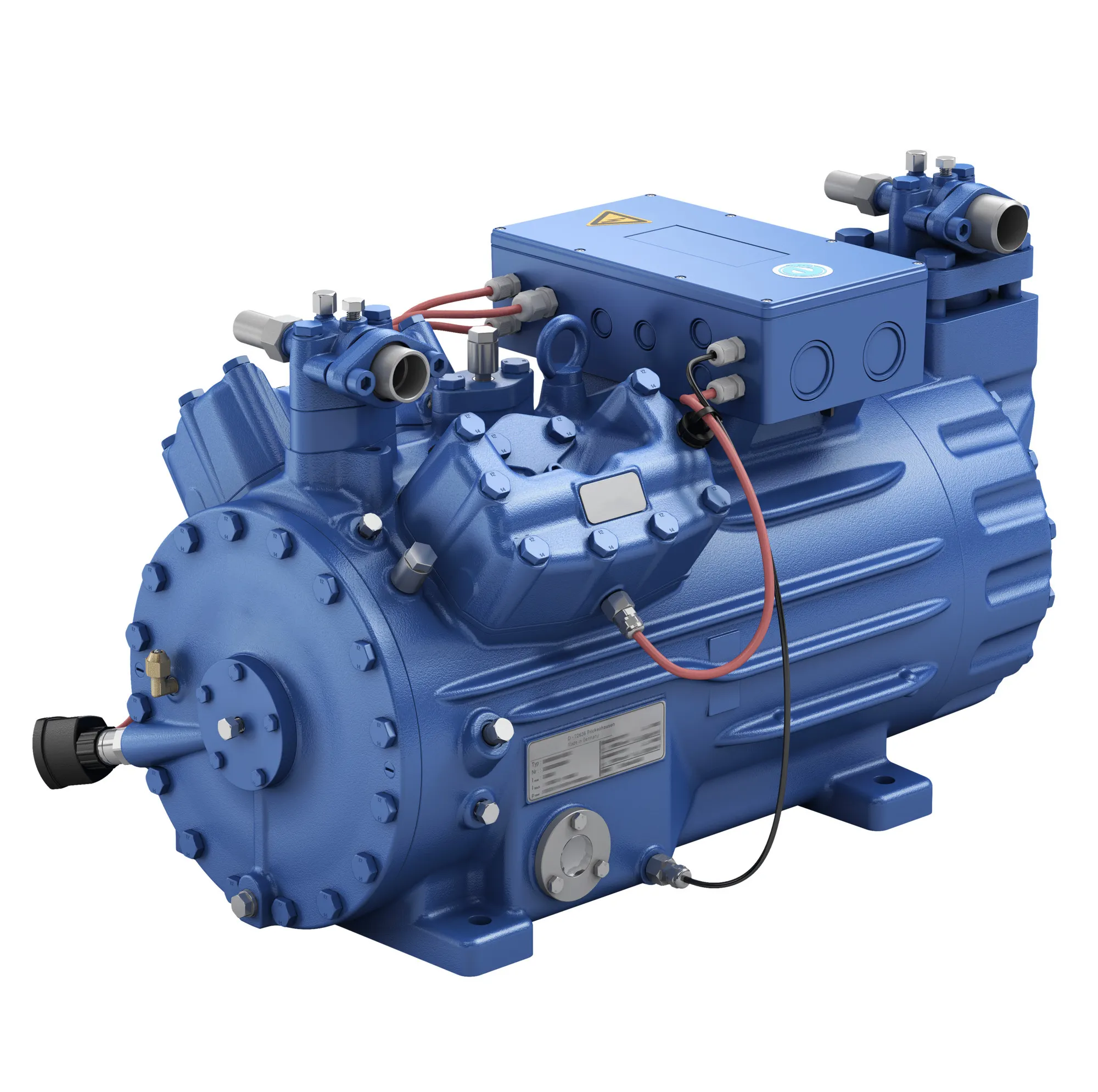

Compressor UL-HGX34e/315 S 7
Discharge connection size [in]
7/8 in
Discharge connection size [mm]
22 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
UL Compressors
Frequency Hz
60
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16349
Max pressure (PS) - high side
406 psig
Max pressure (PS) - low side
276 psig
Model number
UL-HGX34e/315 S 7
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
MP55 230V - 1 - 50/60 Hz, IP20
Oil sump heater
110-120V AC
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
SCIP dossier no.
3349a591-a927-4d1d-8ca6-9b04387c341d
SCIP dossier product name
HG(X)34/…. CO2 T
Step protection for CR/SU
No
Suction connection size [in]
1 1/8 in
Suction connection size [mm]
28 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
2
Type
UL-HGX34e
Type designation
UL-HGX34e/315 S 7
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
