097C5751

Part Number: 097C5751
097C5751
Manufacturer
Danfoss
Part number
097C5751
Category

Product Information

Extended Description

097C5751 Danfoss: Refrigerants: R404A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 14417
Gross weight
366.5 Kilogram
Net weight
290 Kilogram
Volume
657.816 Liter
EAN
5715162889251
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6
Description

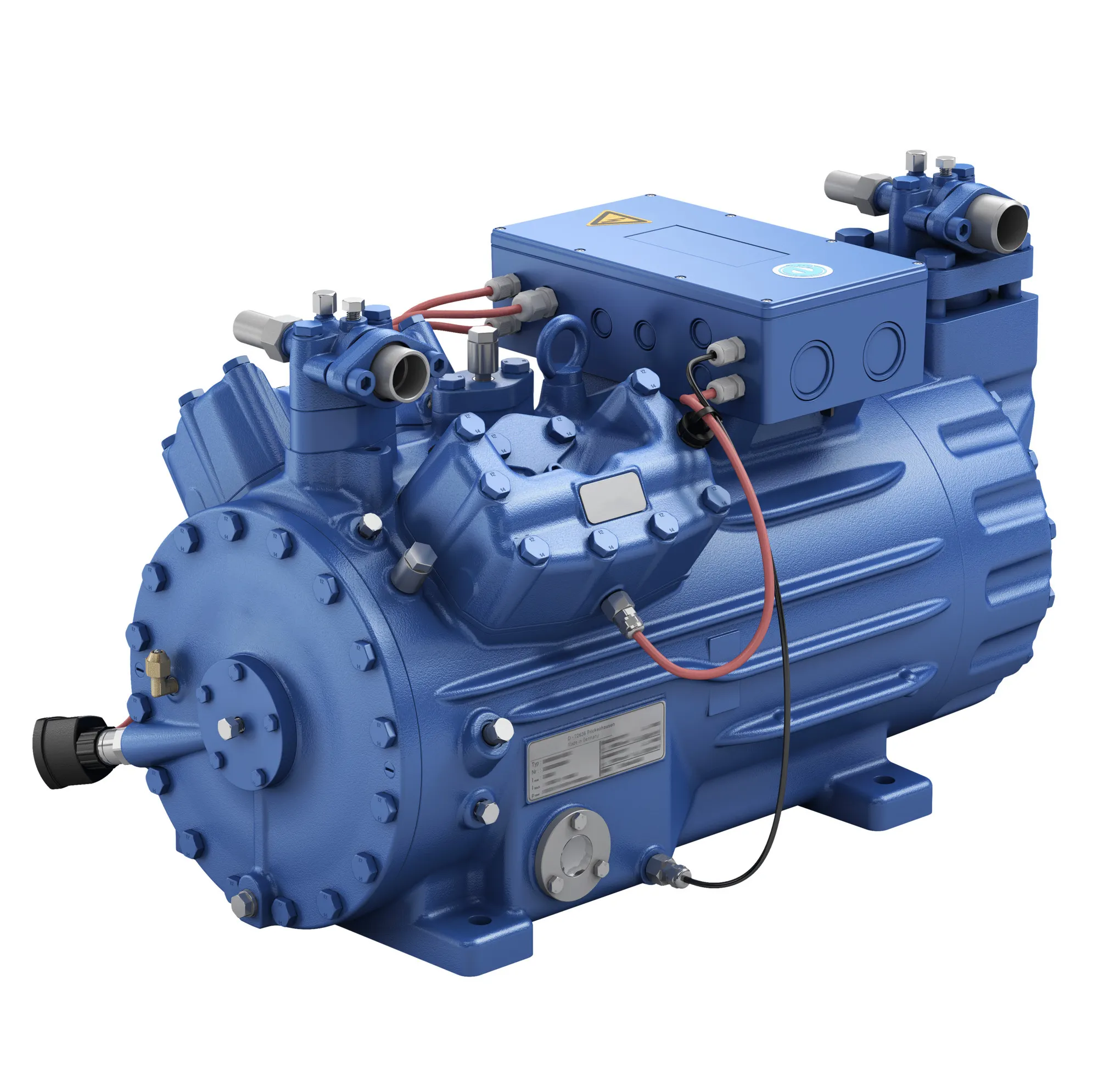

Compressor HGZX7/2110-4 R404A/R507
Discharge connection size [in]
1 3/8 in
Discharge connection size [mm]
35 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HGZ Two-stage Compressors
Frequency Hz
50
In scope of WEEE
No
IP class
IP 65
Legacy BOCK ID
14417
Liquid Subcooler
Without (not functional)
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGZX7/2110-4 R404A/R507
Motor protection
MP10 230V AC
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil service valve
No
Oil sump heater
220-240V AC
Oil temperature sensor
No
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HGZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants
R404A
SCIP dossier no.
3674593f-79aa-4f32-a903-6f30873656a7
SCIP dossier product name
HG(Z)(X)7/…. – series
Suction connection size [in]
2 1/8 in
Suction connection size [mm]
54 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Two-stage compressor
Thermal protection thermostat
No
Type
HGZX7
Type designation
HGZX7/2110-4 R404A/R507
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
