097C5756

Part Number: 097C5756
097C5756
Manufacturer
Danfoss
Part number
097C5756
Category

Product Information

Extended Description

097C5756 Danfoss: Refrigerants: R744, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E85, Anti-vibration pads: Yes, Legacy BOCK ID: 16470
Gross weight
124.4 Kilogram
Net weight
112.5 Kilogram
Volume
237.223 Liter
EAN
5715162897898
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
4
Description

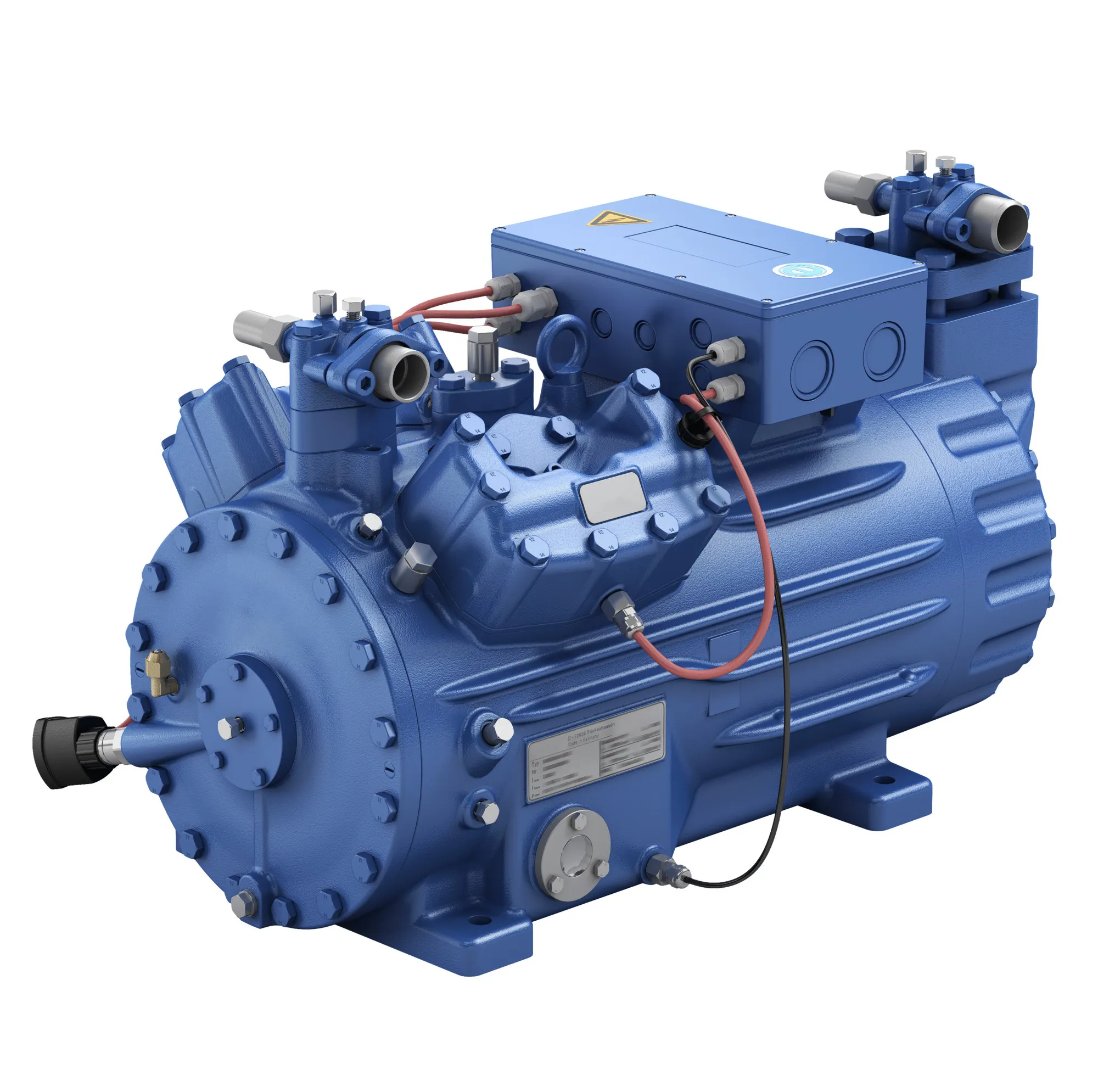

Compressor HGX24/55 MLP 6 CO2 T
Discharge connection size type
Standard
Discharge connection type
Blind flange
Family
HG CO2 (LSPM) Compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16470
Max pressure (PS) - high side
150 bar
Max pressure (PS) - low side
100 bar
Model number
HGX24/55 MLP 6 CO2 T
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil sump heater
220-240V AC (V2A)
Oil temperature sensor
No
Oil type
BOCKlub E85
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R744
SCIP dossier no.
aa816602-85c1-4b3d-a64b-18d375259a9f
SCIP dossier product name
HG(X)24/…. CO2 T/LT
Screw-in valve
No
Suction connection size type
Standard
Suction connection type
Blind flange
Technology
Semi-hermetic CO2 transcritical
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX24
Type designation
HGX24/55 MLP 6 CO2 T
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
