097C5781

Part Number: 097C5781
097C5781
Manufacturer
Danfoss
Part number
097C5781
Category

Product Information

Extended Description

097C5781 Danfoss: Refrigerants: R744, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E85, Anti-vibration pads: Yes, Legacy BOCK ID: 16548
Gross weight
262.7 Kilogram
Net weight
240.9 Kilogram
Volume
428.8 Liter
EAN
5715162898147
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
6
Description

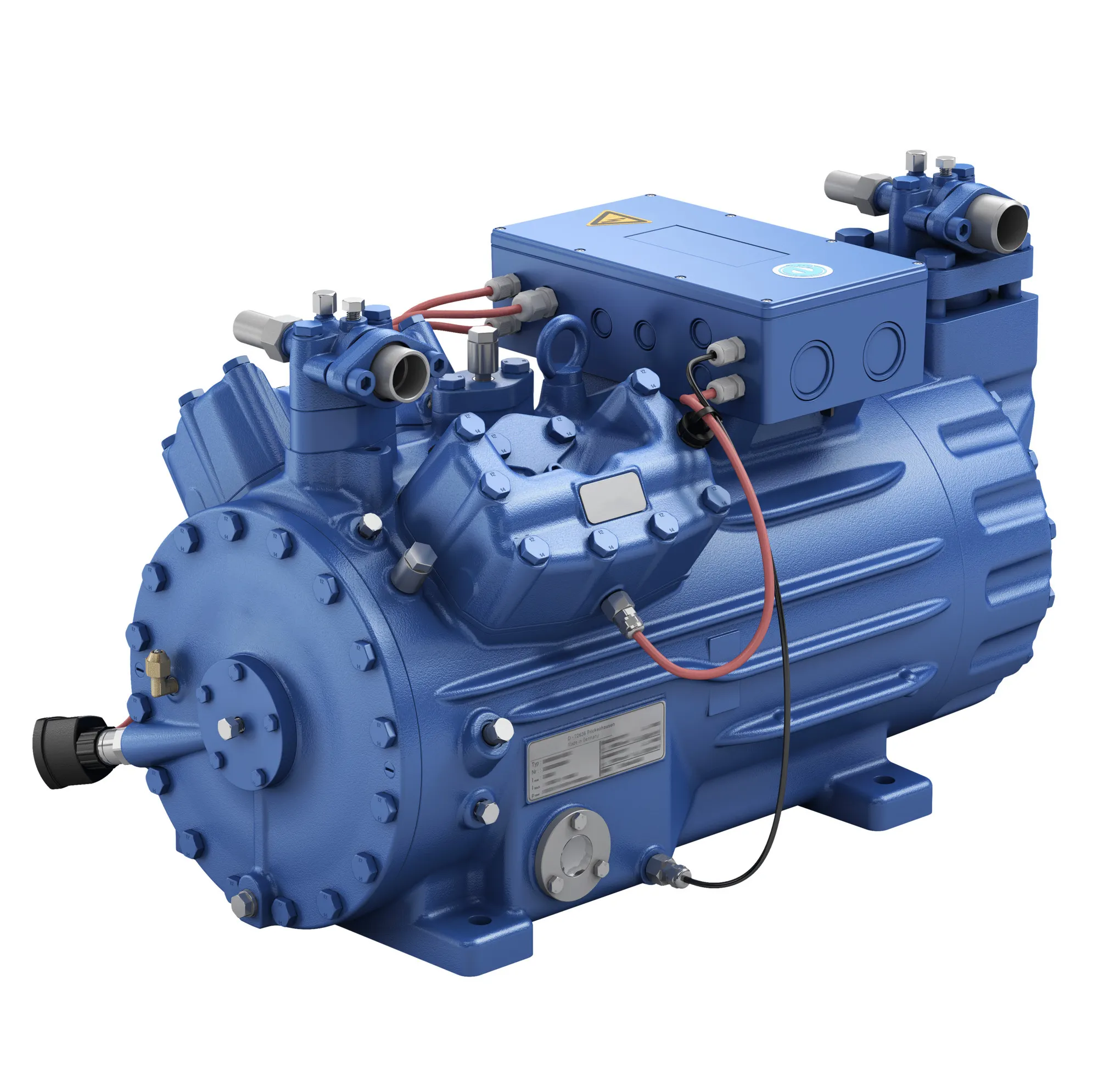

Compressor HGX46/310 SP 49 CO2 T
Discharge connection size type
Standard
Discharge connection type
Blind flange
Family
HG CO2 (LSPM) Compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16548
Max pressure (PS) - high side
150 bar
Max pressure (PS) - low side
100 bar
Model number
HGX46/310 SP 49 CO2 T
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil level regulator
No
Oil sump heater
220-240V AC (V2A)
Oil temperature sensor
No
Oil type
BOCKlub E85
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R744
SCIP dossier no.
346dec0b-2773-4e6b-b2de-974a2a1df49e
SCIP dossier product name
HG(X)46/…. CO2 T
Screw-in valve
No
Suction connection size type
Standard
Suction connection type
Blind flange
Technology
Semi-hermetic CO2 transcritical
Thermal protection thermostat
No
Type
HGX46
Type designation
HGX46/310 SP 49 CO2 T
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
