097C5791

Part Number: 097C5791
097C5791
Manufacturer
Danfoss
Part number
097C5791
Category

Product Information

Extended Description

097C5791 Danfoss: Refrigerants: R404A; R407C; R452A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 60Hz, Oil type: BOCKlub E55, Anti-vibration pads: No, Legacy BOCK ID: 14550
Gross weight
57.01 Kilogram
Net weight
47.61 Kilogram
Volume
152.46 Liter
EAN
5715162640579
Anti-vibration pads
No
Applications
MBP,HBP
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 60Hz
Contain batteries
No
Cylinder
2
Description

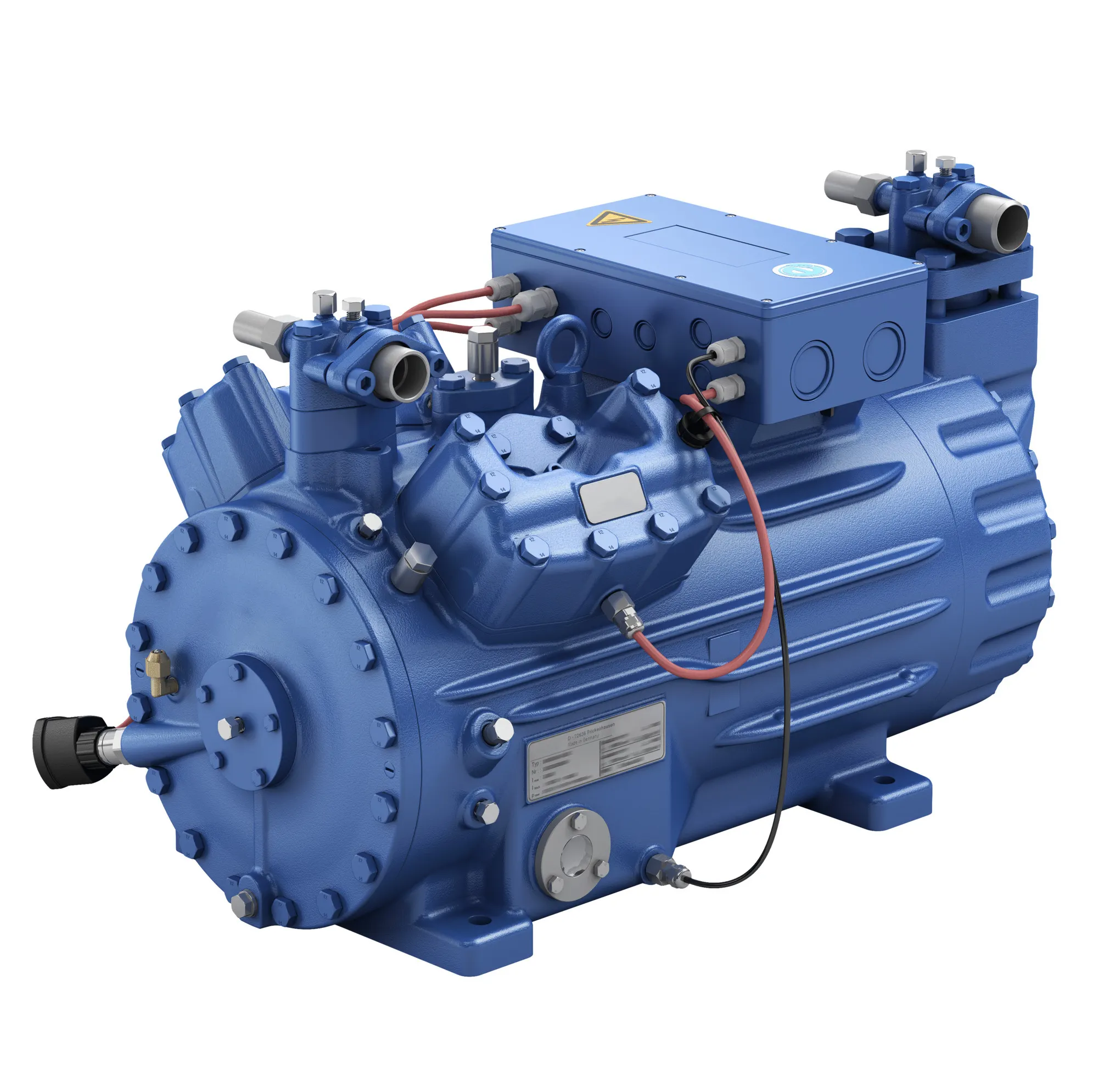

Compressor HGX12P/75-4
Discharge connection size [in]
1/2 in
Discharge connection size [mm]
12 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
60
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
14550
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX12P/75-4
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
110-240V AC
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R407C,R407F,R448A,R449A,R450A,R452A,R513A,R134a,R404A
SCIP dossier no.
bb70efe1-a42e-4e79-b905-4e324c30d6d0
SCIP dossier product name
HG(X)12/…. - series
Suction connection size [in]
5/8 in
Suction connection size [mm]
16 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX12P
Type designation
HGX12P/75-4
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
