097C5792

Part Number: 097C5792
097C5792
Manufacturer
Danfoss
Part number
097C5792
Category

Product Information

Extended Description

097C5792 Danfoss: Refrigerants: R744, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: C170E, Anti-vibration pads: Yes, Legacy BOCK ID: 16242
Gross weight
234.4 Kilogram
Net weight
212.6 Kilogram
Volume
428.8 Liter
EAN
5715162898246
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
4
Description

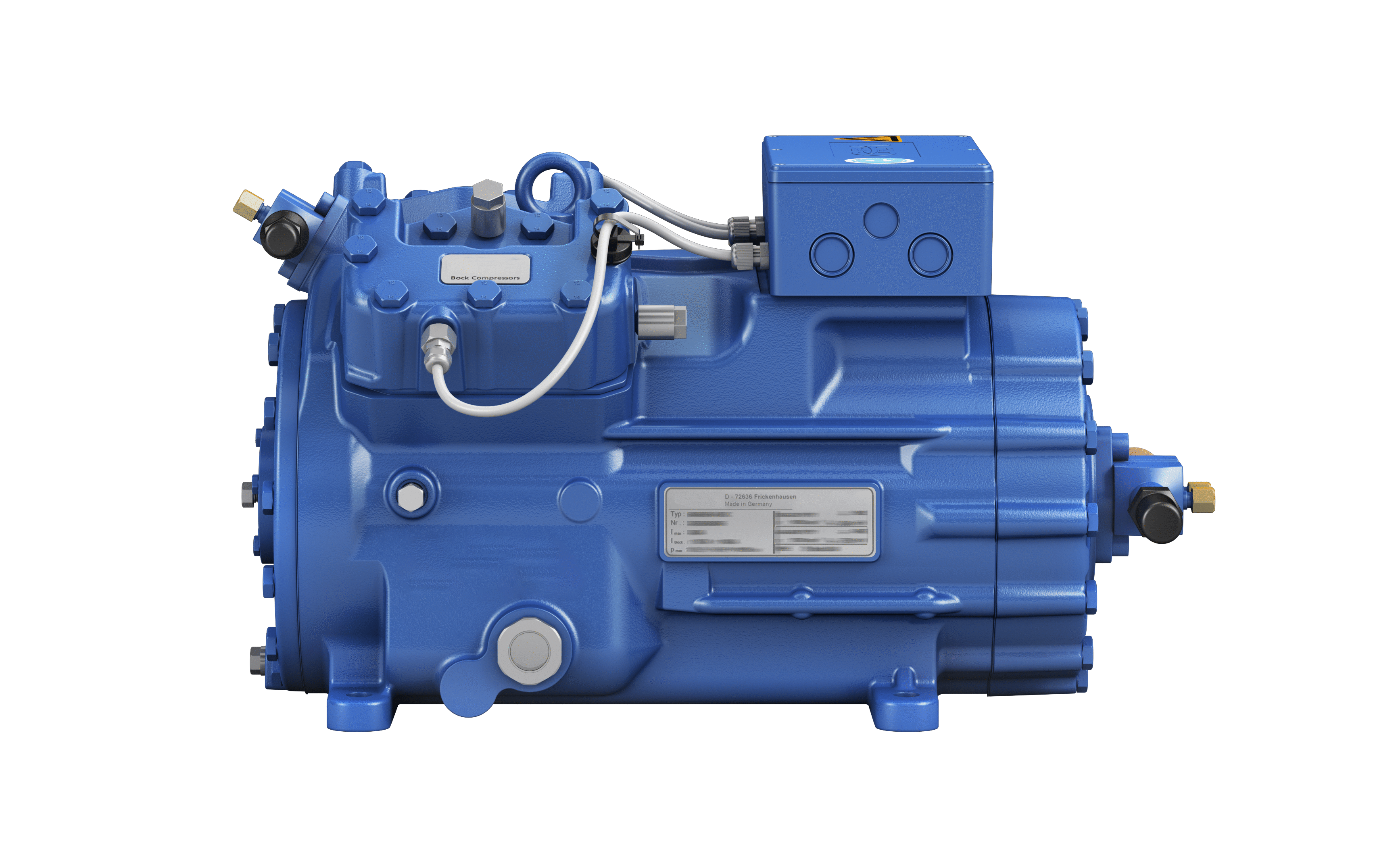

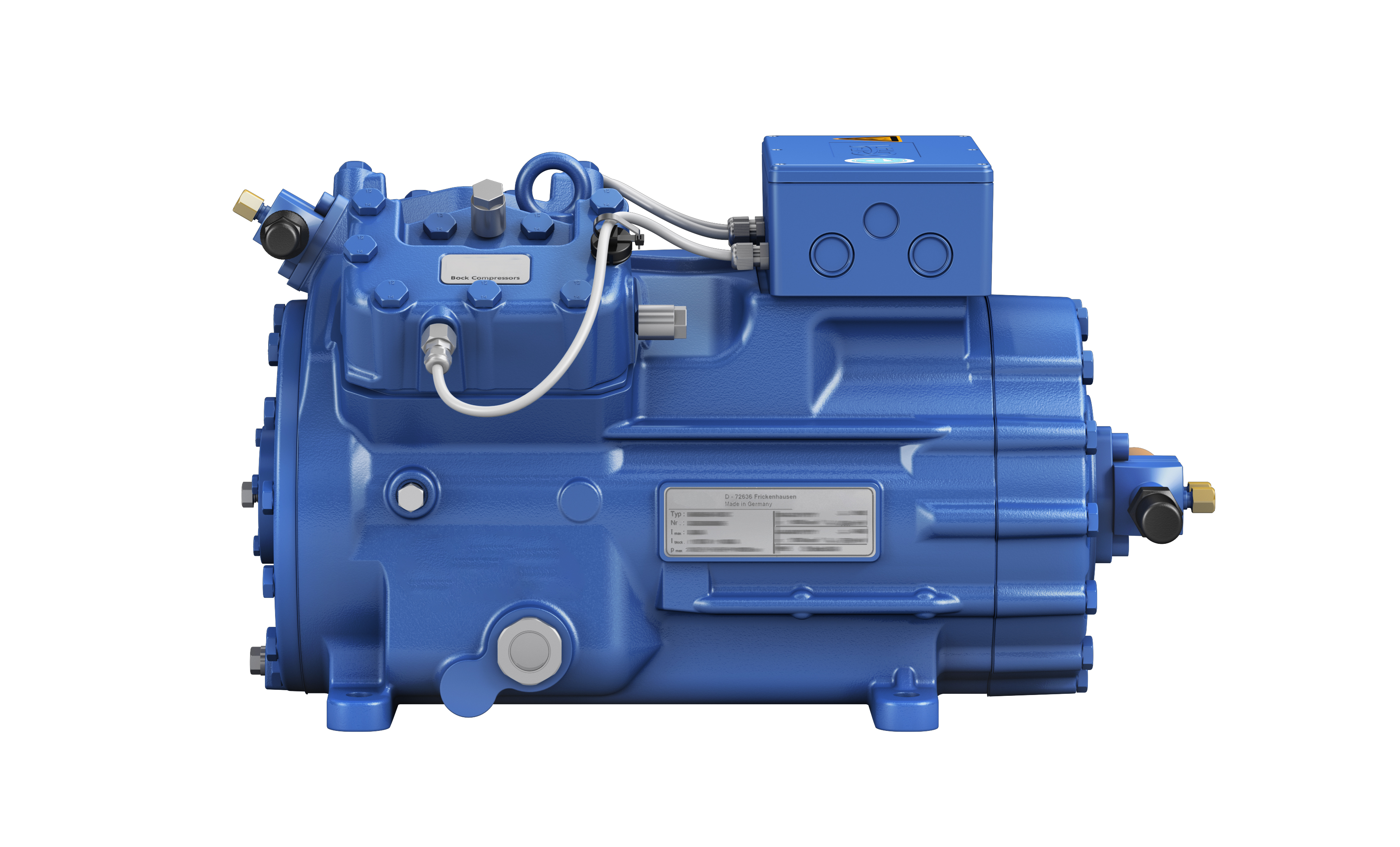

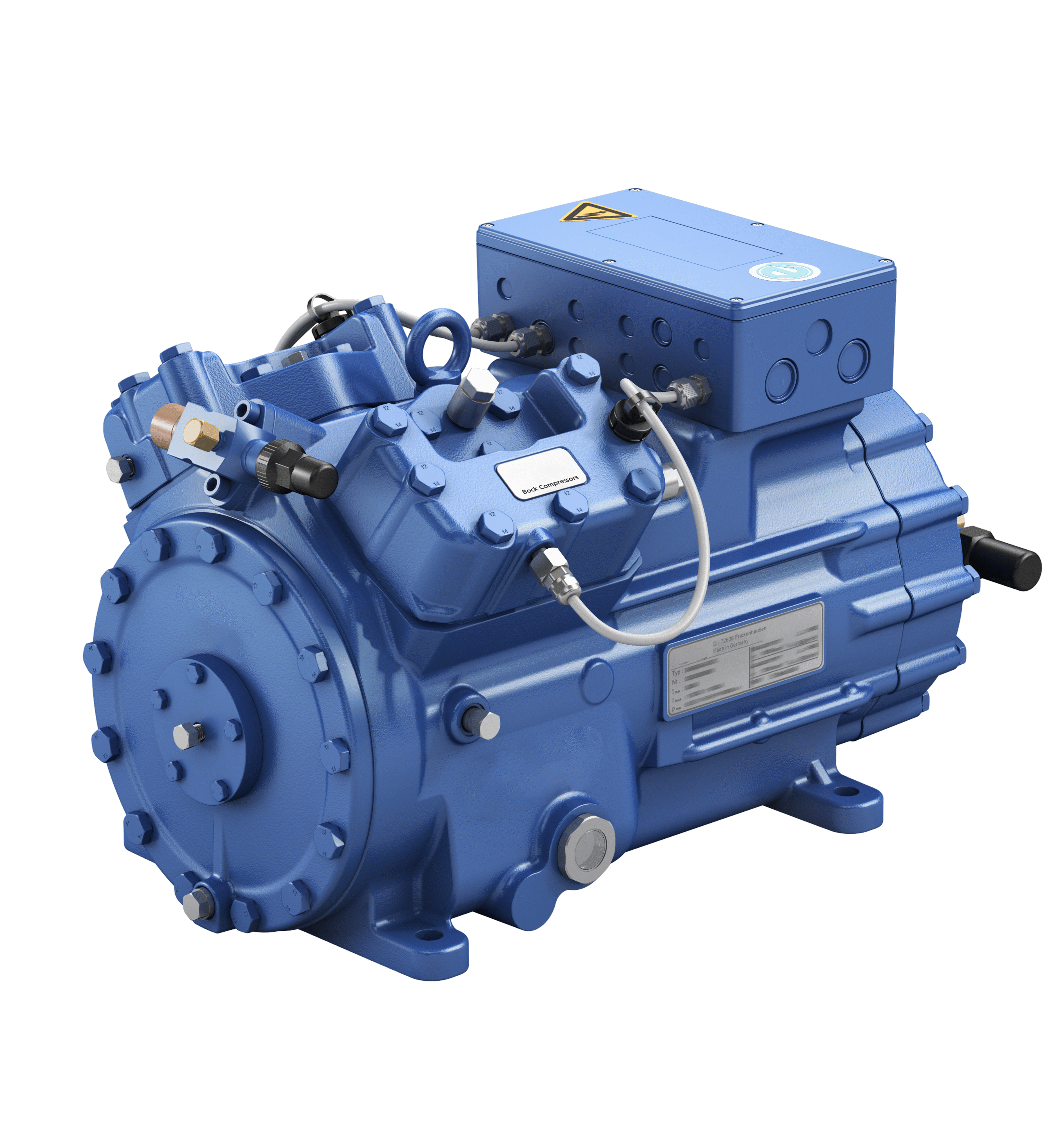

Compressor HGX34/150-4 SH CO2 T
Discharge connection size [in]
7/8 in
Discharge connection size [mm]
22 mm
Discharge connection size type
Non-standard
Discharge connection type
Soldering/welding
Family
HG CO2 T Compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16242
Max pressure (PS) - high side
150 bar
Max pressure (PS) - low side
100 bar
Model number
HGX34/150-4 SH CO2 T
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
DELTA-P II 220-240V - 1 - 50/60 Hz
Oil level regulator
No
Oil sump heater
220-240V AC (V2A)
Oil temperature sensor
No
Oil type
C170E
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R744
SCIP dossier no.
3349a591-a927-4d1d-8ca6-9b04387c341d
SCIP dossier product name
HG(X)34/=E2=80=A6. CO2 T
Screw-in valve
No
Suction connection size [in]
1 1/8 in
Suction connection size [mm]
28 mm
Suction connection size type
Non-standard
Suction connection type
Soldering/welding
Technology
Semi-hermetic CO2 transcritical
Thermal protection thermostat
2
Type
HGX34
Type designation
HGX34/150-4 SH CO2 T
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
