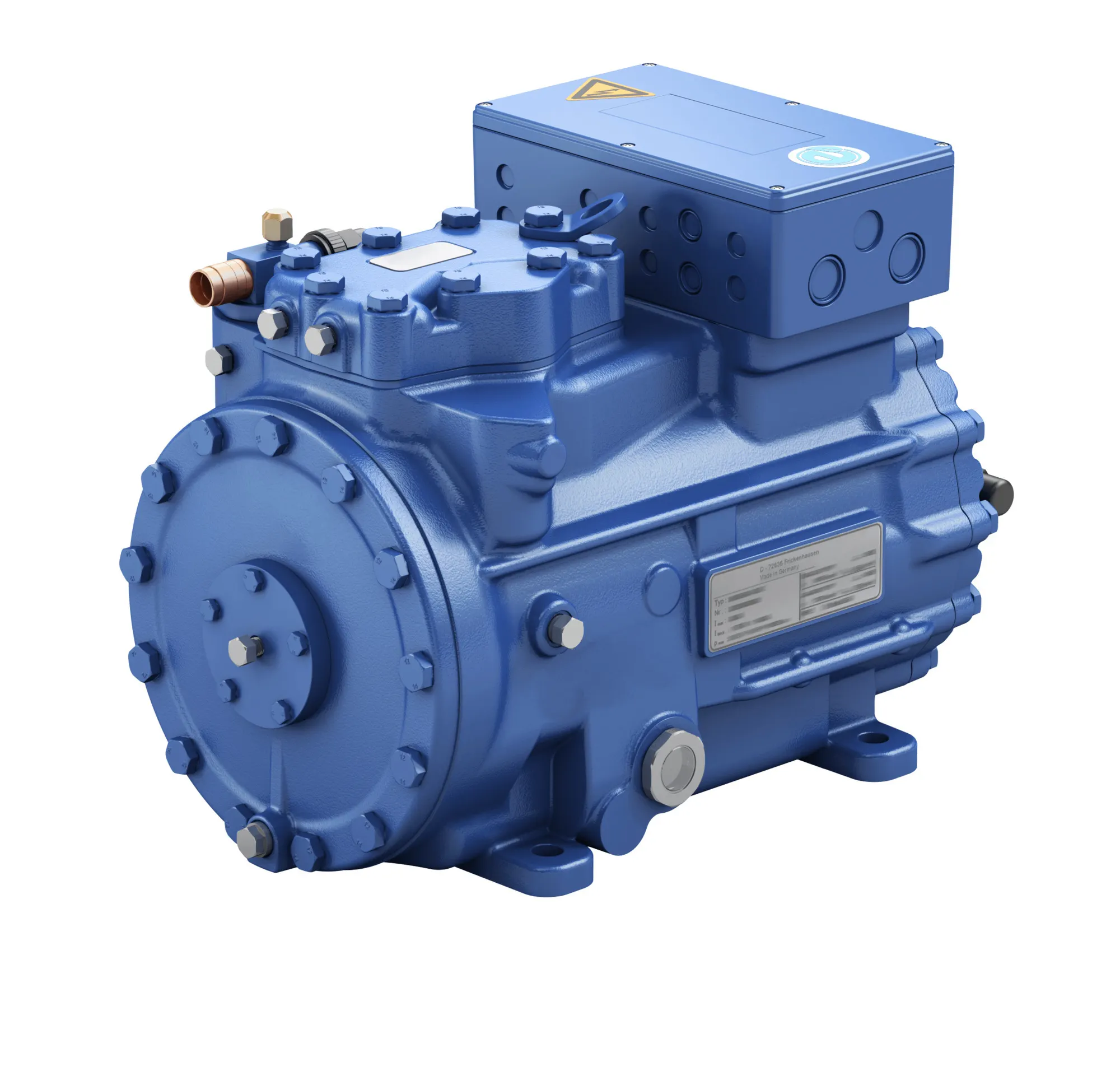

097C6191

Part Number: 097C6191
097C6191
Manufacturer
Danfoss
Part number
097C6191
Category

Product Information

Extended Description

097C6191 Danfoss: Refrigerants: R404A; R407A; R134a; R1234ze; R407F; R455A; R407C; R452A; R454C; R513A; R1234yf; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16270
Gross weight
83.4 Kilogram
Net weight
74 Kilogram
Volume
152.46 Liter
EAN
5715162948422
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
2
Discharge connection size [in]
5/8 in
Discharge connection size [mm]
16 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
LG compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16270
Max pressure (PS) - high side
32 bar
Max pressure (PS) - low side
19 bar
Model number
HGX22e/160 ML 2 LG
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
No
Oil type
BOCKlub E55
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R1234yf,R1234ze,R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R454C,R455A,R513A
Suction connection size [in]
7/8 in
Suction connection size [mm]
22 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
HGX22e
Type designation
HGX22e/160 ML 2 LG
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
