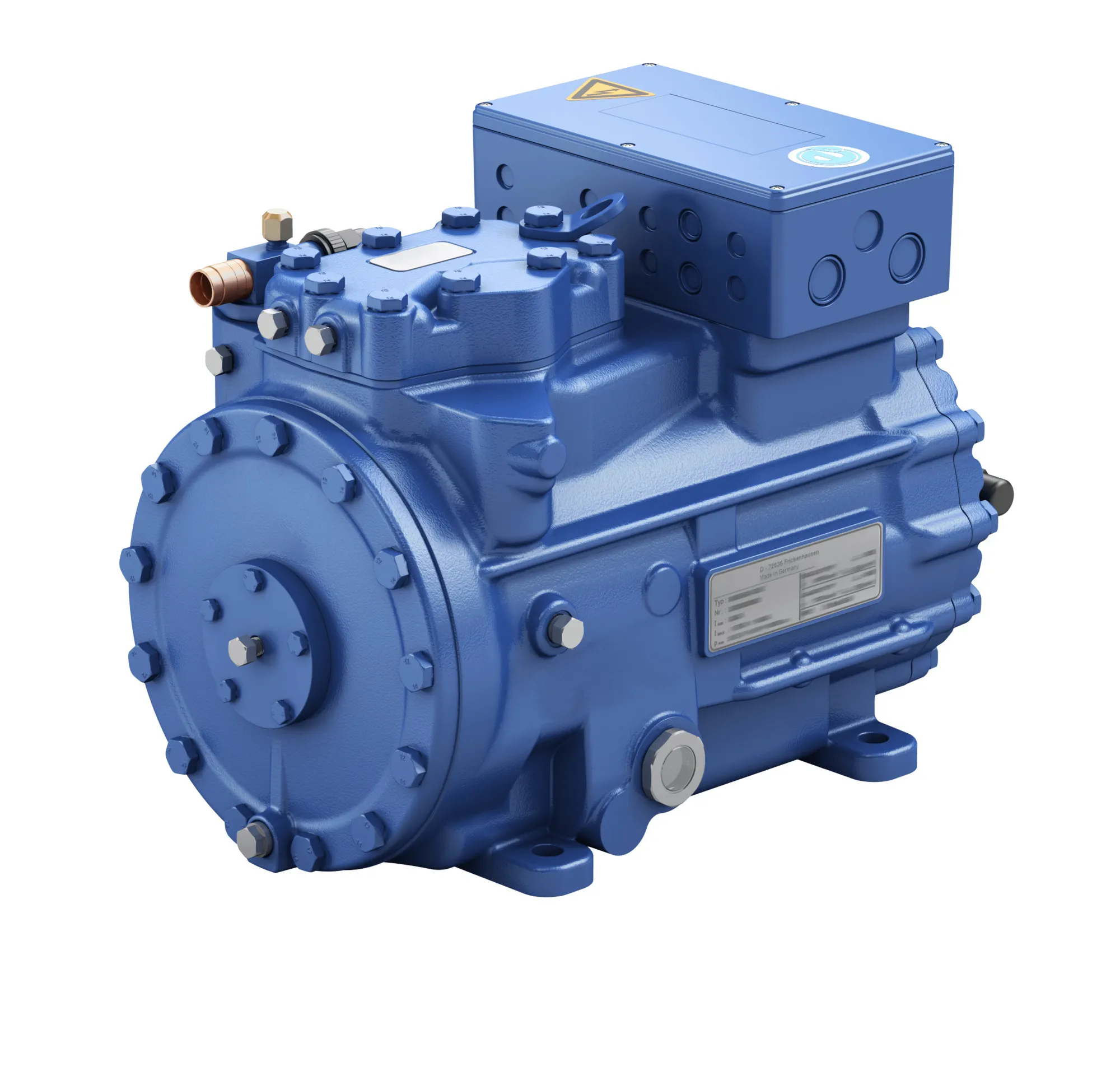

097C6209

Part Number: 097C6209
097C6209
Manufacturer
Danfoss
Part number
097C6209
Category

Product Information

Extended Description

097C6209 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 14942
Gross weight
234.7 Kilogram
Net weight
212.9 Kilogram
Volume
428.8 Liter
EAN
5715162948767
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6
Discharge connection size [in]
1 3/8 in
Discharge connection size [mm]
35 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
14942
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX56e/995-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil sump heater
220-240V AC
Oil temperature sensor
Pt1000
Oil type
BOCKlub E55
Position of connection to discharge valve
Left seen from oil pump
Position of connection to suction valve
Left seen from oil pump
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407C,R407F,R448A,R449A,R450A,R452A,R513A,R407A
Step protection for CR/SU
No
Suction connection size [in]
2 1/8 in
Suction connection size [mm]
54 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
HGX56e
Type designation
HGX56e/995-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
