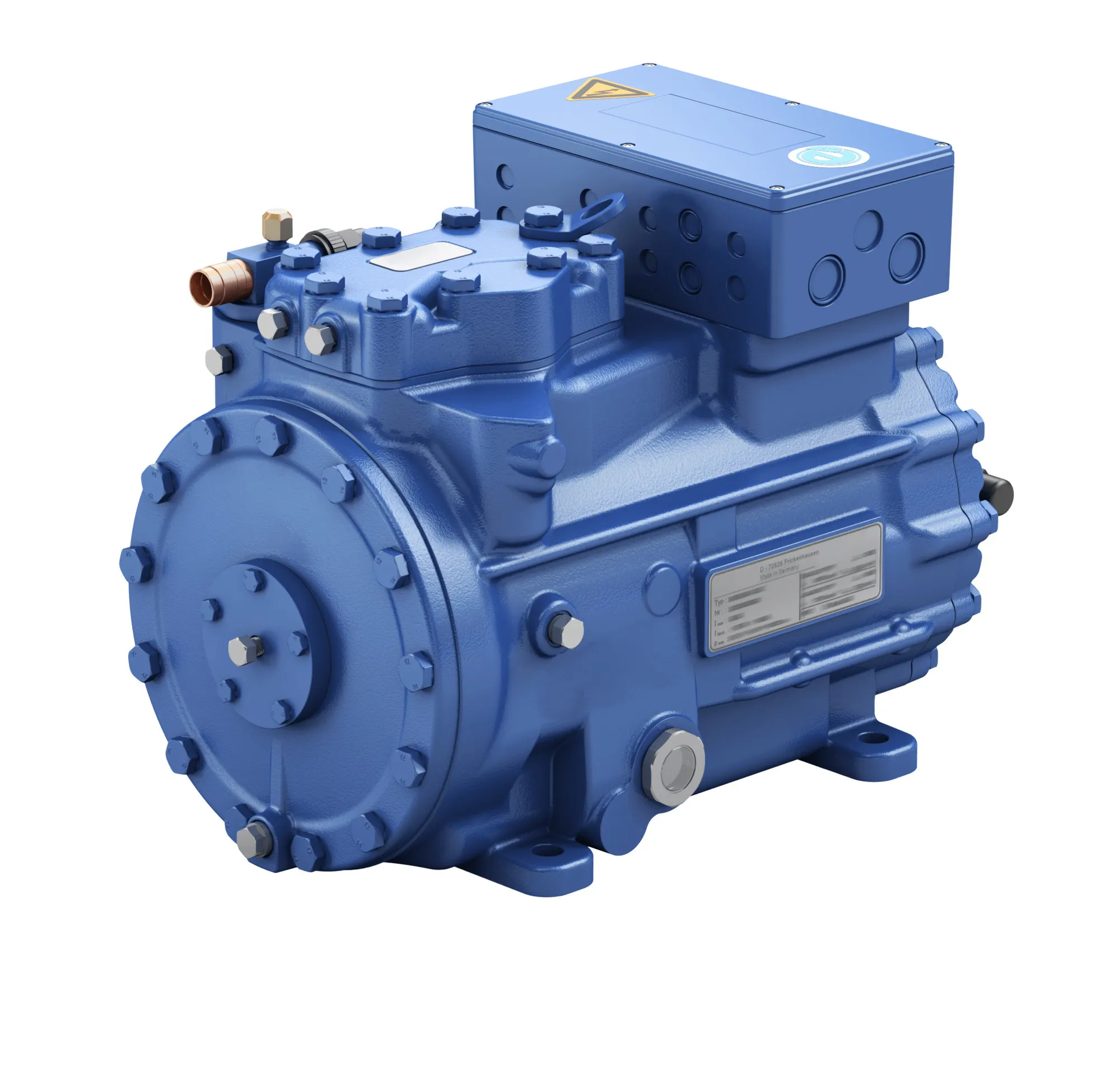

097C6210

Part Number: 097C6210
097C6210
Manufacturer
Danfoss
Part number
097C6210
Category

Product Information

Extended Description

097C6210 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 11497
Gross weight
323.8 Kilogram
Net weight
302 Kilogram
Volume
428.8 Liter
EAN
5715162948774
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6
Discharge connection size [in]
1 5/8 in
Discharge connection size [mm]
42 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
11497
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX66e/2070-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil service valve
Yes
Oil sump heater
220-240V AC
Oil temperature sensor
Pt1000
Oil type
BOCKlub E55
Position of connection to discharge valve
Left seen from oil pump
Position of connection to suction valve
Left seen from oil pump
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407C,R407F,R448A,R449A,R450A,R452A,R513A,R407A
Step protection for CR/SU
No
Suction connection size [in]
2 5/8 in
Suction connection size [mm]
64 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
HGX66e
Type designation
HGX66e/2070-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection Sound pressure level and sound power level in dB for HGX12P until HGX88e and HAX44e with R404A Torques for screwed connections Torques for screwed connections Assembly instruction adaptor plate Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG22e MC- HG22e, 14792 Semi-hermetic compressors, Reciprocating compressor HG, HG22e
