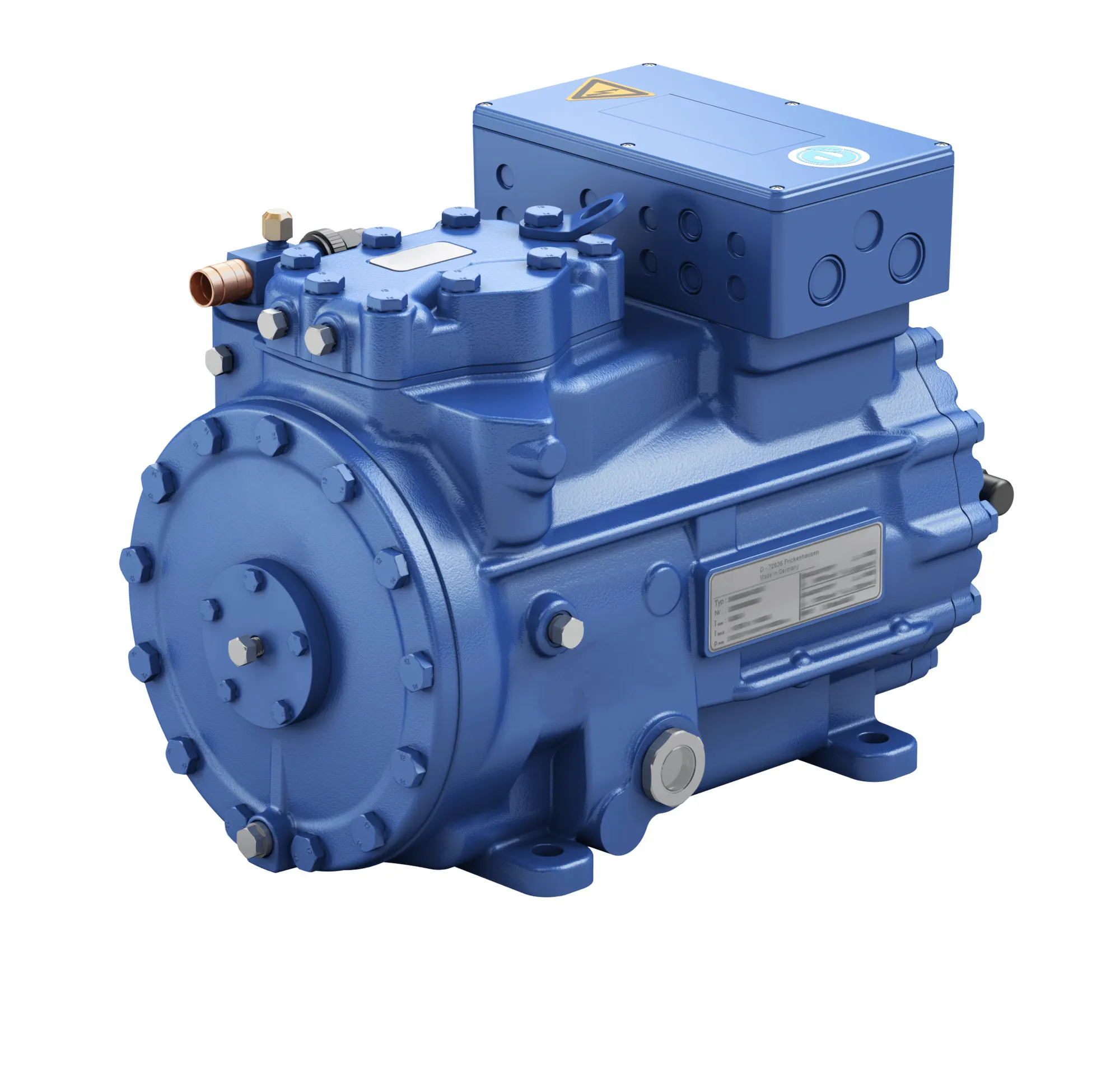

097C6235

Part Number: 097C6235
097C6235
Manufacturer
Danfoss
Part number
097C6235
Category

Product Information

Extended Description

097C6235 Danfoss: Refrigerants: R404A; R407A; R407F; R448A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16022
Gross weight
88.9 Kilogram
Net weight
79.5 Kilogram
Volume
152.46 Liter
EAN
5715162953198
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
2
Discharge connection size [in]
1/2 in
Discharge connection size [mm]
12 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 44
Legacy BOCK ID
16022
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HAX22e/160-4
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
MP55 230V - 1 - 50/60 Hz, IP20
Oil sump heater
110-240V AC
Oil type
BOCKlub E55
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HA
Refrigerants
R404A,R407A,R407F,R448A,R449A
Suction connection size [in]
5/8 in
Suction connection size [mm]
16 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic air cooled
Thermal protection thermostat
1
Type
HAX22e
Type designation
HAX22e/160-4
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
