097C6251

Part Number: 097C6251
097C6251
Manufacturer
Danfoss
Part number
097C6251
Category

Product Information

Extended Description

097C6251 Danfoss: Refrigerants: R22, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub A46, Anti-vibration pads: No, Legacy BOCK ID: 17253
Gross weight
241.3 Kilogram
Net weight
219.5 Kilogram
Volume
428.8 Liter
EAN
5715162954287
Anti-vibration pads
No
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue - standard (conductive coating)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6
Discharge connection size [in]
1 3/8 in
Discharge connection size [mm]
35 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG ATEX Compressors
Frequency Hz
50
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
17253
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
EX-HG56e/850-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil sump heater
220-240V AC
Oil type
BOCKlub A46
Product group
Semi-hermetic compressors
Product Name Description

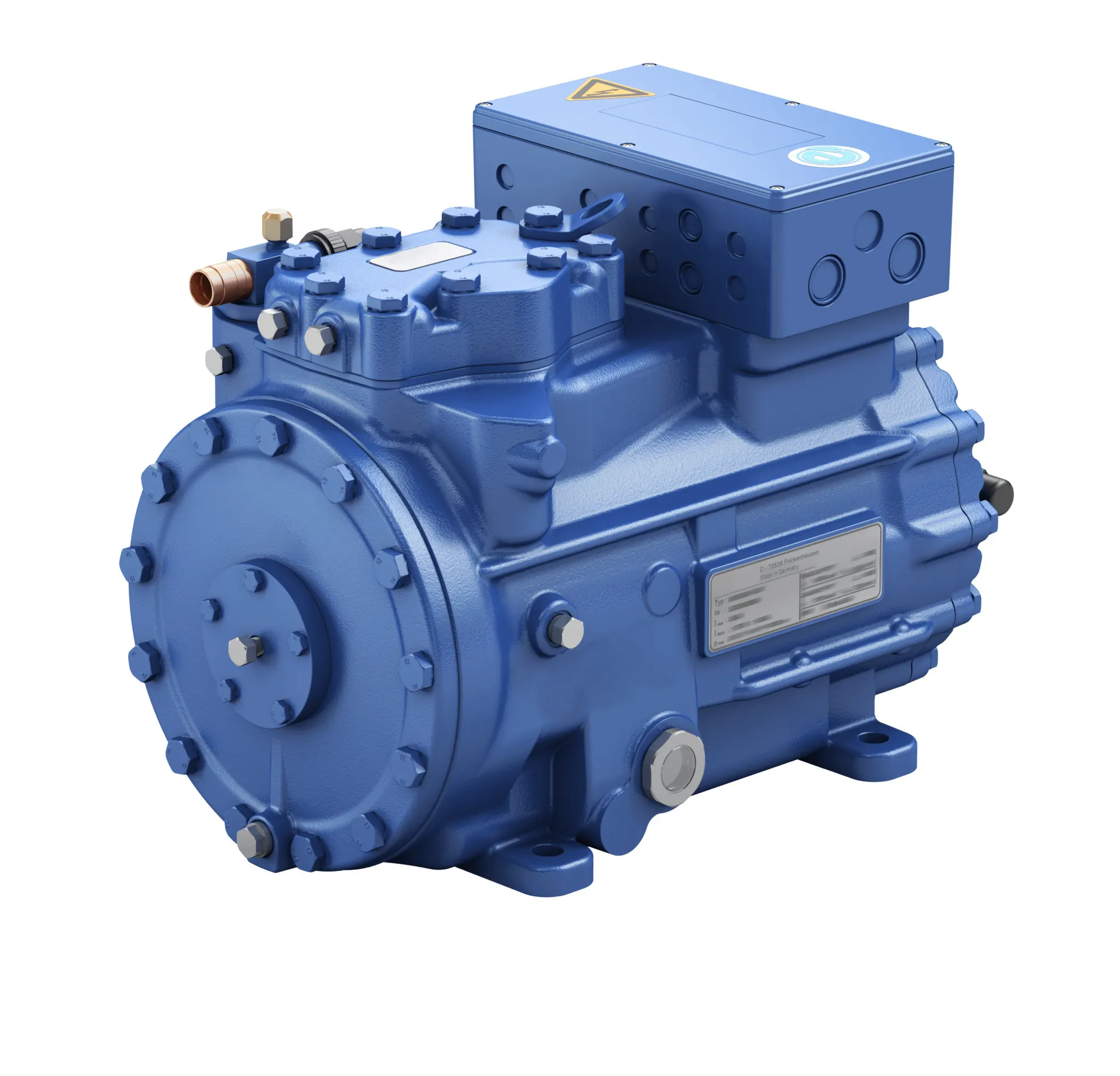

Reciprocating compressor HG
Refrigerants
R22
Step protection for CR/SU
No
Suction connection size [in]
2 1/8 in
Suction connection size [mm]
54 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic ATEX
Thermal protection thermostat
3
Type
EX-HG56e
Type designation
EX-HG56e/850-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
