097C6257

Part Number: 097C6257
097C6257
Manufacturer
Danfoss
Part number
097C6257
Category

Product Information

Extended Description

097C6257 Danfoss: Refrigerants: R404A; R134a; R1234ze; R407F; R455A; R407C; R452A; R454C; R513A; R1234yf; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: SEZ22, Anti-vibration pads: Yes, Legacy BOCK ID: 14681
Gross weight
59 Kilogram
Net weight
49.6 Kilogram
Volume
152.46 Liter
EAN
5715162955970
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
2
Discharge connection size [in]
1/2 in
Discharge connection size [mm]
12 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
LG compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
14681
Max pressure (PS) - high side
32 bar
Max pressure (PS) - low side
19 bar
Model number
HGX12P/90 ML 2 LG
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
110-240V AC
Oil type
SEZ22
Product group
Semi-hermetic compressors
Product Name Description

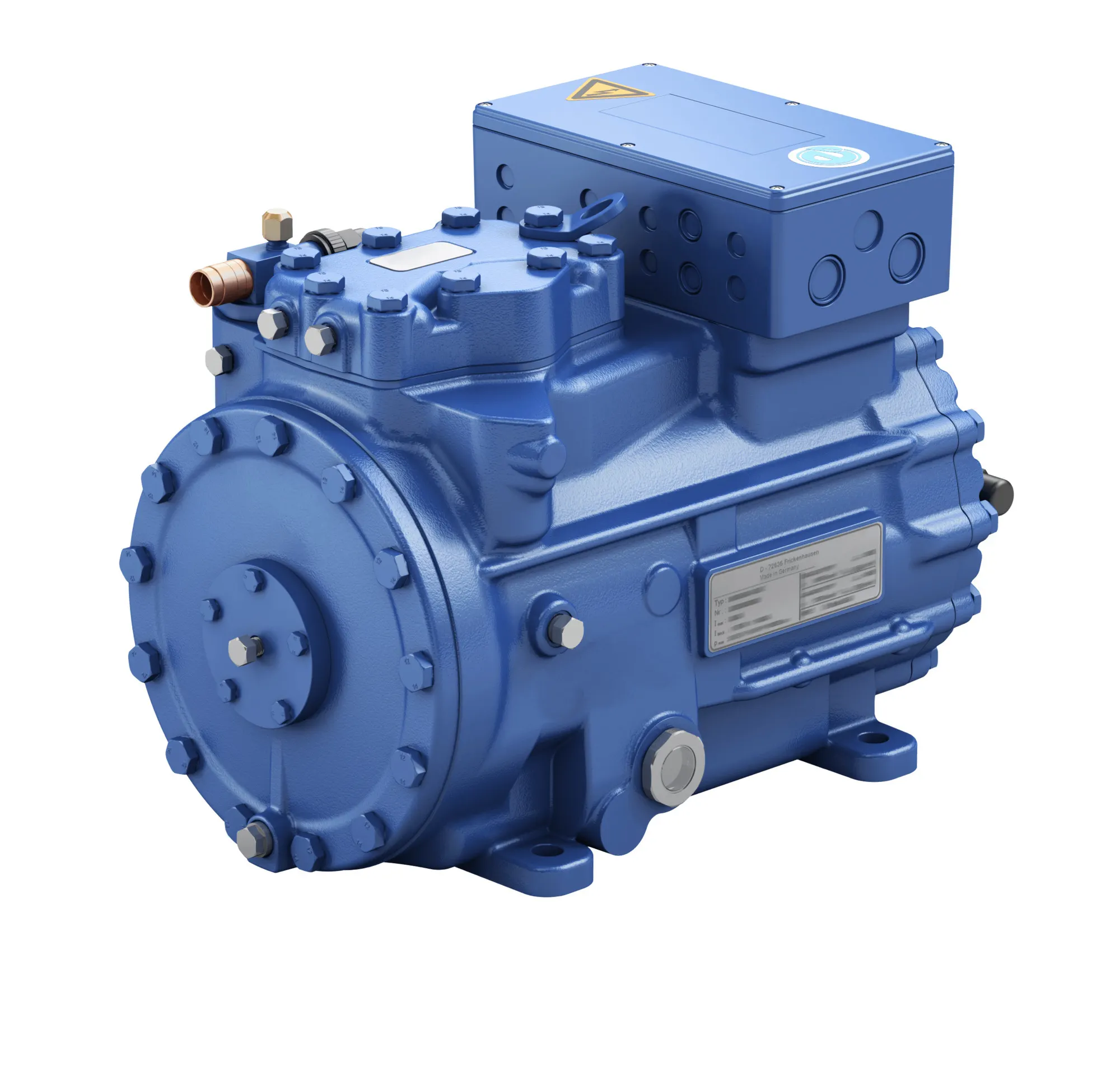

Reciprocating compressor HG
Refrigerants
R1234yf,R1234ze,R134a,R404A,R407C,R407F,R448A,R449A,R450A,R452A,R454C,R455A,R513A
Suction connection size [in]
5/8 in
Suction connection size [mm]
16 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
1
Type
HGX12P
Type designation
HGX12P/90 ML 2 LG
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection Sound pressure level and sound power level in dB for HGX12P until HGX88e and HAX44e with R404A Torques for screwed connections Torques for screwed connections Assembly instruction adaptor plate Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG22e MC- HG22e, 14792 Semi-hermetic compressors, Reciprocating compressor HG, HG22e
