097C6265

Part Number: 097C6265
097C6265
Manufacturer
Danfoss
Part number
097C6265
Category

Product Information

Extended Description

097C6265 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 14299
Gross weight
541.2 Kilogram
Net weight
482.3 Kilogram
Volume
657.816 Liter
EAN
5715162956342
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
1x 230V AC,50/60Hz
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
8
Discharge connection size [mm]
52 mm
Discharge connection size type
Non-standard
Discharge connection type
Welding
Family
HG/HA compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
Intermediate flange/adapter
No
IP class
IP 65
Legacy BOCK ID
14299
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX88e/3235-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Mounting position capacity regulator
Serial position
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil service valve
Yes
Oil sump heater
220-240V AC
Oil temperature sensor
No
Oil type
BOCKlub E55
Position motor cover
Standard
Product group
Semi-hermetic compressors
Product Name Description

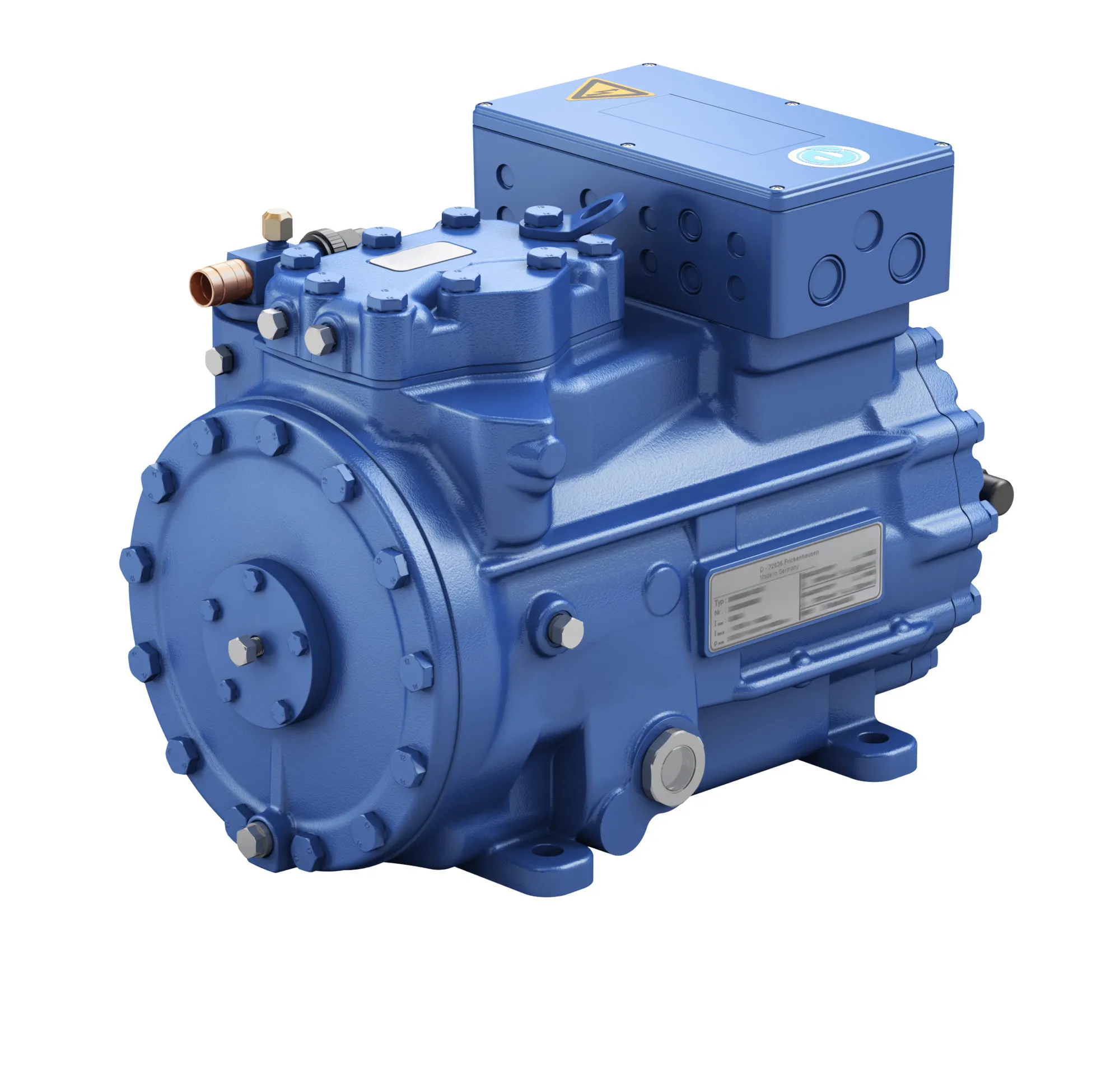

Reciprocating compressor HG
Refrigerants
R134a,R404A,R407C,R407F,R448A,R449A,R450A,R452A,R513A,R407A
Step protection for CR/SU
No
Suction connection size [in]
3 1/8 in
Suction connection size type
Non-standard
Suction connection type
Welding
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
1
Type
HGX88e
Type designation
HGX88e/3235-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection Sound pressure level and sound power level in dB for HGX12P until HGX88e and HAX44e with R404A Torques for screwed connections Torques for screwed connections Assembly instruction adaptor plate Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e Assembly instructions oil sump heater HG(HA)12P, 22(P)(e), 34(P)(e), 44e, HG56e, HG66e BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG22e MC- HG22e, 14792 Semi-hermetic compressors, Reciprocating compressor HG, HG22e
