097C6862

Part Number: 097C6862
097C6862
Manufacturer
Danfoss
Part number
097C6862
Category

Product Information

Extended Description

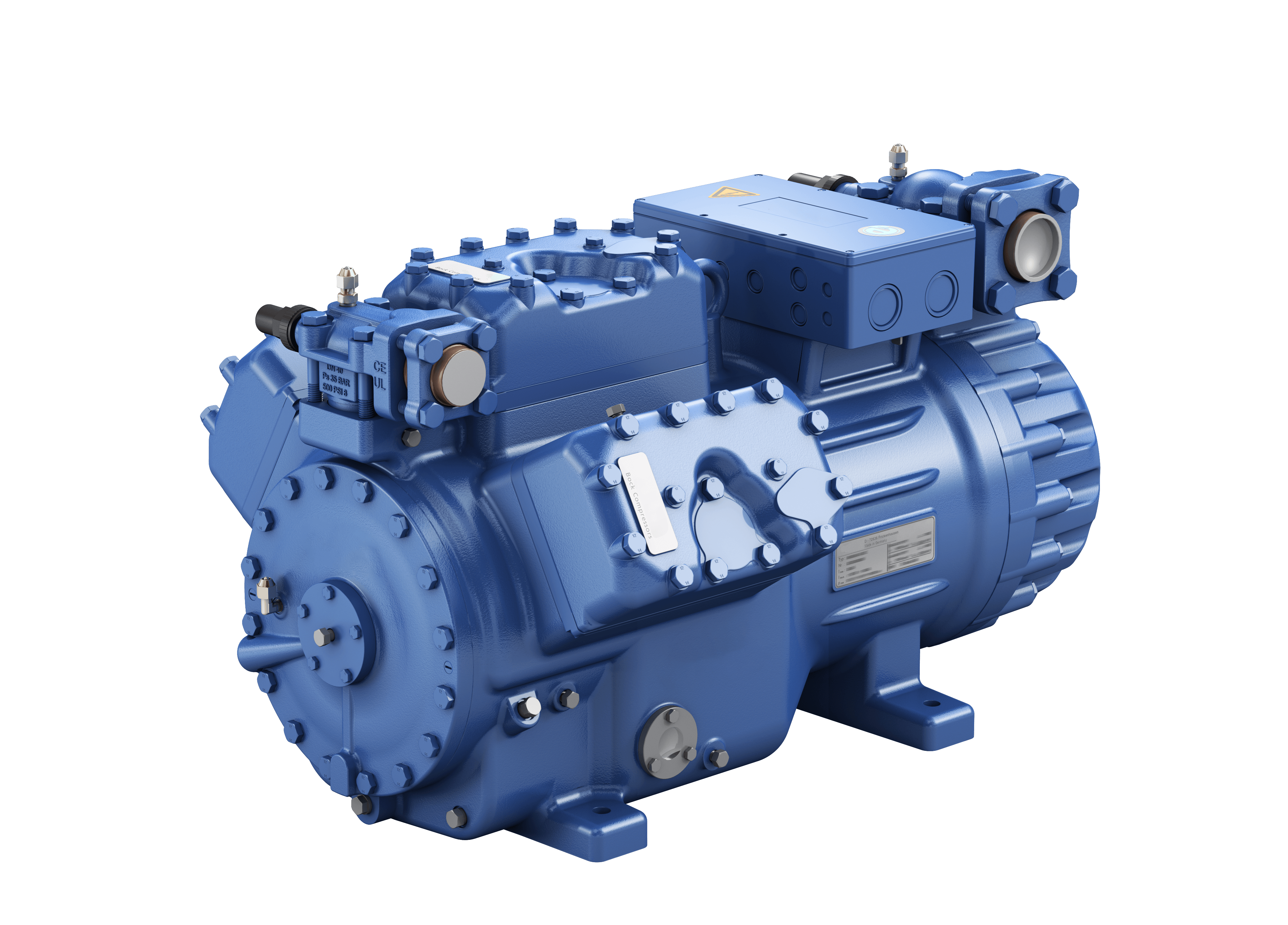

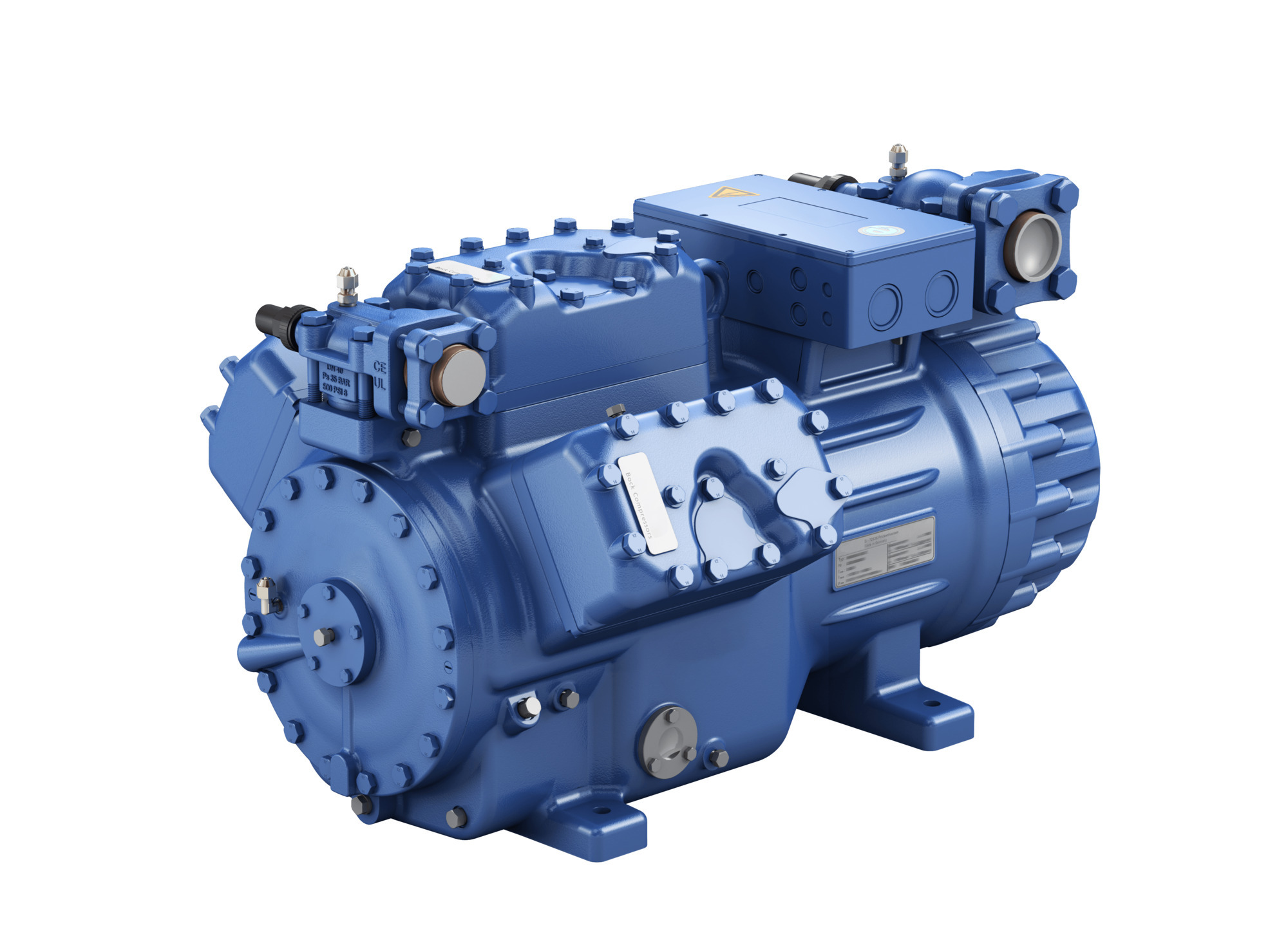

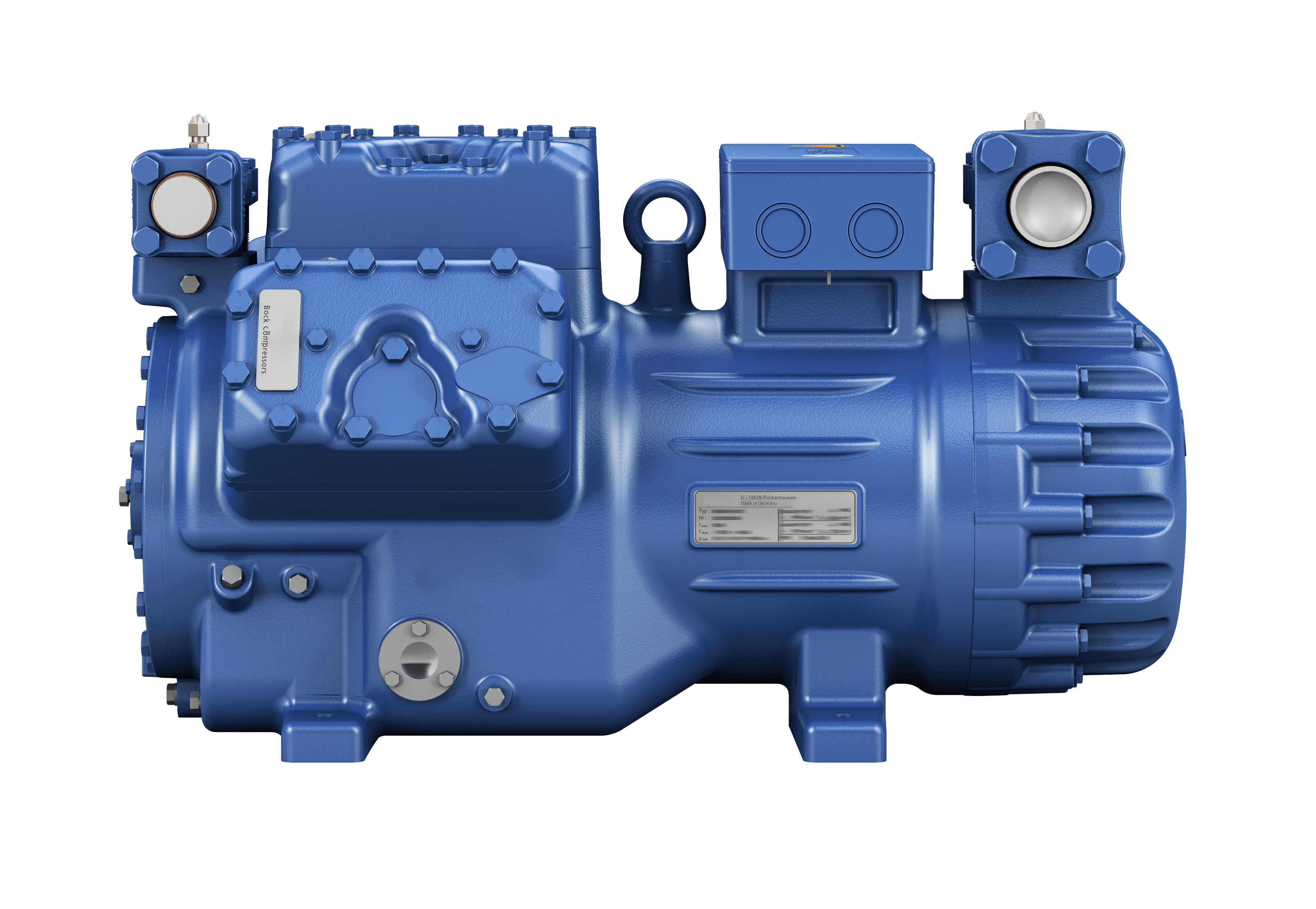

097C6862 Danfoss: Refrigerants: R1270; R290, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub G68, Anti-vibration pads: Yes, Legacy BOCK ID: 11505
Gross weight
342.2 Kilogram
Net weight
320.4 Kilogram
Volume
428.8 Liter
EAN
5715255012801
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
2 Cylinder cover prepared
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6
Discharge connection size [in]
1 5/8 in
Discharge connection size [mm]
42 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HC Compressors
Frequency Hz
50
Hot gas temperature sensor
No
IP class
IP 66
Legacy BOCK ID
11505
Max pressure (PS) - high side
32 bar
Max pressure (PS) - low side
19 bar
Model number
HG66e/2070-4 S HC
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Mounting position capacity regulator
Serial position
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil service valve
Yes
Oil sump heater
220-240V AC
Oil temperature sensor
Pt1000
Oil type
BOCKlub G68
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R1270,R290
Step protection for CR/SU
No
Suction connection size [in]
2 5/8 in
Suction connection size [mm]
64 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
3
Type
HG66e
Type designation
HG66e/2070-4 S HC
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
