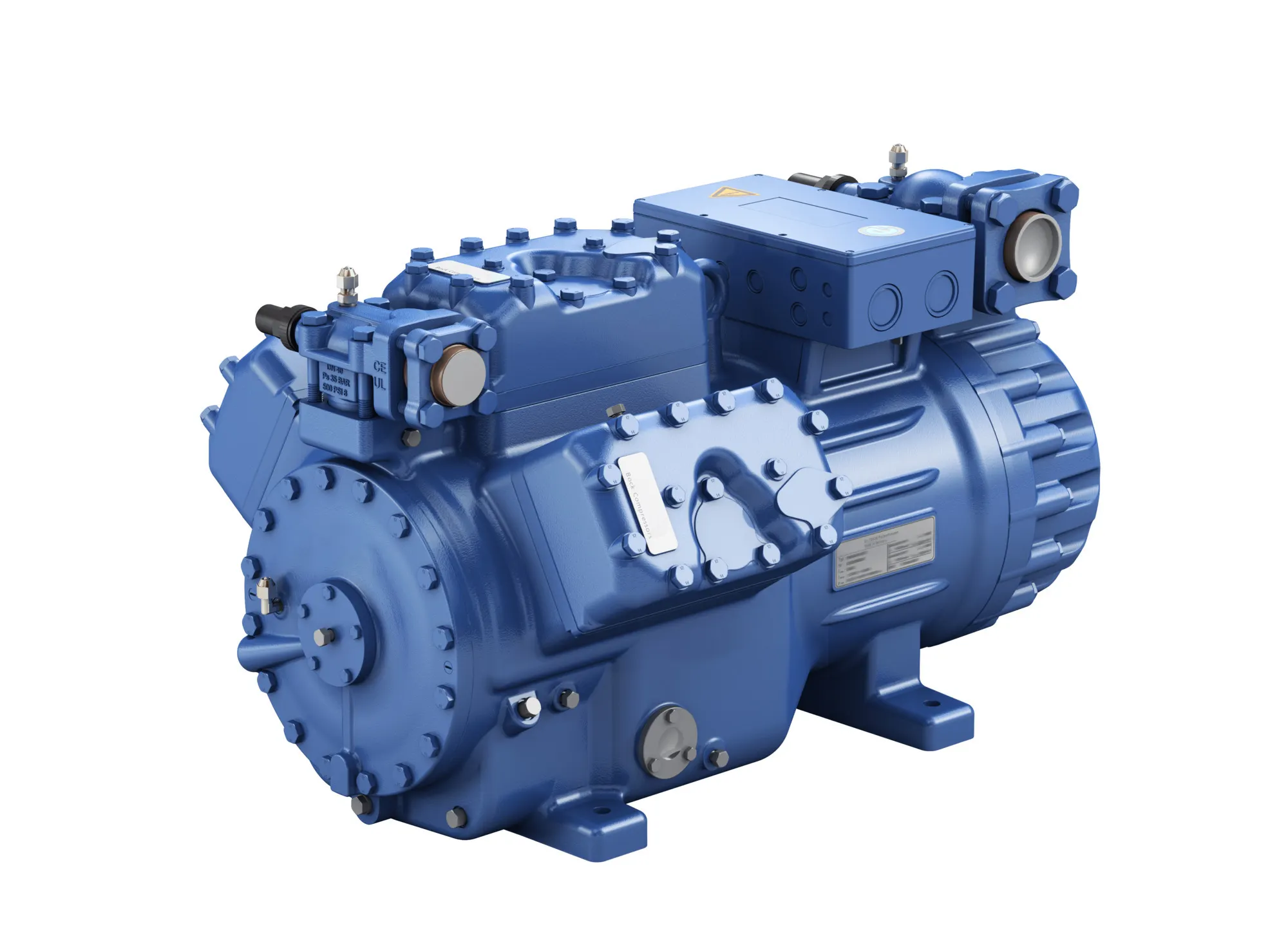

097C6866

Part Number: 097C6866
097C6866
Manufacturer
Danfoss
Part number
097C6866
Category

Product Information

Extended Description

097C6866 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 380-420V Y -3- 50Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 17332
Gross weight
107 Kilogram
Net weight
97.6 Kilogram
Volume
152.46 Liter
EAN
5715255012849
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
1x 230V AC,50Hz
Colour
Blue - standard (conductive coating)
Compressor power supply [V]
380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
4
Discharge connection size [in]
7/8 in
Discharge connection size [mm]
22 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG ATEX Compressors
Frequency Hz
50
IP class
IP 66
Legacy BOCK ID
17332
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
EX-HGX34e/255-4
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Mounting position capacity regulator
Serial position
Oil sump heater
220-240V AC
Oil type
BOCKlub E55
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
Suction connection size [in]
1 1/8 in
Suction connection size [mm]
28 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic ATEX
Thermal protection thermostat
2
Type
EX-HGX34e
Type designation
EX-HGX34e/255-4
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Anti-vibration pads INT69 GTML=C2=AE Diagnose INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection One-third octave and Octave bands in dB for HG34e, HG44e, HG56e, HG66e and HG88e with R404A Torques for screwed connections Torques for screwed connections Assembly instruction for bearings semi-hermetic compressors BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG66e HG66e.STEP Semi-hermetic compressors, Reciprocating compressor HG, HG66e MC- HGX66e, 11496 MC- HG66e, 11496
