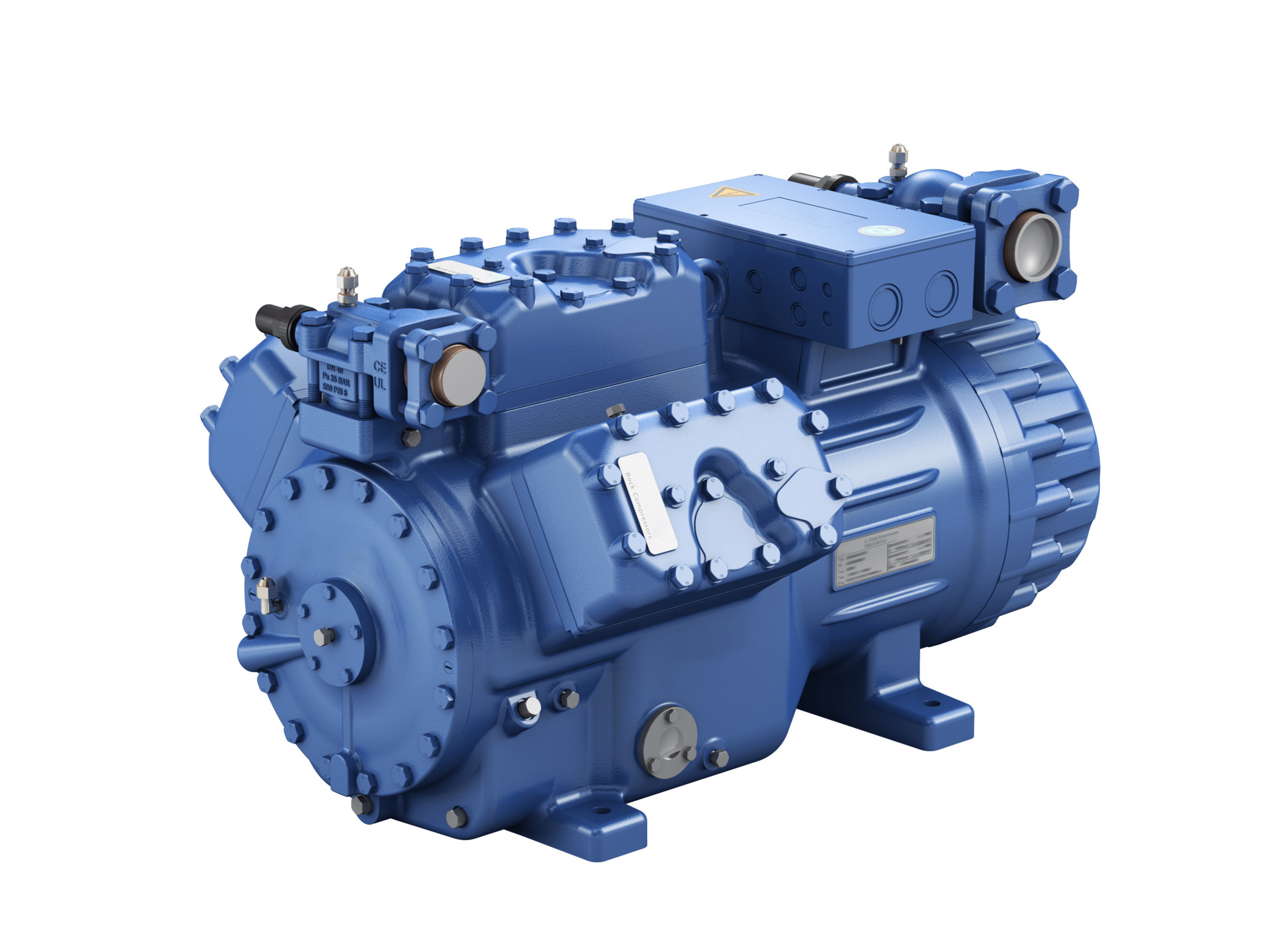

097C6872

Part Number: 097C6872
097C6872
Manufacturer
Danfoss
Part number
097C6872
Category

Product Information

Extended Description

097C6872 Danfoss: Refrigerants: R1270; R290, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: Synth68, Anti-vibration pads: Yes, Legacy BOCK ID: 16071
Gross weight
107.2 Kilogram
Net weight
97.8 Kilogram
Volume
152.46 Liter
EAN
5715255013372
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
4
Discharge connection size [in]
7/8 in
Discharge connection size [mm]
22 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HC Compressors
Frequency Hz
50
Hot gas temperature sensor
No
IP class
IP 66
Legacy BOCK ID
16071
Max pressure (PS) - high side
32 bar
Max pressure (PS) - low side
19 bar
Model number
HG34e/255-4 S HC
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
110-240V AC
Oil type
Synth68
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R1270,R290
Step protection for CR/SU
No
Suction connection size [in]
1 1/8 in
Suction connection size [mm]
28 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
HG34e
Type designation
HG34e/255-4 S HC
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
