097C6907

Part Number: 097C6907
097C6907
Manufacturer
Danfoss
Part number
097C6907
Category

Product Information

Extended Description

097C6907 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: No, Legacy BOCK ID: 17735
Gross weight
186.1 Kilogram
Net weight
169.2 Kilogram
Volume
271.656 Liter
EAN
5715255014201
Anti-vibration pads
No
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue - standard (conductive coating)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
4
Discharge connection size [in]
1 1/8 in
Discharge connection size [mm]
28 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG ATEX Compressors
Frequency Hz
50
Intermediate flange/adapter
No
IP class
IP 66
Legacy BOCK ID
17735
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
EX-HGX44e/770-4 S
Motor protection
INT69 G 24V DC, IP00
Oil differential pressure sensor
INT250 Ex, explosion-proof, equipment category 2 as per directive 2014/34/EU
Oil sump heater
No
Oil type
BOCKlub E55
Product group
Semi-hermetic compressors
Product Name Description

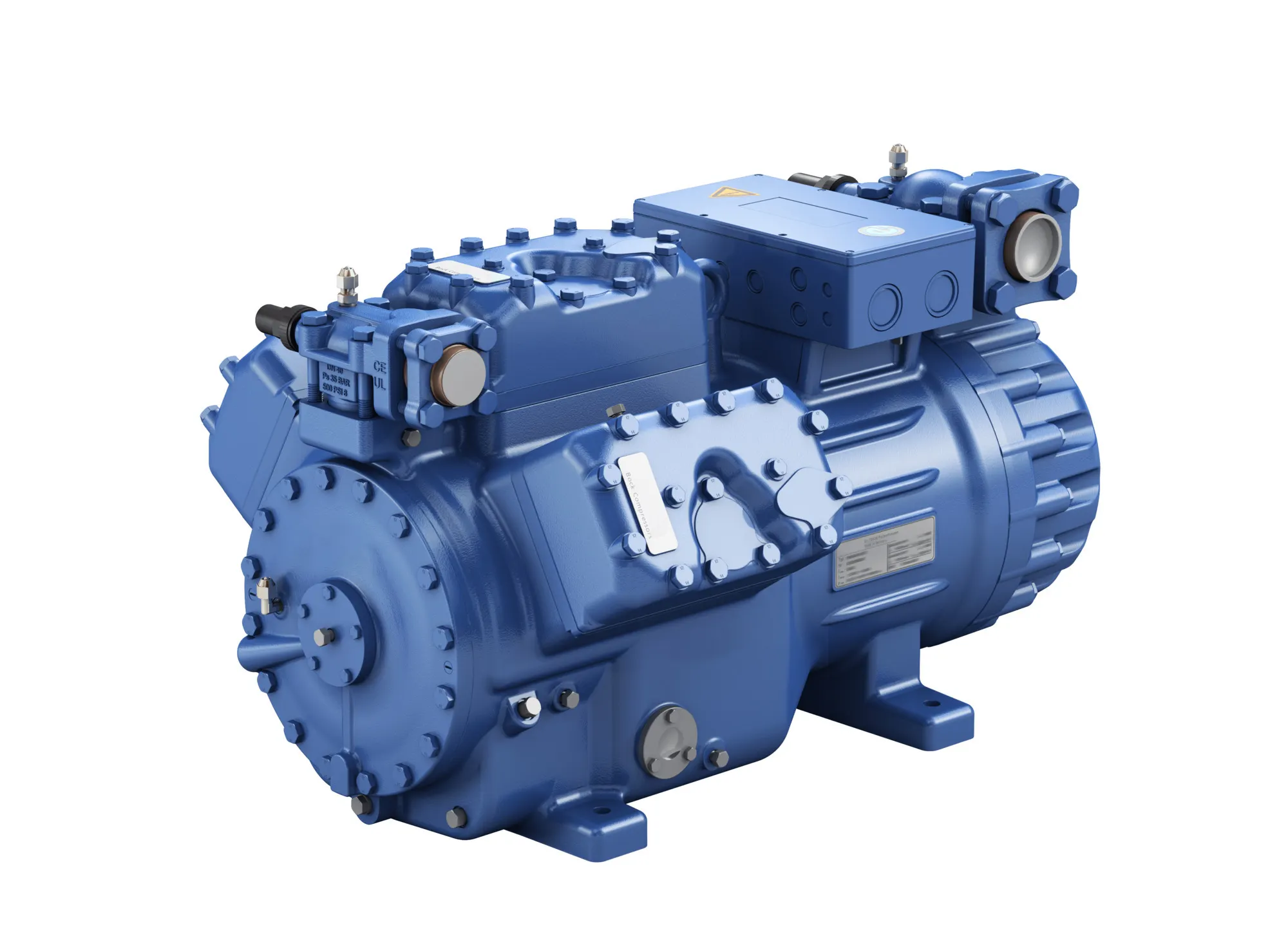

Reciprocating compressor HG
Refrigerants
R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
Step protection for CR/SU
No
Suction connection size [in]
1 5/8 in
Suction connection size [mm]
42 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic ATEX
Thermal protection thermostat
2
Type
EX-HGX44e
Type designation
EX-HGX44e/770-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
