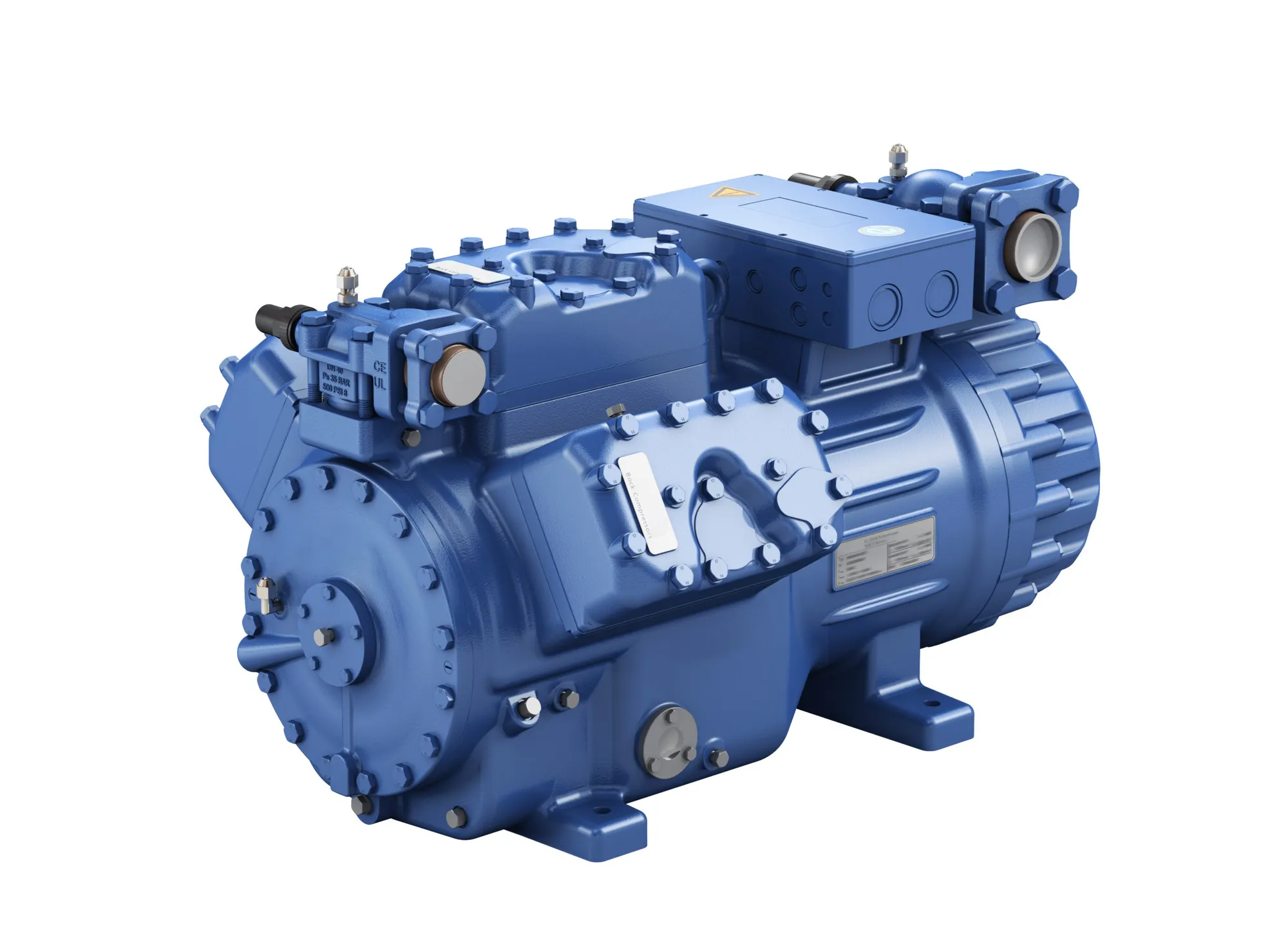

097C6945

Part Number: 097C6945
097C6945
Manufacturer
Danfoss
Part number
097C6945
Category

Product Information

Extended Description

097C6945 Danfoss: Refrigerants: R744, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: RFL 68-EP, Anti-vibration pads: No, Legacy BOCK ID: 16466
Gross weight
525.3 Kilogram
Net weight
466.4 Kilogram
Volume
428.8 Liter
EAN
5715255023067
Anti-vibration pads
No
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6
Discharge connection size [in]
1 3/8 in
Discharge connection size [mm]
35 mm
Discharge connection size type
Non-standard
Discharge connection type
Soldering/welding
Family
HG CO2 T Compressors
Frequency Hz
50
Hot gas temperature sensor
No
IP class
IP 66
Legacy BOCK ID
16466
Max pressure (PS) - high side
150 bar
Max pressure (PS) - low side
100 bar
Model number
HGX56/480-4 SH CO2 T
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil service valve
No
Oil sump heater
220-240V AC (V2A)
Oil temperature sensor
No
Oil type
RFL 68-EP
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R744
Suction connection size [in]
1 5/8 in
Suction connection size [mm]
42 mm
Suction connection size type
Non-standard
Suction connection type
Soldering/welding
Technology
Semi-hermetic CO2 transcritical
Thermal protection thermostat
No
Type
HGX56
Type designation
HGX56/480-4 SH CO2 T
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
