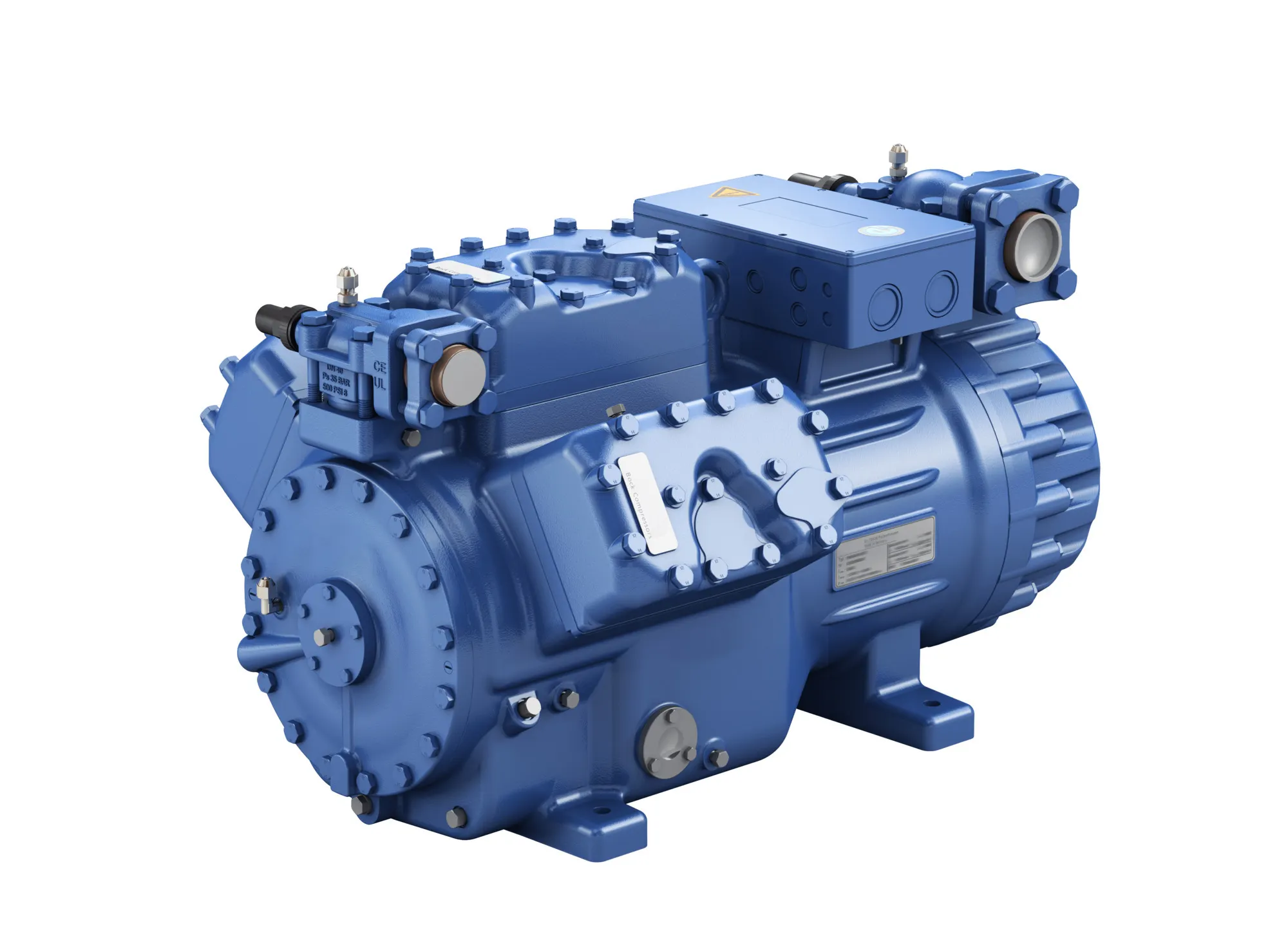

097C6953

Part Number: 097C6953
097C6953
Manufacturer
Danfoss
Part number
097C6953
Category

Product Information

Extended Description

097C6953 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 660-725V Y/YY -3- 60Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16167
Gross weight
1965.6 Kilogram
Net weight
178.7 Kilogram
Volume
271.656 Liter
EAN
5715255026129
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
1 Cylinder cover prepared
Colour
Blue (standard)
Compressor power supply [V]
660-725V Y/YY -3- 60Hz PW
Contain batteries
No
Cylinder
4
Discharge connection size [in]
1 1/8 in
Discharge connection size [mm]
28 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
60
Hot gas temperature sensor
No
Intermediate flange/adapter
No
IP class
IP 66
Legacy BOCK ID
16167
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX44e/565-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Mounting position capacity regulator
Serial position
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil sump heater
220-240V AC
Oil temperature sensor
No
Oil type
BOCKlub E55
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407C,R407F,R448A,R449A,R450A,R452A,R513A,R407A
Step protection for CR/SU
No
Suction connection size [in]
1 5/8 in
Suction connection size [mm]
42 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
EX-HGX44e
Type designation
HGX44e/565-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Anti-vibration pads INT69 GTML=C2=AE Diagnose INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection One-third octave and Octave bands in dB for HG34e, HG44e, HG56e, HG66e and HG88e with R404A Torques for screwed connections Torques for screwed connections Assembly instruction for bearings semi-hermetic compressors BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG66e HG66e.STEP Semi-hermetic compressors, Reciprocating compressor HG, HG66e MC- HGX66e, 11496 MC- HG66e, 11496
