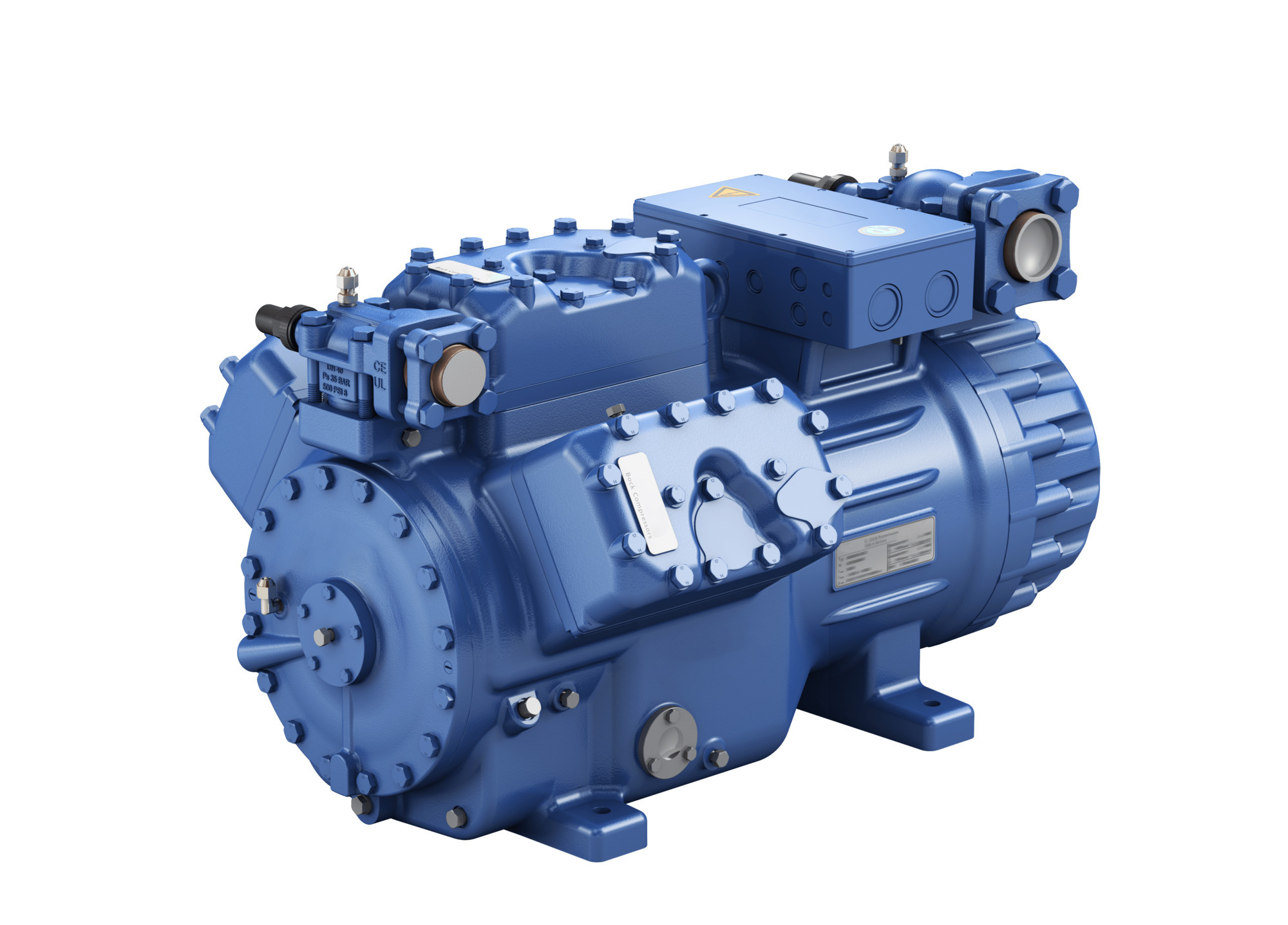

097C6960

Part Number: 097C6960
097C6960
Manufacturer
Danfoss
Part number
097C6960
Category

Product Information

Extended Description

097C6960 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16062
Gross weight
110.6 Kilogram
Net weight
101.2 Kilogram
Volume
152.46 Liter
EAN
5715255026198
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Capacity regulator
1x 24V DC
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
4
Discharge connection size [in]
7/8 in
Discharge connection size [mm]
22 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
50
Hot gas temperature sensor
No
IP class
IP 66
Legacy BOCK ID
16062
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX34e/215-4 S
Motor protection
INT69 G 24V DC, IP00
Mounting position capacity regulator
Serial position
Oil pressure safety switch
No
Oil sump heater
110-240V AC
Oil type
BOCKlub E55
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407C,R407F,R448A,R449A,R450A,R452A,R513A,R407A
Step protection for CR/SU
No
Suction connection size [in]
1 1/8 in
Suction connection size [mm]
28 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX34e
Type designation
HGX34e/215-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
