097C6962

Part Number: 097C6962
097C6962
Manufacturer
Danfoss
Part number
097C6962
Category

Product Information

Extended Description

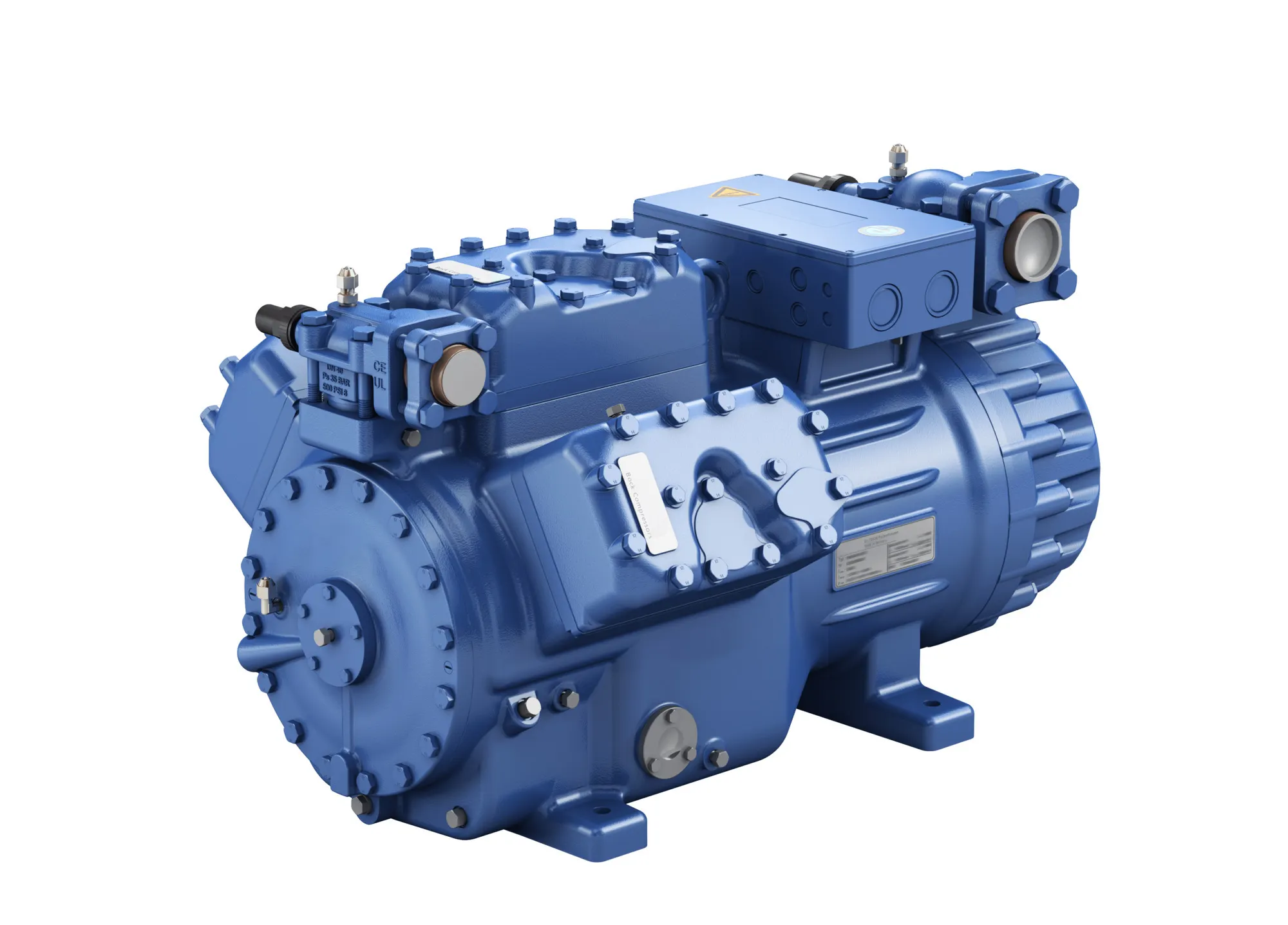

097C6962 Danfoss: Refrigerants: R1270; R290, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub G68, Anti-vibration pads: No, Legacy BOCK ID: 14766
Gross weight
525.2 Kilogram
Net weight
466.3 Kilogram
Volume
657.816 Liter
EAN
5715255026563
Anti-vibration pads
No
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
8
Discharge connection size [in]
2 1/8 in
Discharge connection size [mm]
54 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HC Compressors
Frequency Hz
50
Hot gas temperature sensor
No
Intermediate flange/adapter
No
IP class
IP 65
Legacy BOCK ID
14766
Max pressure (PS) - high side
32 bar
Max pressure (PS) - low side
19 bar
Model number
HG88e/3235-4 HC
Motor protection
INT69 GTML Diagnose 115-230V AC, 50/60 Hz, IP00, including oil differential pressure sensor INT250G, thermal protection thermostat per cylinder covers
Oil differential pressure sensor
INT250G
Oil pressure safety switch
No
Oil service valve
Yes
Oil sump heater
220-240V AC
Oil temperature sensor
Pt1000
Oil type
BOCKlub G68
Position motor cover
Standard
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R1270,R290
Step protection for CR/SU
No
Suction connection size [in]
3 1/8 in
Suction connection size [mm]
76 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
4
Type
HG88e
Type designation
HG88e/3235-4 HC
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
