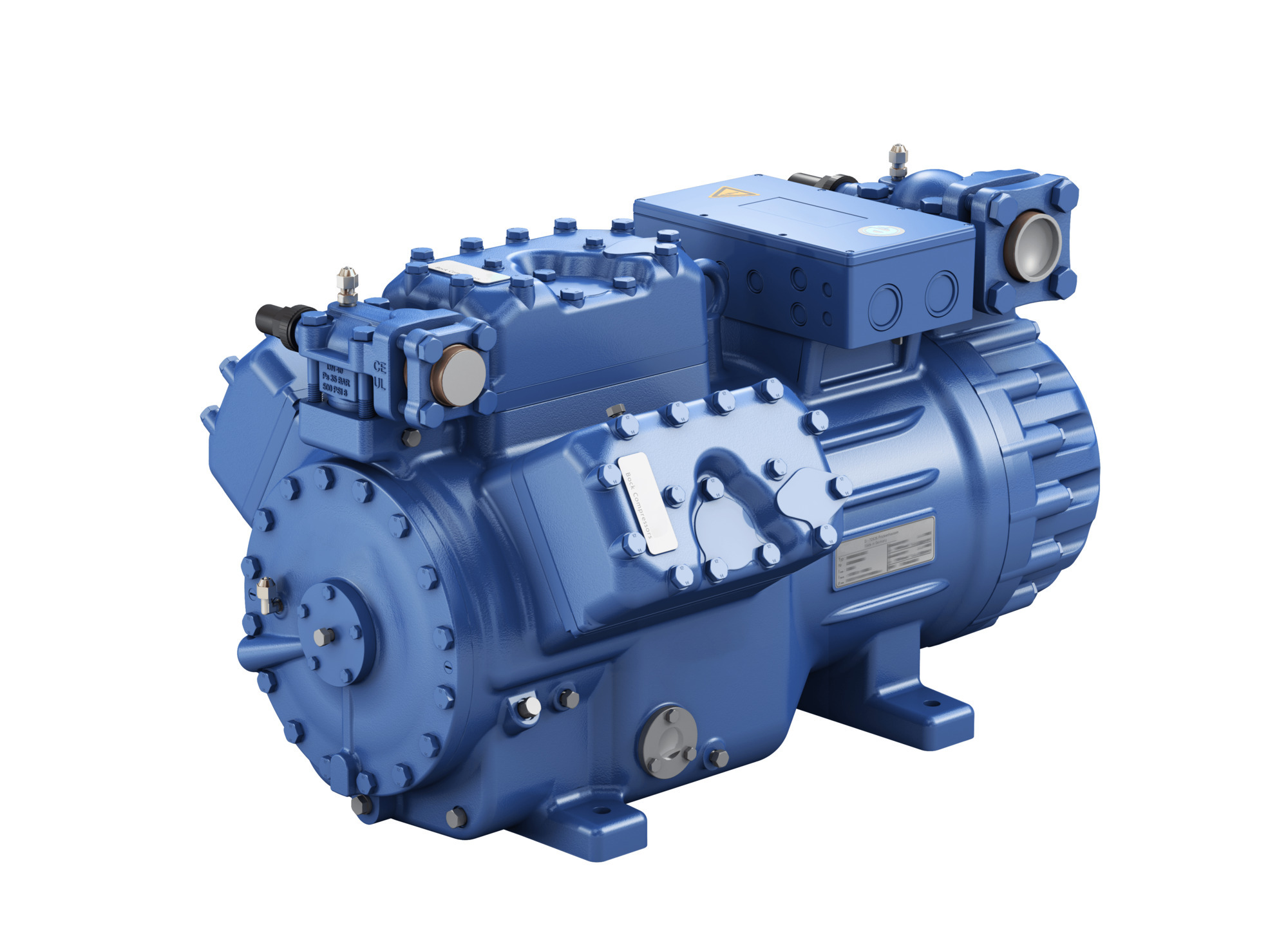

097C9994

Part Number: 097C9994
097C9994
Manufacturer
Danfoss
Part number
097C9994
Category

Product Information

Extended Description

097C9994 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 60Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16010
Gross weight
84.717 Kilogram
Net weight
75.317 Kilogram
Volume
152.46 Liter
EAN
5715162602300
Anti-vibration pads
Yes
Applications
MBP,HBP
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 60Hz
Contain batteries
No
Cylinder
2
Description
Compressor HGX22e/160-4 S
Discharge connection size [in]
5/8 in
Discharge connection size [mm]
16 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
60
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16010
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX22e/160-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
No
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R513A,R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A
SCIP dossier no.
7f2d5eef-f276-4b05-869b-e55068f6f644
SCIP dossier product name
HG/HA(X)22/…. - series
Suction connection size [in]
7/8 in
Suction connection size [mm]
22 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX22e
Type designation
HGX22e/160-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
