097C9996

Part Number: 097C9996
097C9996
Manufacturer
Danfoss
Part number
097C9996
Category

Product Information

Extended Description

097C9996 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 60Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16064
Gross weight
106.583 Kilogram
Net weight
97.183 Kilogram
Volume
152.46 Liter
EAN
5715162602287
Anti-vibration pads
Yes
Applications
MBP,HBP
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 60Hz
Contain batteries
No
Cylinder
4
Description

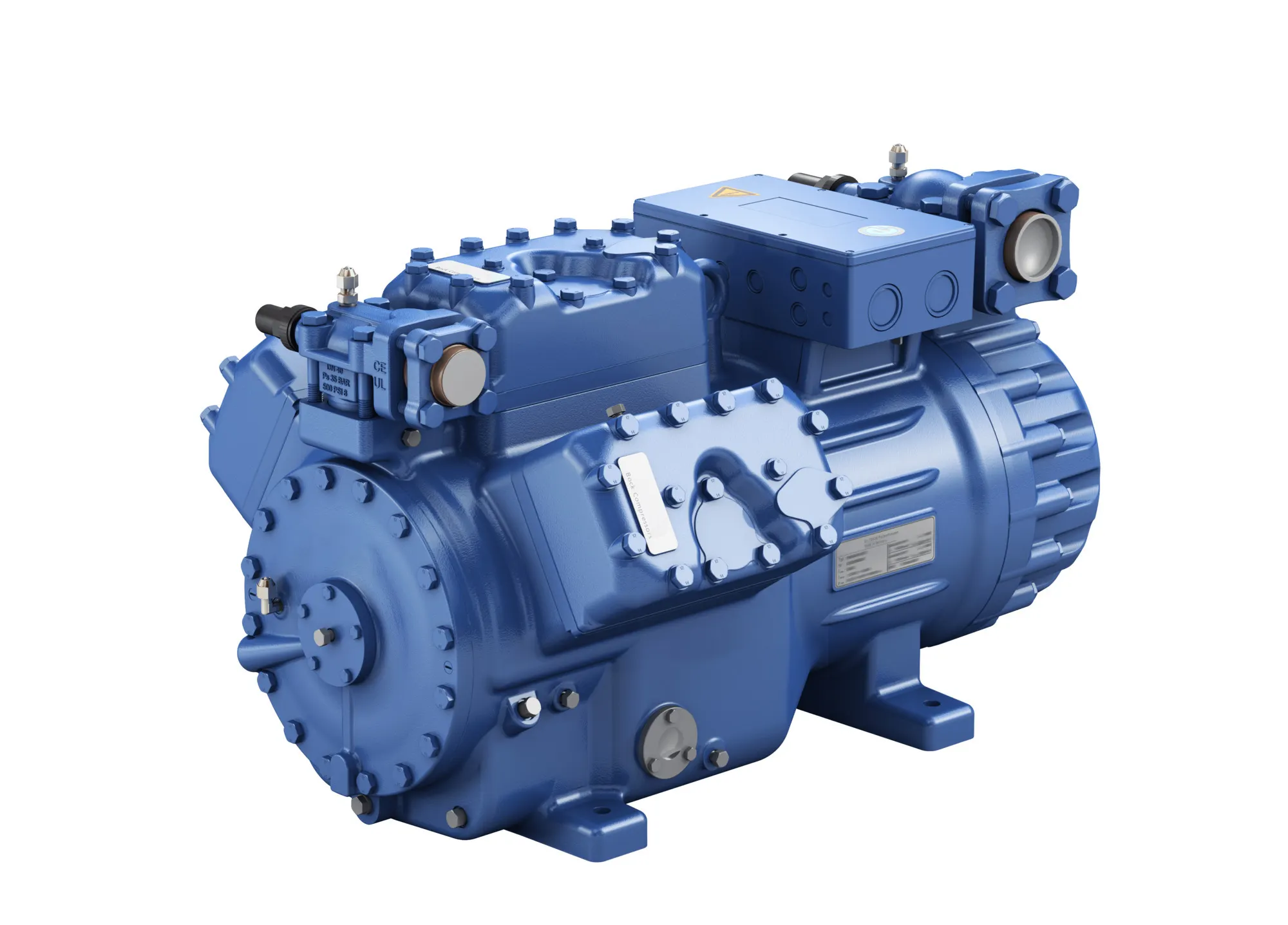

Compressor HGX34e/315-4 S
Discharge connection size [in]
7/8 in
Discharge connection size [mm]
22 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
60
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16064
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX34e/315-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil pressure safety switch
No
Oil sump heater
No
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R407C,R407F,R448A,R449A,R450A,R452A,R513A,R134a,R404A,R407A
Step protection for CR/SU
No
Suction connection size [in]
1 1/8 in
Suction connection size [mm]
28 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX34e
Type designation
HGX34e/315-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Anti-vibration pads INT69 GTML=C2=AE Diagnose INT69 G=C2=AE Bock INT69 G=C2=AE Diagnose Maximum permissible inclination for Bock compressors O-ring selection One-third octave and Octave bands in dB for HG34e, HG44e, HG56e, HG66e and HG88e with R404A Torques for screwed connections Torques for screwed connections Assembly instruction for bearings semi-hermetic compressors BOCK compressors Semi-hermetic compressors, Reciprocating compressor HG, HG66e HG66e.STEP Semi-hermetic compressors, Reciprocating compressor HG, HG66e MC- HGX66e, 11496 MC- HG66e, 11496
