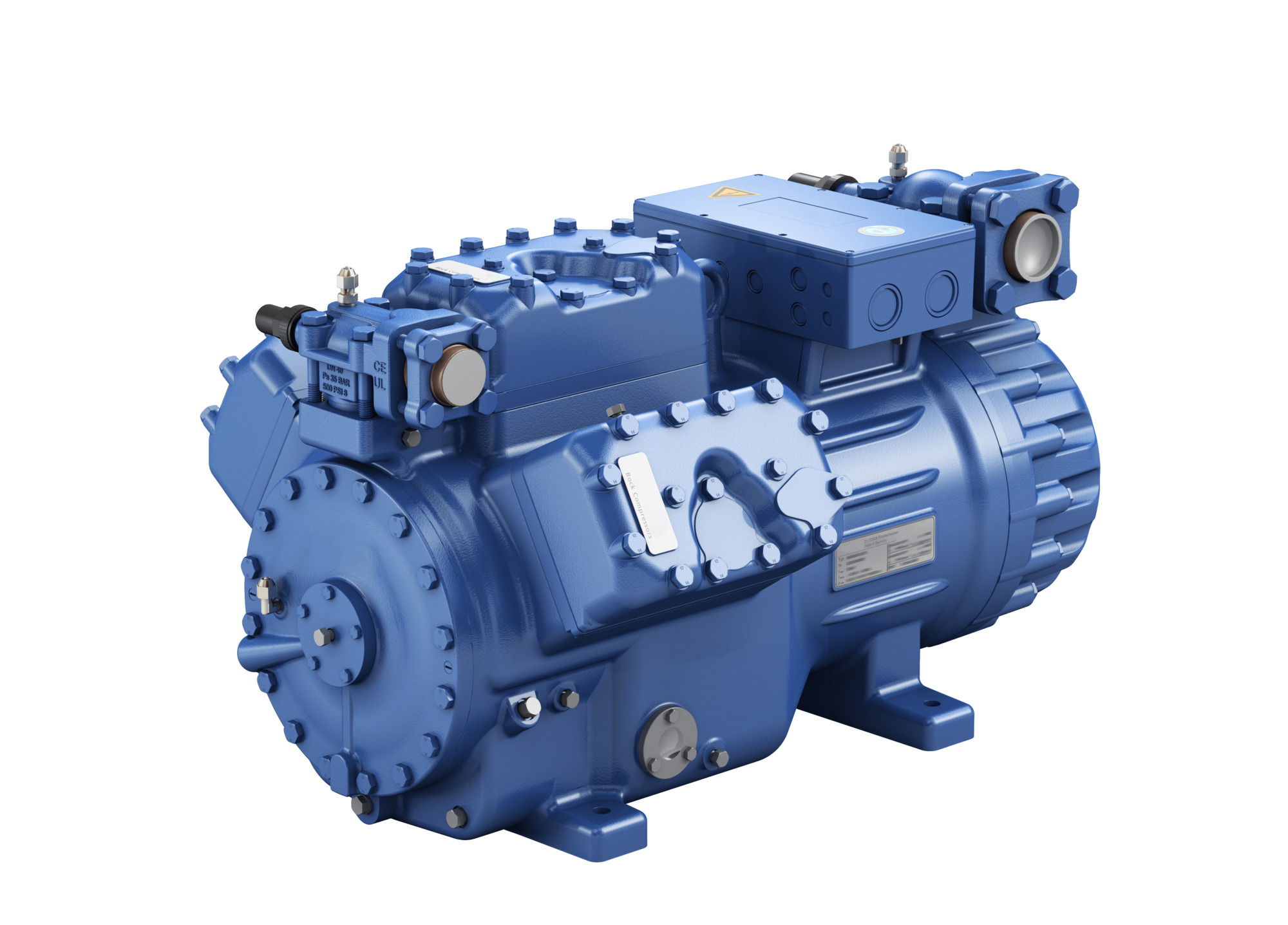

097C9998

Part Number: 097C9998
097C9998
Manufacturer
Danfoss
Part number
097C9998
Category

Product Information

Extended Description

097C9998 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 60Hz, Oil type: BOCKlub E55, Anti-vibration pads: Yes, Legacy BOCK ID: 16167
Gross weight
193.398 Kilogram
Net weight
176.498 Kilogram
Volume
271.656 Liter
EAN
5715162602263
Anti-vibration pads
Yes
Applications
MBP,HBP
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 60Hz
Contain batteries
No
Cylinder
4
Description
Compressor HGX44e/565-4 S
Discharge connection size [in]
1 1/8 in
Discharge connection size [mm]
28 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG/HA compressors
Frequency Hz
60
Hot gas temperature sensor
No
In scope of WEEE
No
Intermediate flange/adapter
No
IP class
IP 66
Legacy BOCK ID
16167
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
HGX44e/565-4 S
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil pressure safety switch
No
Oil sump heater
No
Oil temperature sensor
No
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants
R407F,R448A,R449A,R450A,R452A,R513A,R134a,R404A,R407C,R407A
SCIP dossier no.
2fb4c6ae-f5a0-44f0-9abf-d0c61b888840
SCIP dossier product name
HG/HA(X)44/…. - series
Step protection for CR/SU
No
Suction connection size [in]
1 5/8 in
Suction connection size [mm]
42 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic suction gas cooled
Thermal protection thermostat
No
Type
HGX44e
Type designation
HGX44e/565-4 S
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
