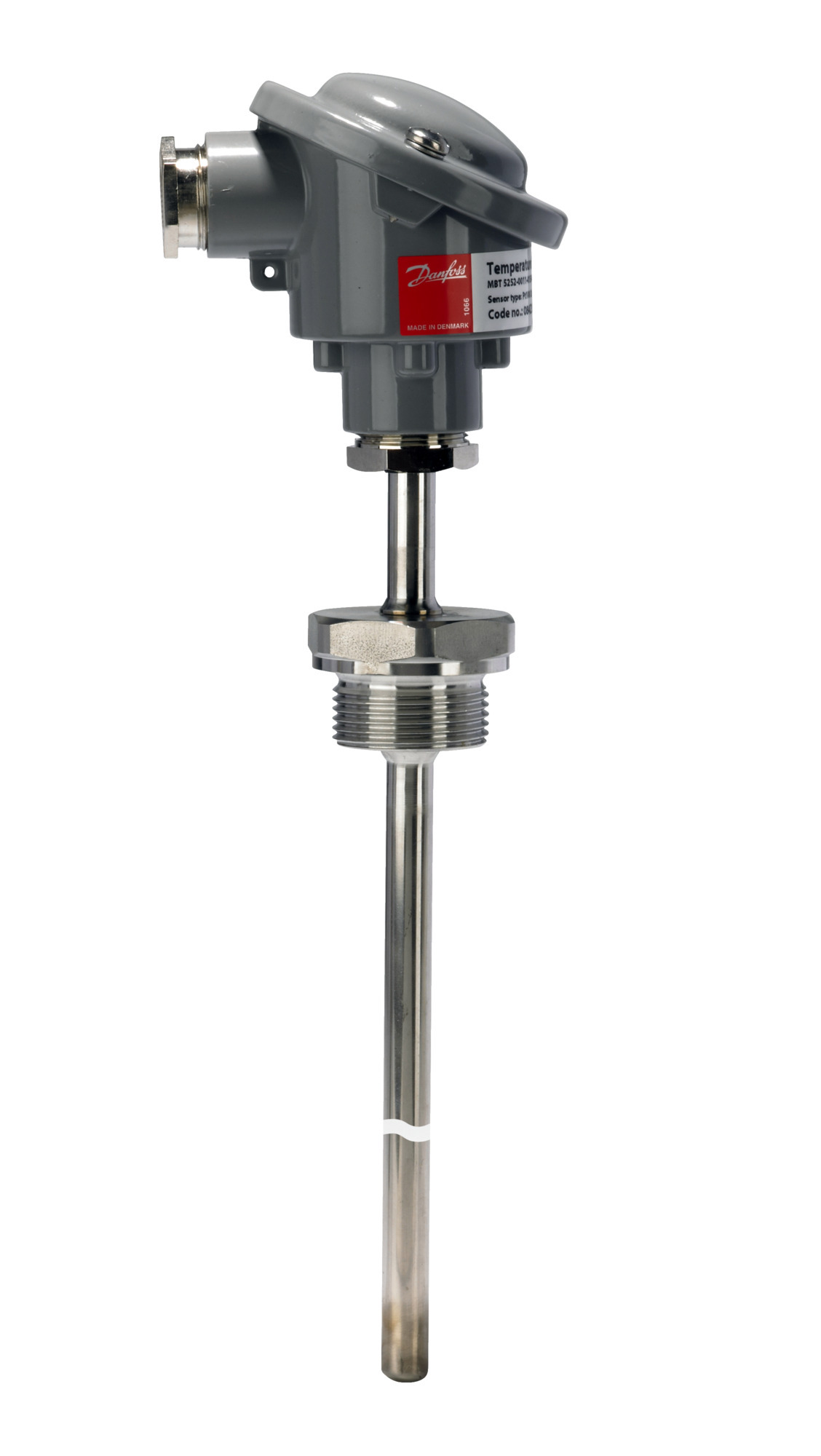

097U0274

Part Number: 097U0274
097U0274
Manufacturer
Danfoss
Part number
097U0274
Category

Product Information

Extended Description

097U0274 Danfoss: Temperature range [=C2=B0C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B, Electrical connection size: Pg 16
Gross weight
0.518 Kilogram
Net weight
0.511 Kilogram
Volume
2.797 Liter
EAN
5715162663110
Ambient temperature max. [=C2=B0C]
85 =C2=B0C
Ambient temperature max. [=C2=B0F]
185 =C2=B0F
CE evaluated
Yes
Connection material
Stainless steel
Connection standard
ISO 228
Connection type
G
Contain batteries
No
Electrical connection
Type B
Electrical connection size
Pg 16
Enclosure rating IP
IP65
Extension length [in]
1.97 in
Extension length [mm]
50 mm
Insertion length [in]
15 in
Insertion length [mm]
380 mm
Insertion type
Fixed
Number of terminals [pcs]
3 pc
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Packing format
Multi pack
Process connection Male/Female
Male
Process connection material
Stainless steel
Process connection size
1/2
Process connection standard
ISO 228-1-A
Process connection type
G
Product group
Sensors
Product Name Description
Temperature transmitter
Protection tube diameter [in]
0.394 in
Protection tube diameter [mm]
10 mm
Protection tube material
AISI 316 Ti
Quantity per packing format
8 pc
Sensor elem. resistance [Ohm]
100
Sensor element [pc]
1 pc
Sensor element standard
EN 60751
Sensor element tolerance
Class 1/6 B
Sensor element type
Pt
Sensor Insert
Exchangeable
Supply voltage [V] DC [max]
35 V
Supply voltage [V] DC [min]
8 V
Temperature range [=C2=B0C] [max]
200 =C2=B0C
Temperature range [=C2=B0C] [min]
-50 =C2=B0C
Temperature range [=C2=B0F] [max]
392 =C2=B0F
Temperature range [=C2=B0F] [min]
-58 =C2=B0F
Transmitter setting range [=C2=B0C] [max]
50 =C2=B0C
Transmitter setting range [=C2=B0C] [min]
0 =C2=B0C
Transmitter setting range [=C2=B0F] [max]
122 =C2=B0F
Transmitter setting range [=C2=B0F] [min]
32 =C2=B0F
Transmitter type
Standard
Type
MBT 3252
Type designation
MBT 3252-0011-0380-0220-G105
Wires [pcs]
2 pc
Temperature sensor overview for wholesaler Temperature sensor, type MBT 3252 Temperature sensor overview for wholesaler Danfoss EU-UK 084R1019.04 Pressure & Temperature Sensors TSSA CRN 0F22934.52367890YTN MBT 5252 Temperature sensor, Pg16, M33x2
