098G3504

Part Number: 098G3504
098G3504
Manufacturer
Danfoss
Part number
098G3504
Category

Product Information

Extended Description

098G3504 Danfoss: Supply voltage [V] DC: 5, Electrical connection: Cable, Axis type: Dual, Specification key: FOR085085LA10 L033X20
Gross weight
0.3 Kilogram
Net weight
0.245 Kilogram
Volume
0.253 Liter
EAN
5702428656474
Accessories
NO
Axis type
Dual
Cable length [m]
2 m
CE evaluated
Yes
China RoHS compliance
Out of scope
Circuit type
Redundant
Contain batteries
No
Electrical connection
Cable
Enclosure rating IP
IP67
Measuring range 1 [=C2=B0]
85 =C2=B0
Measuring range 2 [=C2=B0]
85 =C2=B0
Output signal
Ratio metric
Packing format
Multi pack
Product group
Sensors
Product Name Description

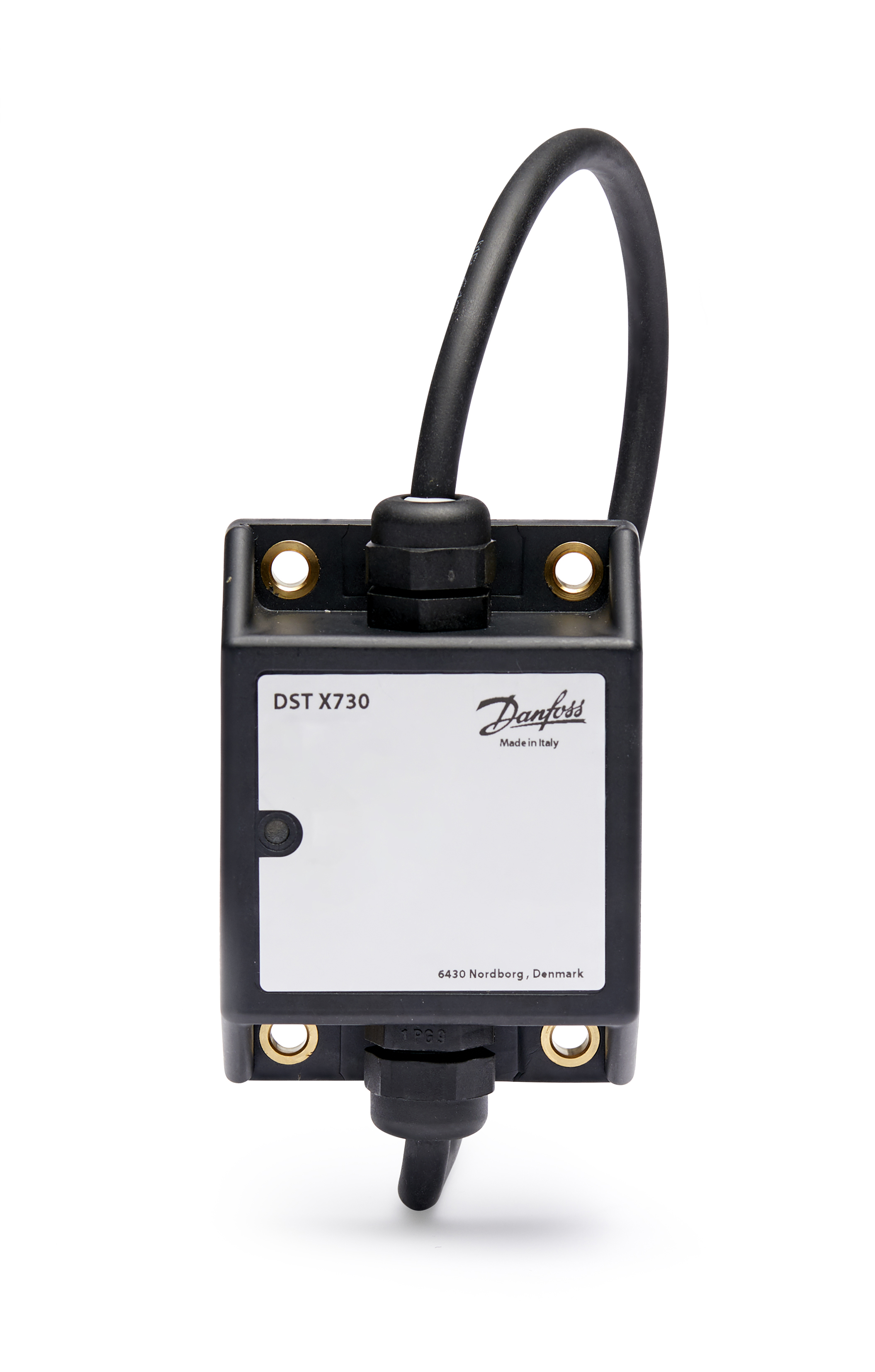

Inclination position sensor
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
42f15994-890d-40cf-97c1-195eb013e856
SCIP dossier product name
GIT
Specification key
FOR085085LA10 L033X20
Supply voltage [V] DC
5 V
Type
DST X730
Mobile Hydraulic Off-highway equipment Inclination position sensor, type DST X730 DST X730 Single_dual Inclination sensor DST X730 Top level inclination sensor Danfoss EU-UK 098R0009.04 Pressure & Temperature Sensors DST X730 Position Sensor DST X730 Top level inclination sensor
