100B1200

Part Number: 100B1200
100B1200
Manufacturer
Danfoss
Part number
100B1200
Category

Product Information

Extended Description

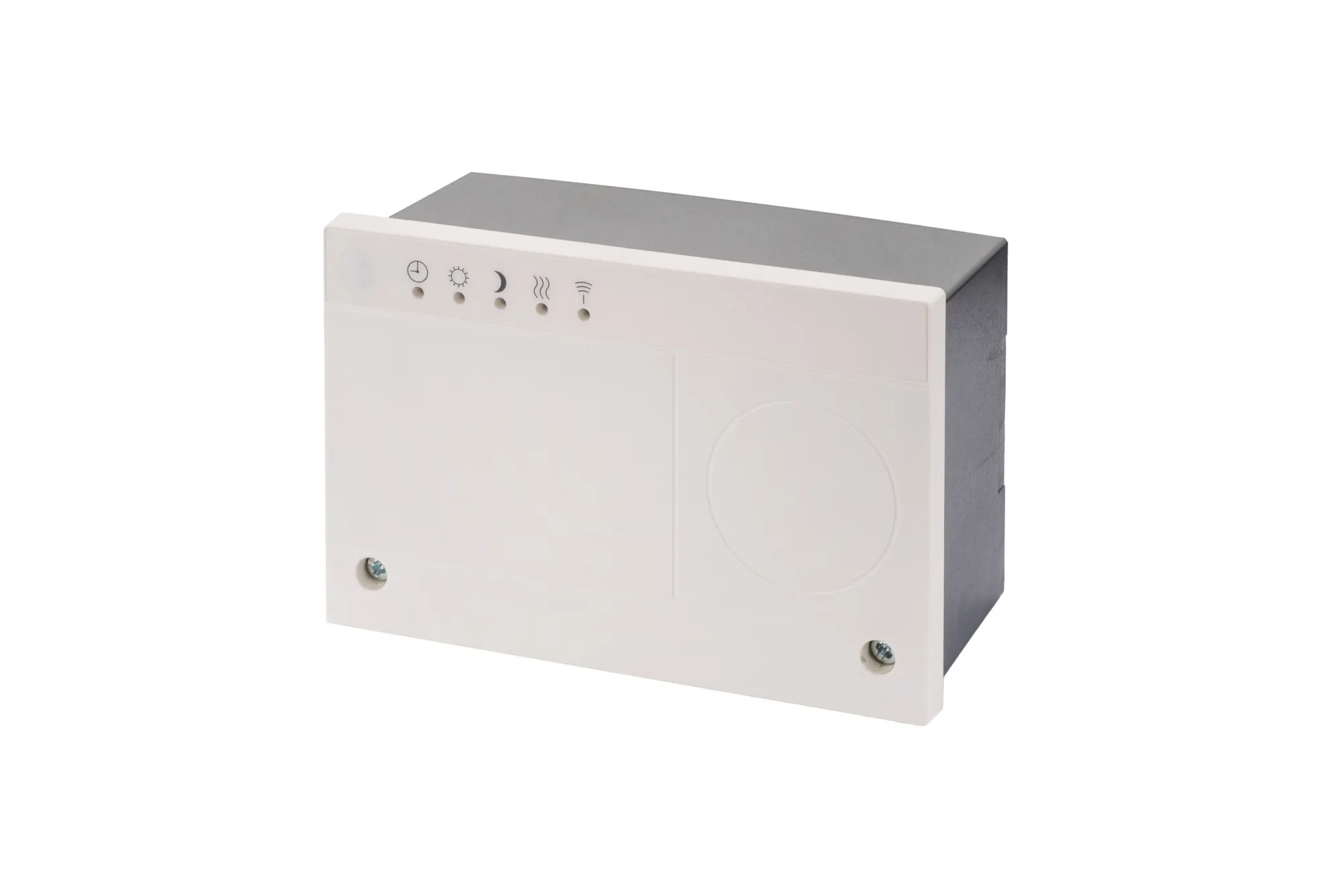

100B1200 Danfoss: ECL Comfort 120
Gross weight
0.485 Kilogram
Net weight
0.377 Kilogram
Volume
1.99 Liter
EAN
5715162499177
Actuator output load [VA]
15 VA
Ambient humidity [% RH] [Max]
95 %
Ambient temperature [°C] [max]
55 °C
Ambient temperature [°C] [min]
-5 °C
Application source
On-board
Approval
CE,EAC,UKCA,UA
CE evaluated
Yes
Communications
Modbus (galvanically isolated)
Contain batteries
No
Description
ECL Comfort 120
EU RoHS compliance
Yes with exemptions
General functions
Alarm functions,Circulation pump exercise,Control valve exercise,External override facility,Frost protection,Motor protection,Master - Slave network,Remote control connection
Grade of enclosure
IP41
Heat curve setting for heating circuit
6 points,Slope
Number of 3-point motor control outputs
1
Number of comfort periods per day
3
Number of digital inputs
1
Number of heating circuits
1
Number of pumps
1
Number of relay outputs
1
Number of Sensor inputs
4 pc
Power consumption [W]
3 W
Product group
Electronic controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Lead monoxide (PbO, CAS no. 1317-36-8),Diboron trioxide (B2O3, CAS no. 1303-86-2),Lead titanium trioxide (CAS no. 12060-00-3),Disodium octaborate (CAS no. 12008-41-2)
Relay output inductive load [A]
2 A
Relay output ohmic load [A]
3 A
Relay output voltage [V] AC
230 V
SCIP dossier no.
63ff497e-8c51-4844-9537-63d1cd363aac
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-40 °C
Supply voltage [V] AC
230 V
Supply voltage [V] AC [max]
244 V
Supply voltage [V] AC [min]
207 V
Supply voltage frequency [Hz]
50 Hz
Temperature sensors type
Pt 1000
Time switch power backup [h]
10 h
Time switch type
Week
Type
ECL Comfort 120
User input type
Push buttons
