100B1603

Part Number: 100B1603
100B1603
Manufacturer
Danfoss
Part number
100B1603
Category

Product Information

Extended Description

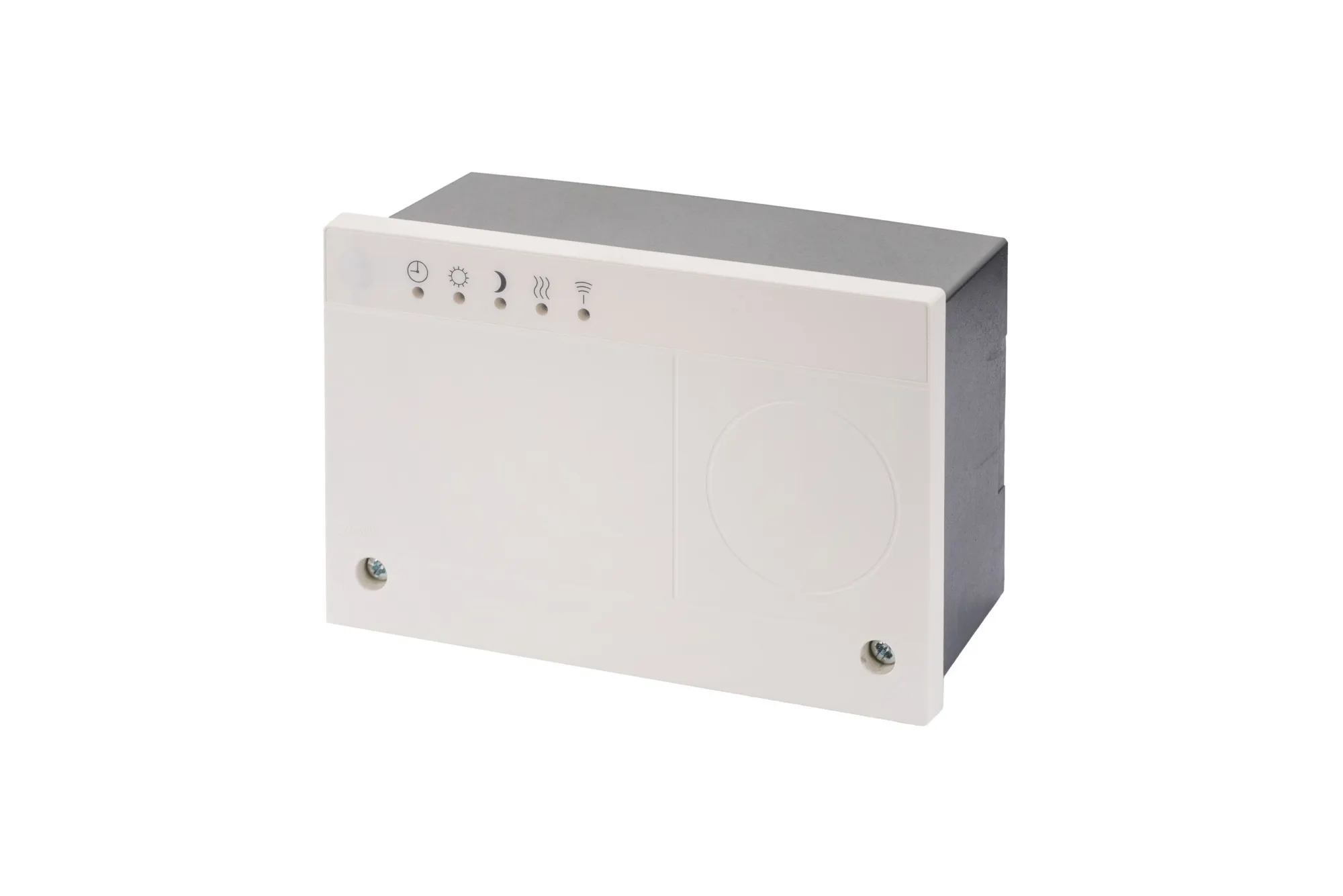

100B1603 Danfoss: ECL Comfort 120, I-pack
Gross weight
0.433 Kilogram
Net weight
0.377 Kilogram
Volume
0.854 Liter
Actuator output load [VA]
15 VA
Ambient humidity [% RH] [Max]
95 %
Ambient temperature [°C] [max]
55 °C
Ambient temperature [°C] [min]
-5 °C
Application source
On-board
Approval
CE,EAC,UKCA,UA
CE evaluated
Yes
Communications
Modbus (galvanically isolated)
Contain batteries
No
Description
ECL Comfort 120, I-pack
EU RoHS compliance
Yes with exemptions
General functions
Alarm functions,Circulation pump exercise,Control valve exercise,External override facility,Frost protection,Master - Slave network,Remote control connection
Grade of enclosure
IP41
Heat curve setting for heating circuit
6 points,Slope
Number of 3-point motor control outputs
1
Number of comfort periods per day
3
Number of digital inputs
1
Number of heating circuits
1
Number of pumps
1
Number of relay outputs
1
Number of Sensor inputs
4 pc
Power consumption [W]
3 W
Product group
Electronic controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Lead monoxide (PbO, CAS no. 1317-36-8),Diboron trioxide (B2O3, CAS no. 1303-86-2),Lead titanium trioxide (CAS no. 12060-00-3),Disodium octaborate (CAS no. 12008-41-2)
Relay output inductive load [A]
2 A
Relay output ohmic load [A]
3 A
Relay output voltage [V] AC
230 V
SCIP dossier no.
63ff497e-8c51-4844-9537-63d1cd363aac
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-40 °C
Supply voltage [V] AC
230 V
Supply voltage [V] AC [max]
244 V
Supply voltage [V] AC [min]
207 V
Supply voltage frequency [Hz]
50 Hz
Temperature sensors type
Pt 1000
Time switch power backup [h]
10 h
Time switch type
Week
Type
ECL Comfort 120
User input type
Push buttons
