111B1125

Part Number: 111B1125
111B1125
Manufacturer
Danfoss
Part number
111B1125
Category

Product Information

Extended Description

111B1125 Danfoss: Max. Working Pressure [bar]: 30.0, Universal, Function: Null, Brazing material: Copper brazing
Gross weight
4.47 Kilogram
Net weight
4.32 Kilogram
EAN
5702424502881
Application
Universal
Approval
AS,CRN,EAC,KRAIA,PED,RoHS,UA,UKCA,UL
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Stud
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Null
Function note
Null
H1 conn. size
N1/2K
H1 conn. type
G Internal thread connection
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
N1/2K
H4 conn. type
G Internal thread connection
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
435 psi
Max. Working Pressure [bar]
30 bar
Model no.
027
Number of plates
24
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
AISI 316L
Plate pattern
H
Product group
Heat exchangers
Product Name Description

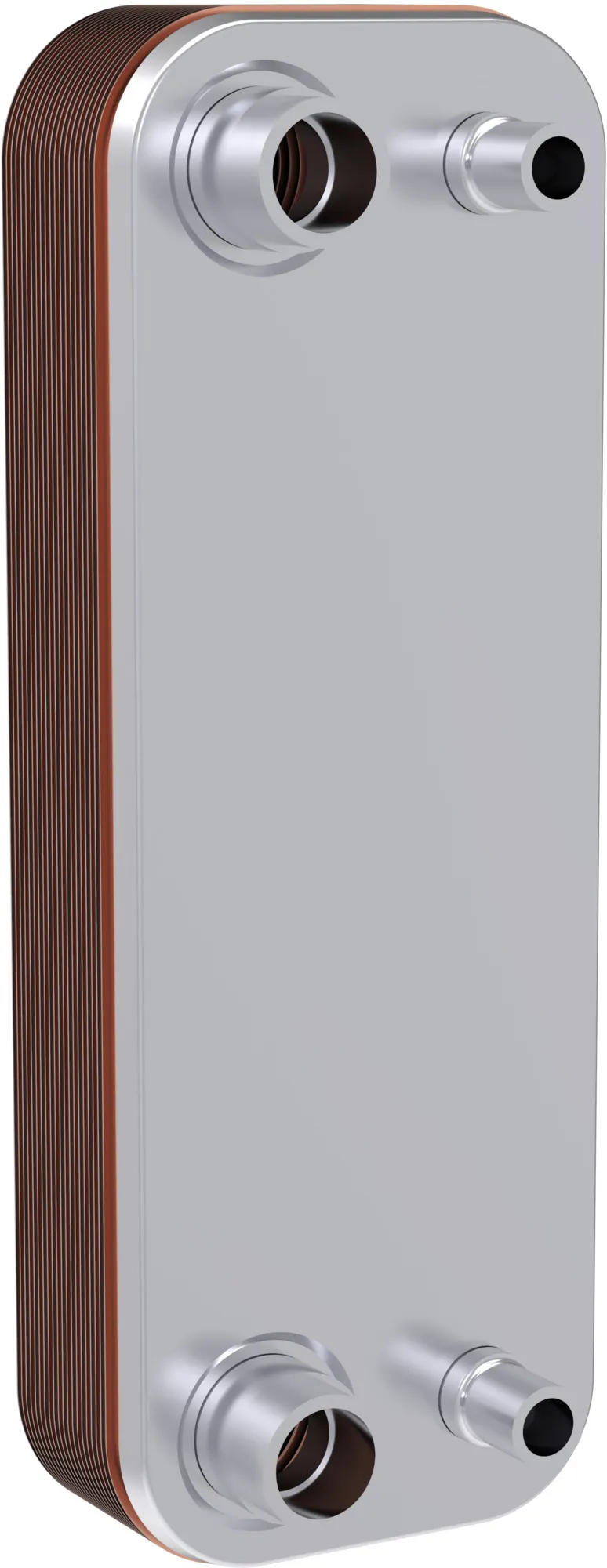

Brazed plate heat exchanger
Q1 conn. size range
L1R
Q1 conn. type
G External thread connection
Q2 conn. size range
L1R
Q2 conn. type
G External thread connection
Q3 conn. size range
L1R
Q3 conn. type
G External thread connection
Q4 conn. size range
L1R
Q4 conn. type
G External thread connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R134a,R22,R245fa,R404A,R407C,R444B,R448A,R449A,R450A,R454C,R455A,R507A,R513A,R515B,R1234ze,R454A
Type
BPHE B3-027
Type designation
B3-027
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
EnFusion brazed plate heat exchanger BPHE Brazed plate heat exchanger Type B3 range GB Instructions Guidelines for water quality in Danfoss brazed heat exchangers with plates of EN 1.4404 E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Braze Plate Heat Exchangers - Not Dual Use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK BPHE B3-027_PIC E
