111B4518

Part Number: 111B4518
111B4518
Manufacturer
Danfoss
Part number
111B4518
Category

Product Information

Extended Description

111B4518 Danfoss: Max. Working Pressure [bar]: 45.0, Chiller, Function: Evaporator, Brazing material: Copper brazing
Gross weight
0.69 Kilogram
Net weight
0.54 Kilogram
EAN
5702424241063
Application
Chiller
Approval
EAC,KRAIA,UA,UL,CRN,RoHS
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Null
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Evaporator
Function note
Null
H1 conn. size
3/8 in
H1 conn. type
Solder connection
H2 conn. size
3/8 in
H2 conn. type
Solder connection
H3 conn. size
1/4 in
H3 conn. type
Solder connection
H4 conn. size
3/8 in
H4 conn. type
Solder connection
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
653 psi
Max. Working Pressure [bar]
45 bar
Model no.
12
Number of plates
14
Packing format
Single pack
Plate material no.
AISI 304L
Plate pattern
Z
Product group
Heat exchangers
Product Name Description

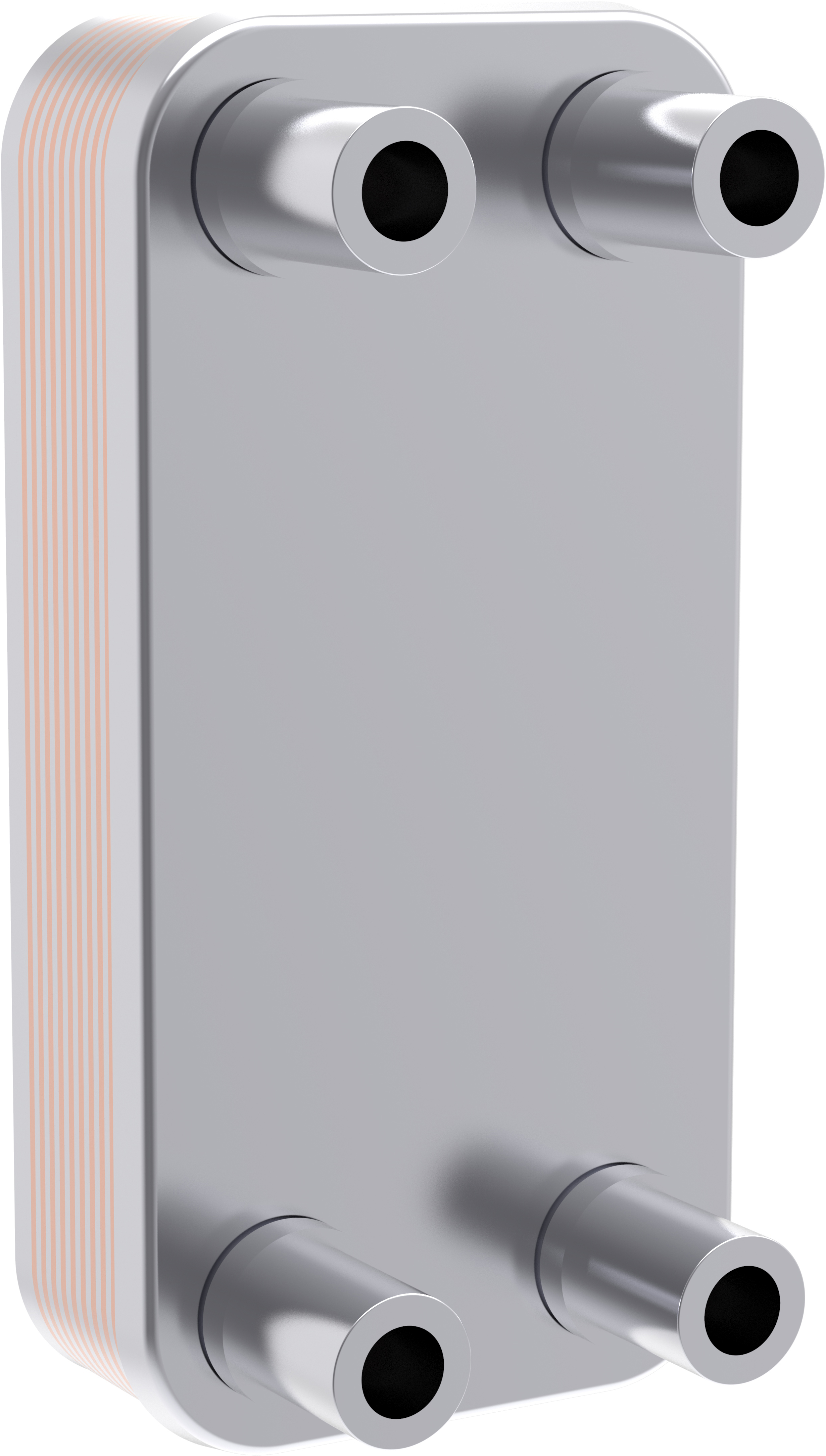

Micro Plate heat exchanger
Q1 conn. size range
Null
Q1 conn. type
Null
Q2 conn. size range
Null
Q2 conn. type
Null
Q3 conn. size range
Null
Q3 conn. type
Null
Q4 conn. size range
Null
Q4 conn. type
Null
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R134a,R22,R245fa,R290,R404A,R407C,R410A,R444B,R448A,R449A,R450A,R452B,R454B,R454C,R455A,R507A,R513A,R515B,R1234ze,R454A
Type
MPHE C12L-EZ
Type designation
C12L-EZ
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger, type C12L-EZ GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 MPHE C12L-EZ_Pic. U
