111B5164

Part Number: 111B5164
111B5164
Manufacturer
Danfoss
Part number
111B5164
Category

Product Information

Extended Description

111B5164 Danfoss: Max. Working Pressure [bar]: 45.0, Chiller, Function: Evaporator, Brazing material: Copper brazing
Gross weight
6.37 Kilogram
Net weight
6.22 Kilogram
Volume
14.486 Liter
EAN
5702424492915
Application
Chiller
Approval
AS,CRN,EAC,KRAIA,PED,RoHS,UA,UKCA,UL
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Null
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Evaporator
Function note
With distributor
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
653 psi
Max. Working Pressure [bar]
45 bar
Model no.
62
Number of plates
22
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
AISI 316L
Plate pattern
Z
Product group
Heat exchangers
Product Name Description

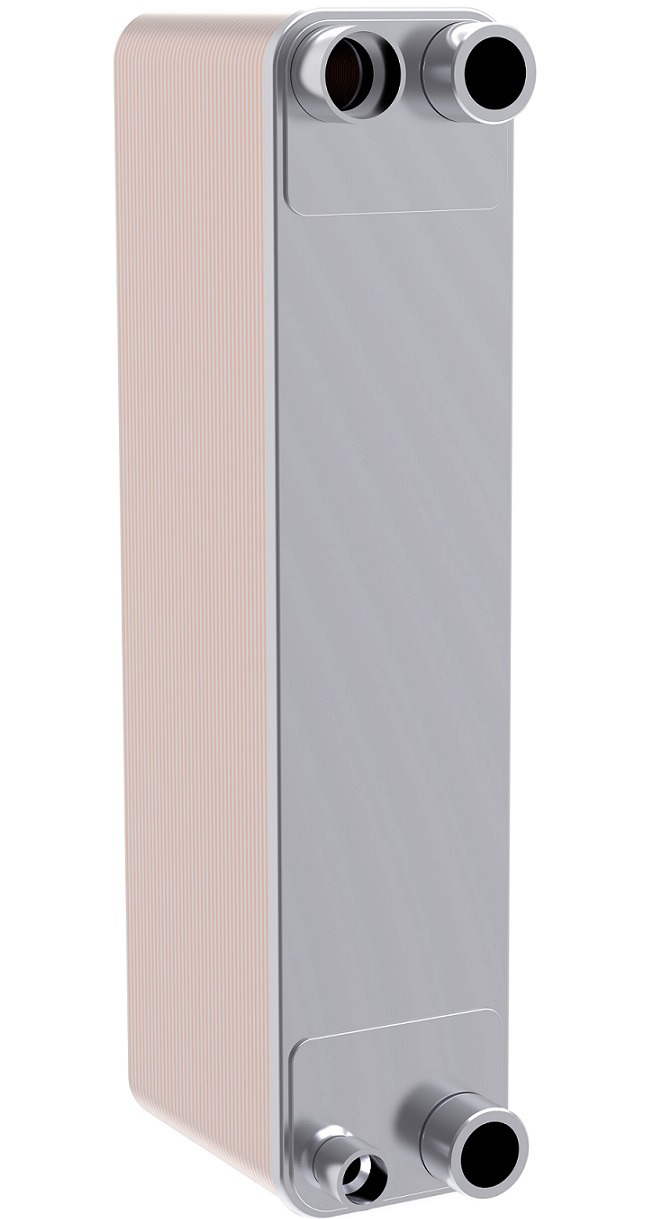

Micro Plate heat exchanger
Q1 conn. size range
N1R
Q1 conn. type
G Internal thread connection
Q2 conn. size range
N1R
Q2 conn. type
G Internal thread connection
Q3 conn. size range
7/8B
Q3 conn. type
Solder connection
Q4 conn. size range
H7/8E
Q4 conn. type
Solder connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R134a,R22,R245fa,R290,R404A,R407C,R410A,R444B,R448A,R449A,R450A,R452B,R454B,R454C,R455A,R507A,R513A,R515B,R1234ze,R454A
Type
MPHE C62L-EZ-B
Type designation
C62L-EZ-B
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger, type C62L-EZ GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Micro Plate heat exchanger_MPHE_PIC. P45
