111B5316

Part Number: 111B5316
111B5316
Manufacturer
Danfoss
Part number
111B5316
Category

Product Information

Extended Description

111B5316 Danfoss: Max. Working Pressure [bar]: 30.0, Heat pump, Function: Evaporator, Brazing material: Copper brazing
Gross weight
14.74 Kilogram
Net weight
14.59 Kilogram
Volume
15.84 Liter
EAN
5702424649036
Application
Heat pump
Approval
AS,EAC,KRAIA,PED,UA,UL,CRN,RoHS,UKCA
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Stud
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Evaporator
Function note
With distributor
H1 conn. size
G1"1/2
H1 conn. type
G External thread connection
H2 conn. size
H35.1
H2 conn. type
Null
H3 conn. size
H12.1
H3 conn. type
Null
H4 conn. size
H7/8
H4 conn. type
Solder connection
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
435 psi
Max. Working Pressure [bar]
30 bar
Model no.
62
Number of plates
82
Packing format
Industrial pack
PED category
II
Plate material no.
AISI 316L
Plate pattern
EZU
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Q1 conn. size range
Null
Q1 conn. type
Null
Q2 conn. size range
Null
Q2 conn. type
Null
Q3 conn. size range
Null
Q3 conn. type
Null
Q4 conn. size range
Null
Q4 conn. type
Null
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
32 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R134a,R22,R245fa,R404A,R407C,R444B,R448A,R449A,R450A,R454C,R455A,R507A,R513A,R515B,R1234ze,R454A
Type
MPHE H62-EZU
Type designation
H62-EZU
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes

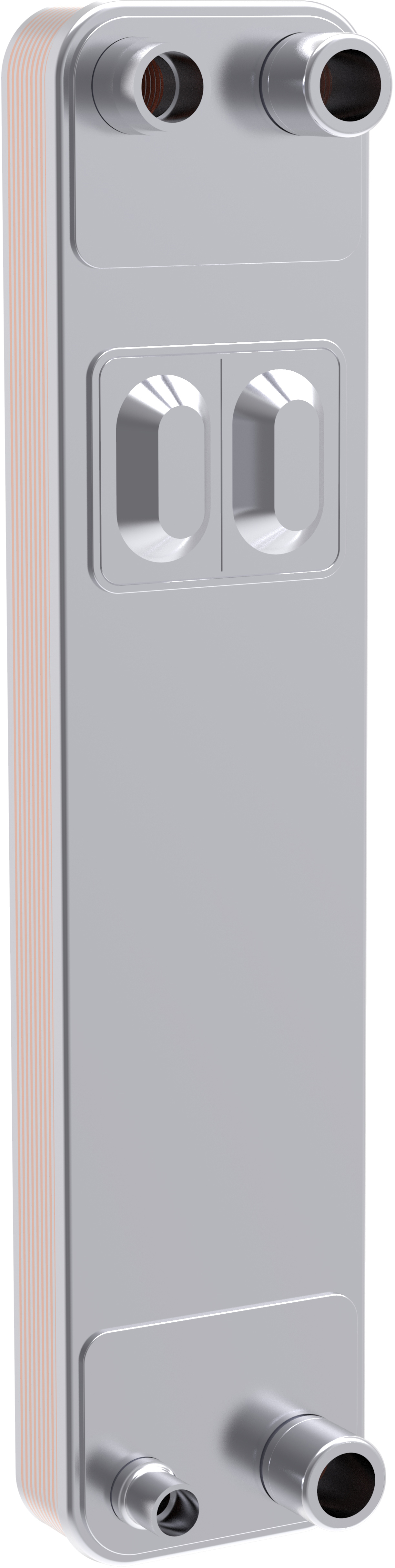

Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger, type H62L-EZU GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Micro Plate heat exchanger, MPHE H62-EZU, Pic. P45-EU
