111B6207

Part Number: 111B6207
111B6207
Manufacturer
Danfoss
Part number
111B6207
Category

Product Information

Extended Description

111B6207 Danfoss: Max. Working Pressure [bar]: 49.0, Chiller, Function: Evaporator, Brazing material: Copper brazing
Gross weight
57.15 Kilogram
Net weight
37 Kilogram
Volume
112.84 Liter
EAN
5702424547073
Application
Chiller
Approval
PED,UA,UL,AS,CRN,KRAIA,RoHS,UKCA
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Stud
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Evaporator
Function note
With distributor
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
711 psi
Max. Working Pressure [bar]
49 bar
Model no.
129
Number of plates
96
Packing format
Single pack
PED category
III
Plate material no.
AISI 316L
Plate pattern
Z-B
Product group
Heat exchangers
Product Name Description

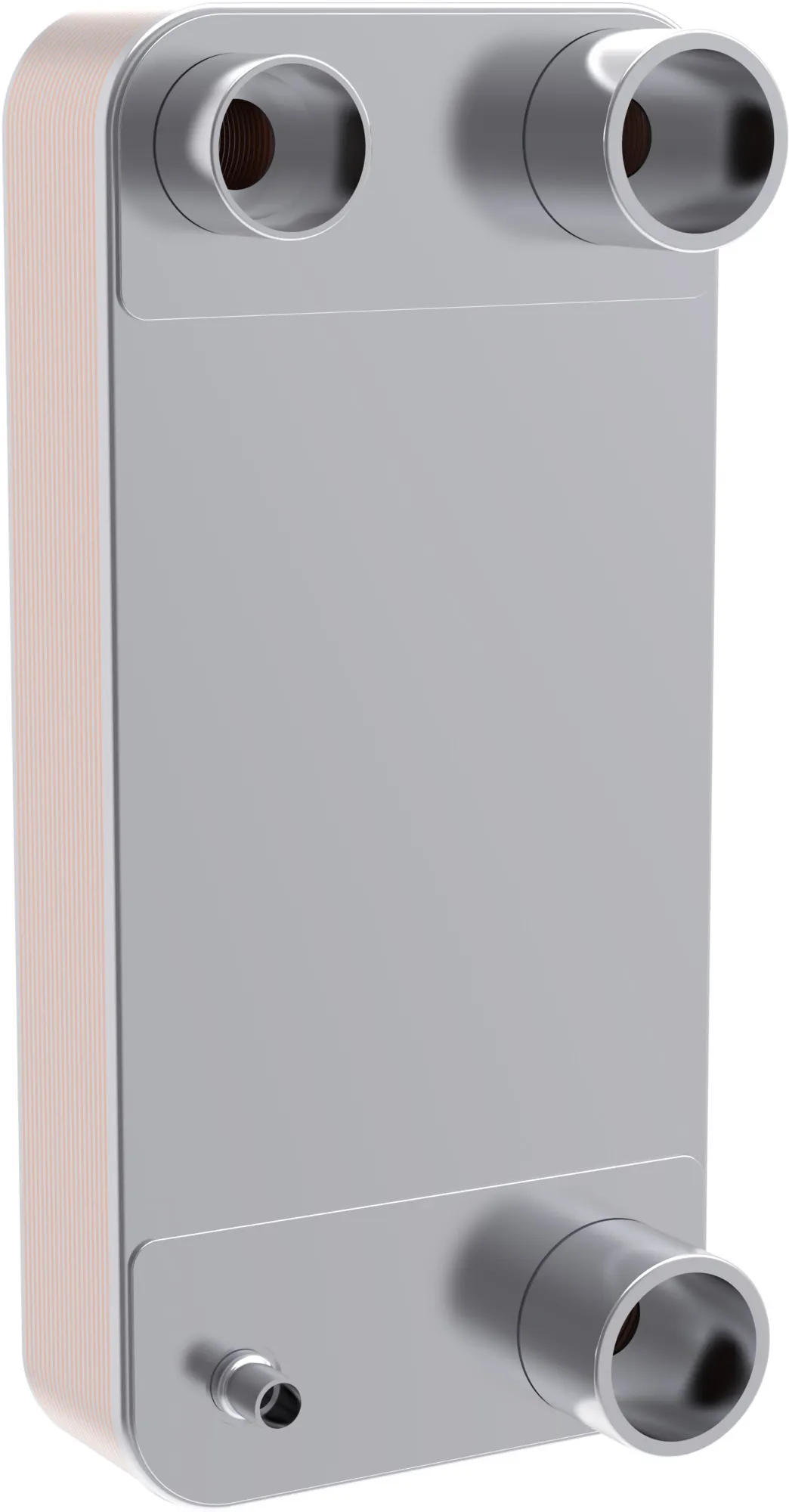

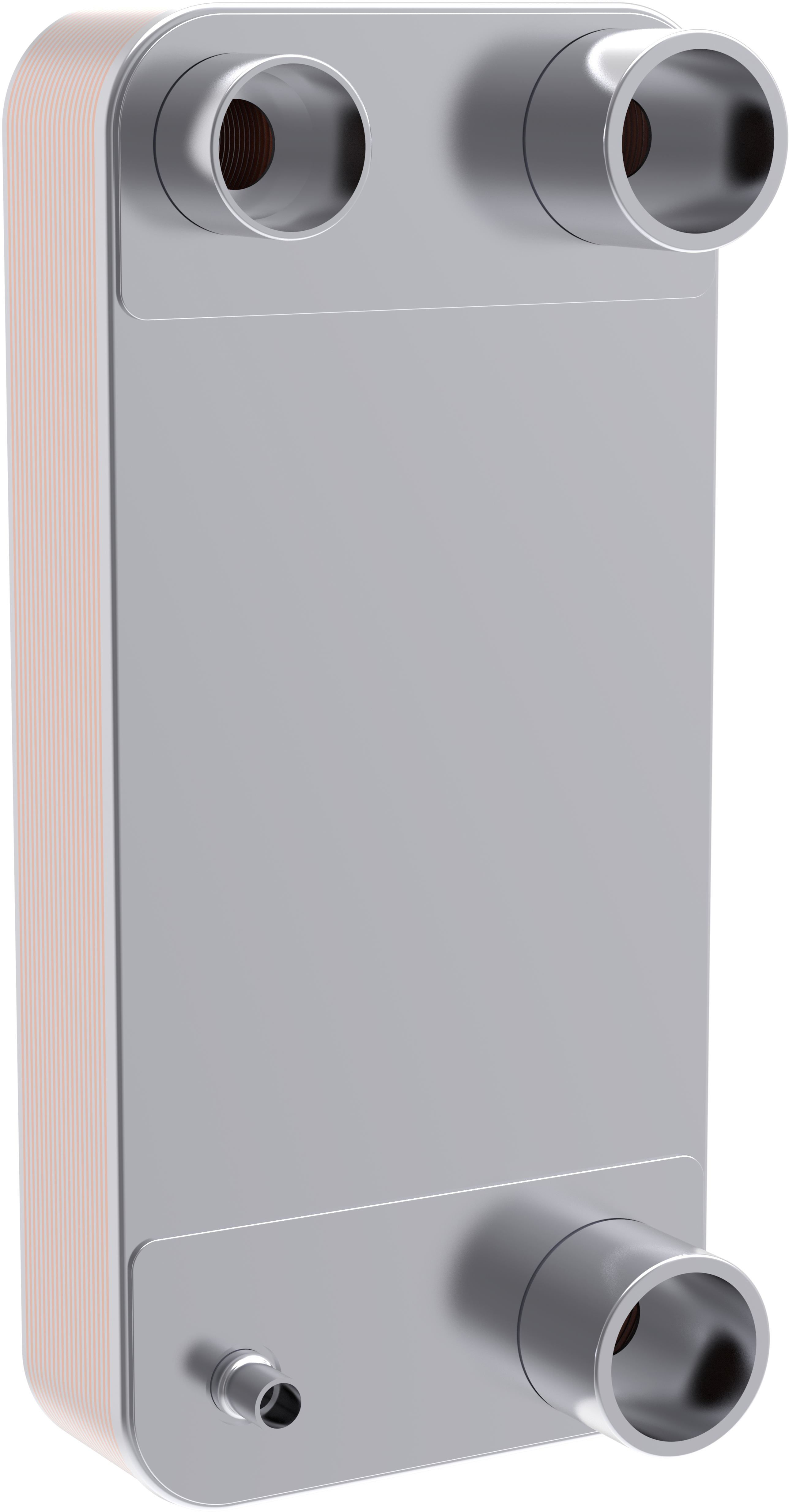

Micro Plate heat exchanger
Q1 conn. size range
G2''1/2
Q1 conn. type
Null
Q2 conn. size range
G2''1/2
Q2 conn. type
Null
Q3 conn. size range
T28.15
Q3 conn. type
Solder connection
Q4 conn. size range
H2''1/8E
Q4 conn. type
Null
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R32,R404A,R407C,R410A,R444B,R513A,R1233zd(E),R1234yf,R245fa,R290,R448A,R449A,R450A,R452B,R454B,R454C,R455A,R507A,R515B,R1234ze,R454A
Type
MPHE C129L-EZ-B
Type designation
C129L-EZ-B
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
Z-design MPHEs for chillers Economic and environmental savings in cooling GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 BV CE-0062-PED-H-DMC 001-23-CHN-Rev.A Micro Plate heat exchanger, PIC. W
