111B6365

Part Number: 111B6365
111B6365
Manufacturer
Danfoss
Part number
111B6365
Category

Product Information

Extended Description

111B6365 Danfoss: Max. Working Pressure [bar]: 48.0, Heat pump, Function: Condenser, Brazing material: Copper brazing
Gross weight
5.45 Kilogram
Net weight
5.3 Kilogram
Volume
6.878 Liter
EAN
5702424611774
Application
Heat pump
Approval
EAC,KRAIA,PED,UA,RoHS,UKCA
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Stud
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Condenser
Function note
Null
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
696 psi
Max. Working Pressure [bar]
48 bar
Model no.
30
Number of plates
60
Packing format
Single pack
PED category
Art. 4, par. 3
Plate material no.
AISI 316L
Plate pattern
H
Product group
Heat exchangers
Product Name Description

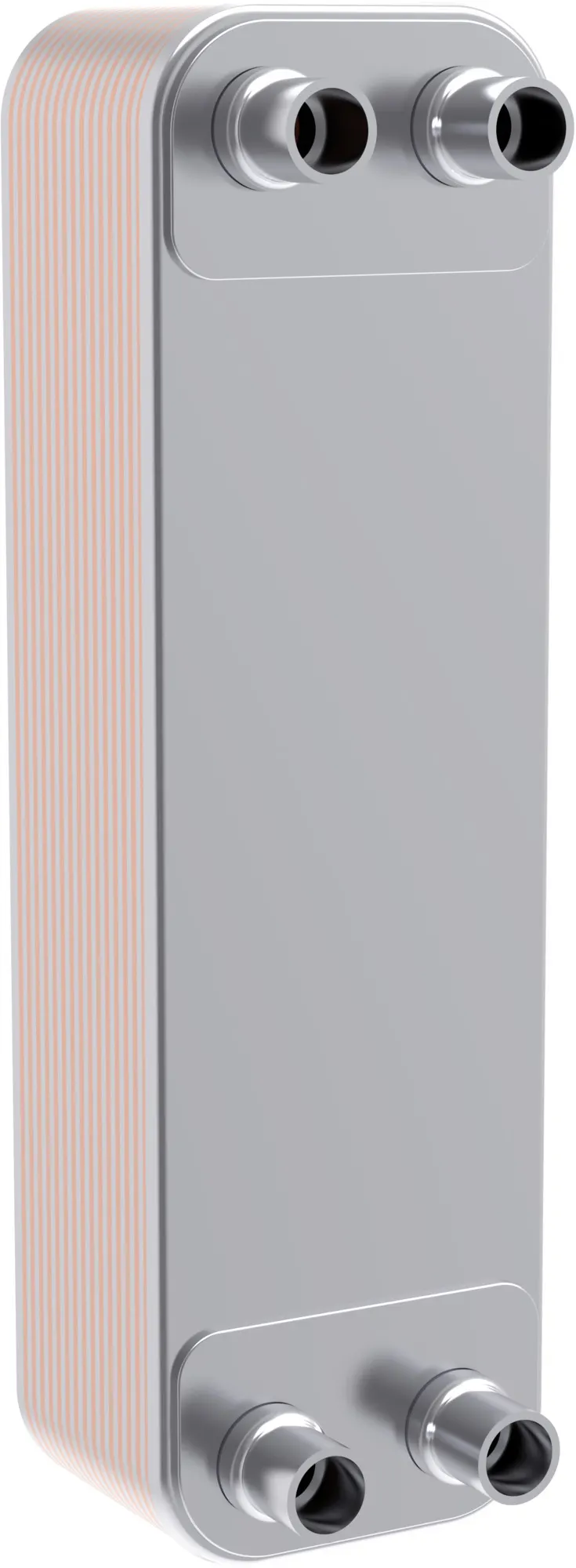

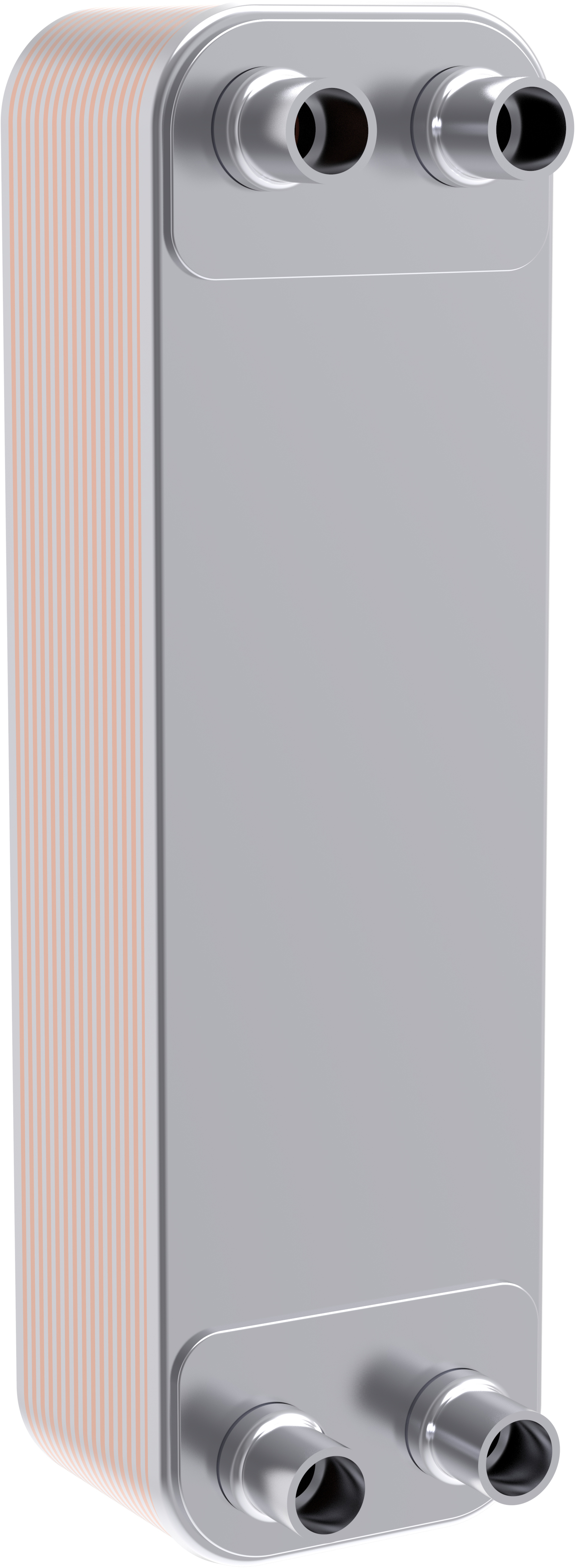

Micro Plate heat exchanger
Q1 conn. size range
H7/8F
Q1 conn. type
Solder connection
Q2 conn. size range
H7/8F
Q2 conn. type
Solder connection
Q3 conn. size range
H3/8F
Q3 conn. type
Solder connection
Q4 conn. size range
H5/7N
Q4 conn. type
Null
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R134a,R22,R245fa,R404A,R407C,R290,R410A,R444B,R448A,R449A,R450A,R452B,R454B,R454C,R455A,R507A,R513A,R515B,R1234ze,R454A
Type
MPHE H30L-C
Type designation
H30L-C
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger, type H30 GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Micro Plate heat exchanger- Pic N45
