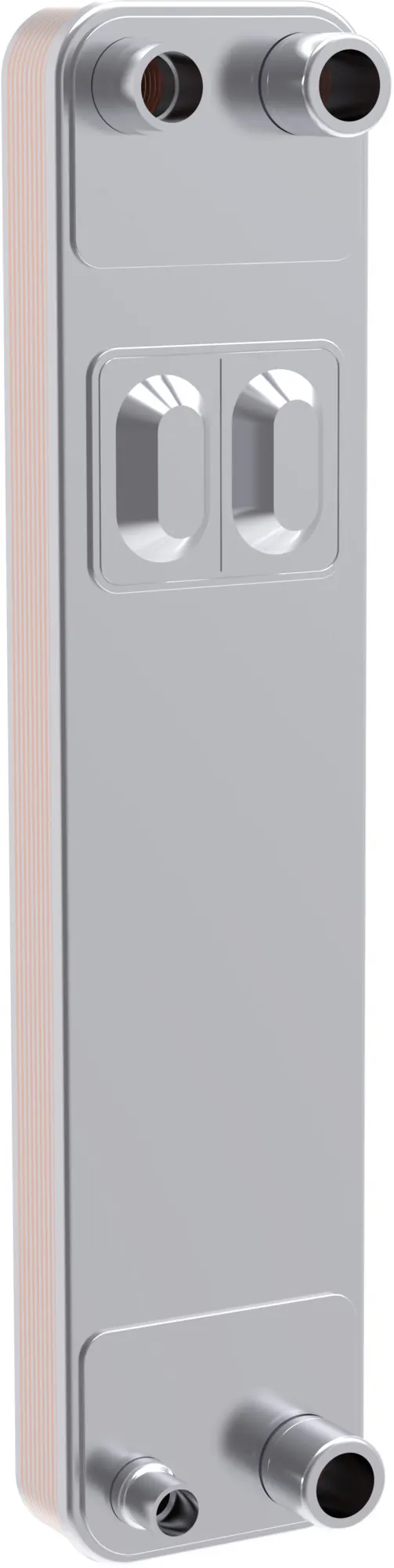

111B6859

Part Number: 111B6859
111B6859
Manufacturer
Danfoss
Part number
111B6859
Category

Product Information

Extended Description

111B6859 Danfoss: Max. Working Pressure [bar]: 45.0, Heat pump, Function: Evaporator, Brazing material: Copper brazing
Gross weight
16.45 Kilogram
Net weight
16.3 Kilogram
Volume
13.598 Liter
EAN
5702424686765
Application
Heat pump
Approval
AS,EAC,KRAIA,PED,UA,CRN,RoHS,UKCA,UL
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Stud
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Evaporator
Function note
With distributor
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
653 psi
Max. Working Pressure [bar]
45 bar
Model no.
62
Number of plates
90
Packing format
Single pack
PED category
II
Plate material no.
AISI 316L
Plate pattern
EZU
Product group
Heat exchangers
Product Name Description
Micro Plate heat exchanger
Q1 conn. size range
L1R
Q1 conn. type
G External thread connection
Q2 conn. size range
L1R
Q2 conn. type
G External thread connection
Q3 conn. size range
H1/2D
Q3 conn. type
Solder connection
Q4 conn. size range
H5/8A
Q4 conn. type
Solder connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R134a,R22,R245fa,R290,R404A,R407C,R410A,R444B,R448A,R449A,R450A,R452B,R454B,R454C,R455A,R507A,R513A,R515B,R1234ze,R454A
Type
MPHE H62L-EZU
Type designation
H62L-EZU
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger, type H62L-EZU GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Micro Plate heat exchanger, MPHE H62-EZU, Pic. P45-EU
