111B7738

Part Number: 111B7738
111B7738
Manufacturer
Danfoss
Part number
111B7738
Category

Product Information

Extended Description

111B7738 Danfoss: Max. Working Pressure [bar]: 45.0, Chiller, Function: Evaporator, Brazing material: Copper brazing
Gross weight
37.05 Kilogram
Net weight
36.9 Kilogram
Volume
0.292 Hectoliter
EAN
5715162793060
Application
Chiller
Approval
AS,CRN,EAC,KRAIA,PED,RoHS,UA,UKCA,UL
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Stud
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Evaporator
Function note
With distributor
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
653 psi
Max. Working Pressure [bar]
45 bar
Model no.
118
Number of plates
100
Packing format
Single pack
Plate material no.
AISI 316L
Plate pattern
Z
Product group
Heat exchangers
Product Name Description

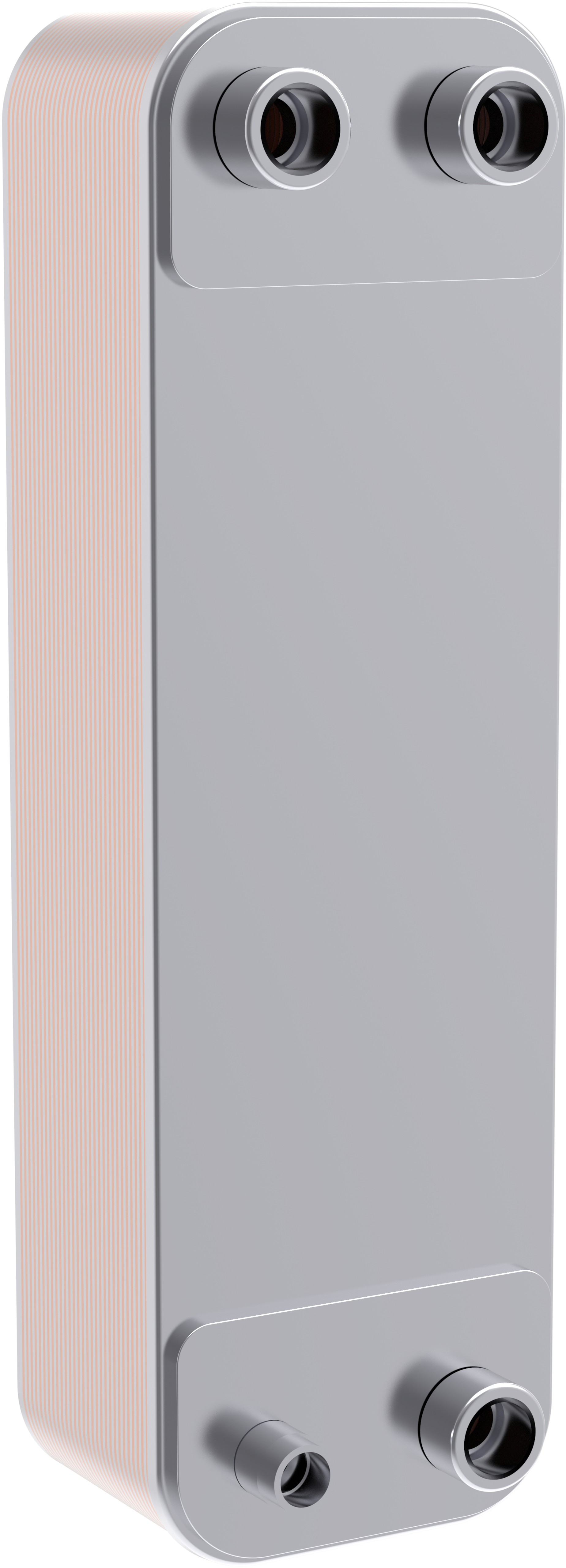

Micro Plate heat exchanger
Q1 conn. size range
H2"5/8
Q1 conn. type
Null
Q2 conn. size range
H2"5/8
Q2 conn. type
Null
Q3 conn. size range
H5/8A
Q3 conn. type
Solder connection
Q4 conn. size range
H1"3/8H
Q4 conn. type
Solder connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R134a,R22,R1234ze,R245fa,R290,R404A,R407C,R410A,R444B,R448A,R449A,R450A,R452B,R454A,R454B,R454C,R455A,R507A,R513A,R515B
Type
MPHE C118L-EZ
Type designation
C118L-EZ
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger, type C118L-EZ and C118L-EZ-F GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Brazed plate heat exchanger_MPHE_Pic. R45
